2.8L CEC Tests W/Codes
›
System Performance Check
System Performance Check

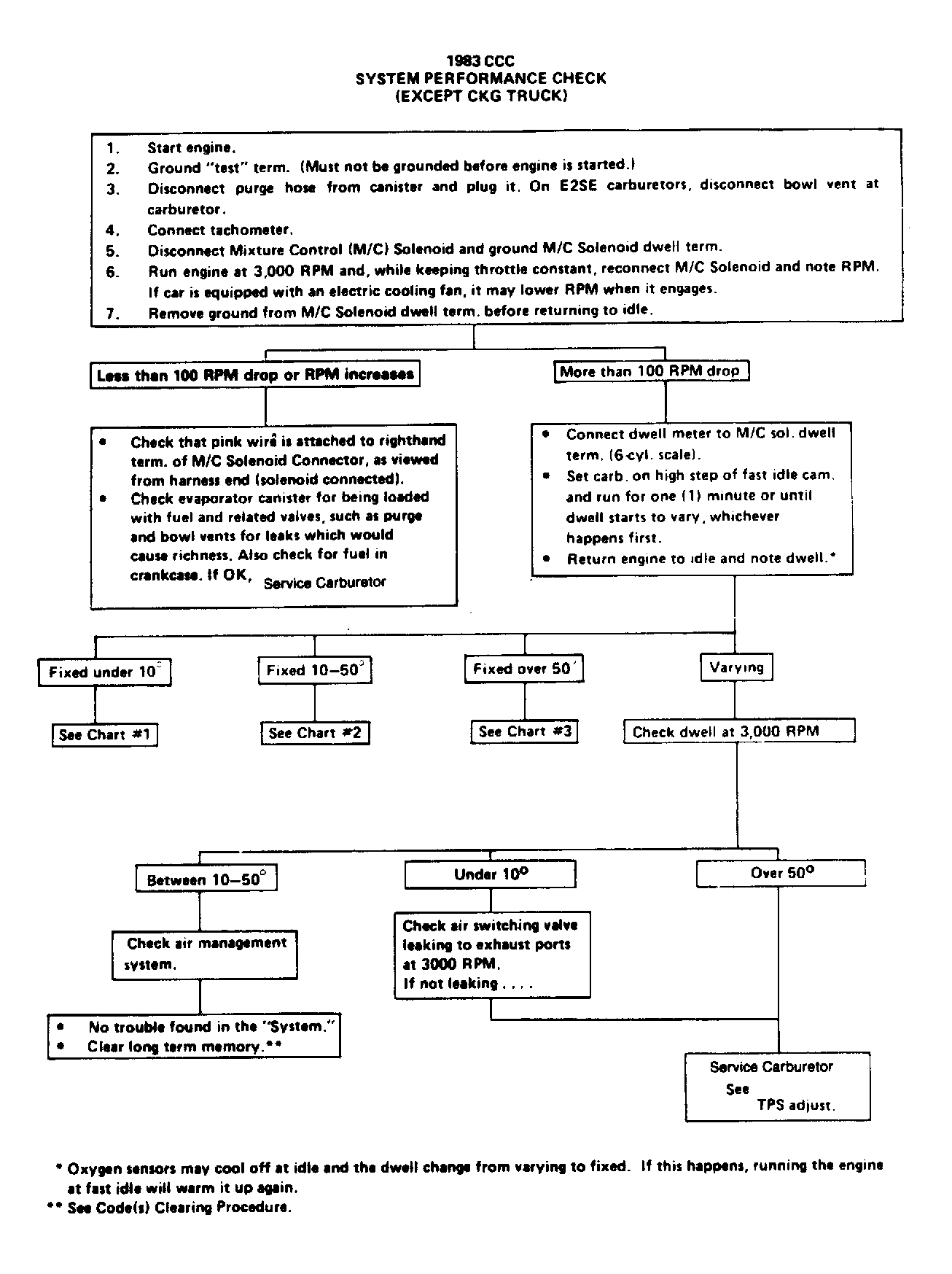

Fig 1: System Performance Check
