Feedback Carburetor Tests W/Codes
›
ECM Terminal Id
ECM Terminal Id

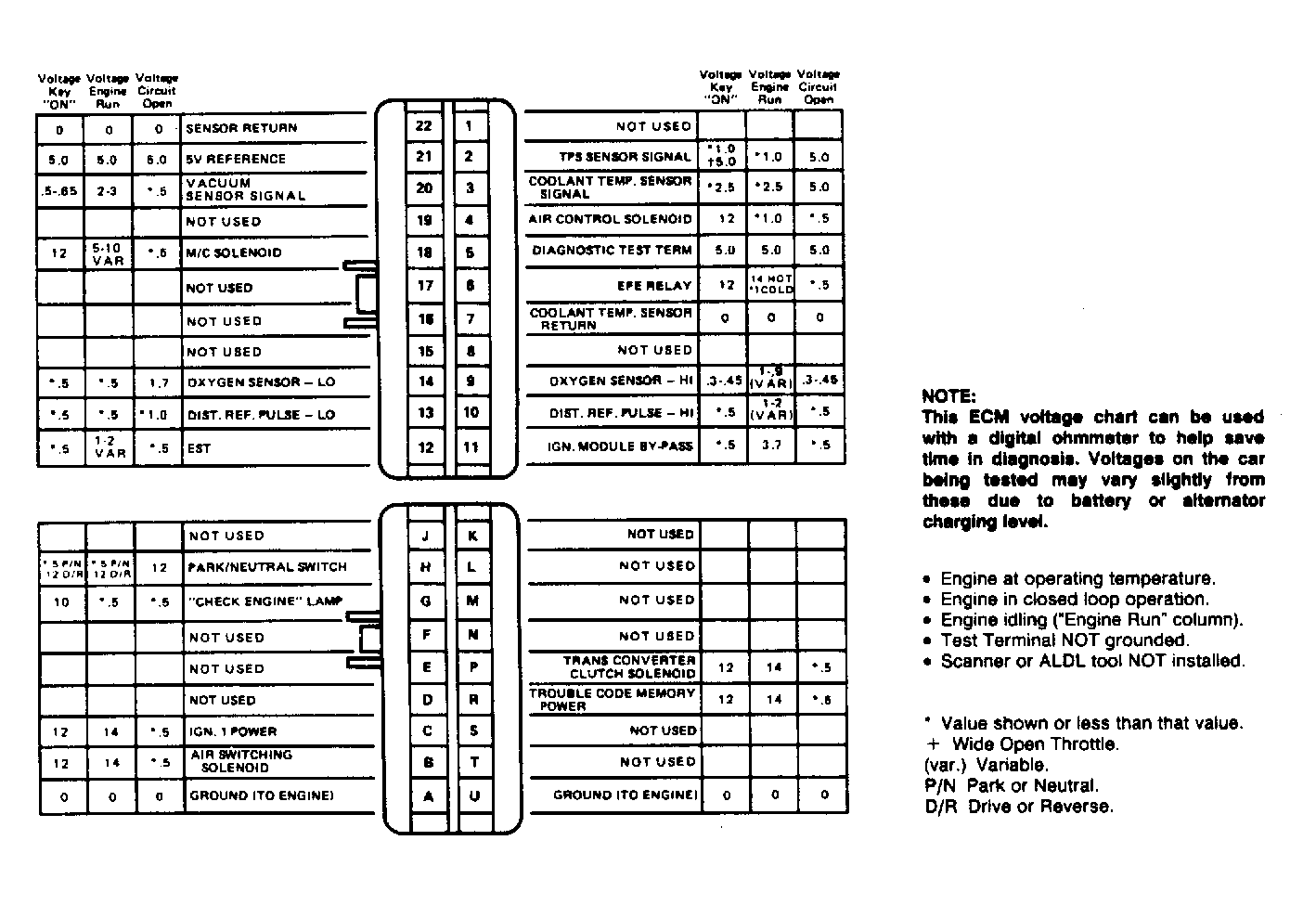

Fig 1: ECM Terminal Identification & Voltage - 2.8L Engine

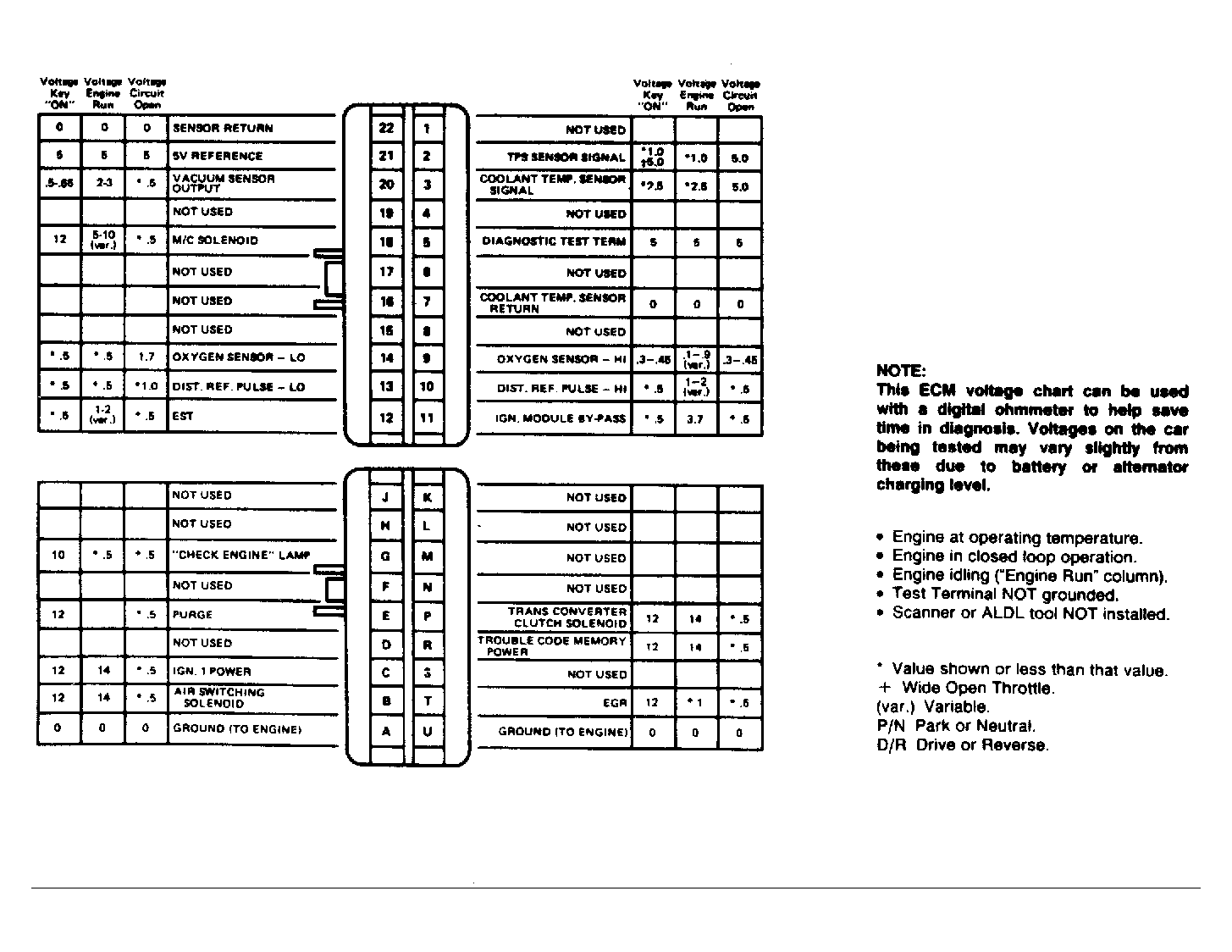

Fig 2: ECM Terminal Identification & Voltage - 4.1L Engine

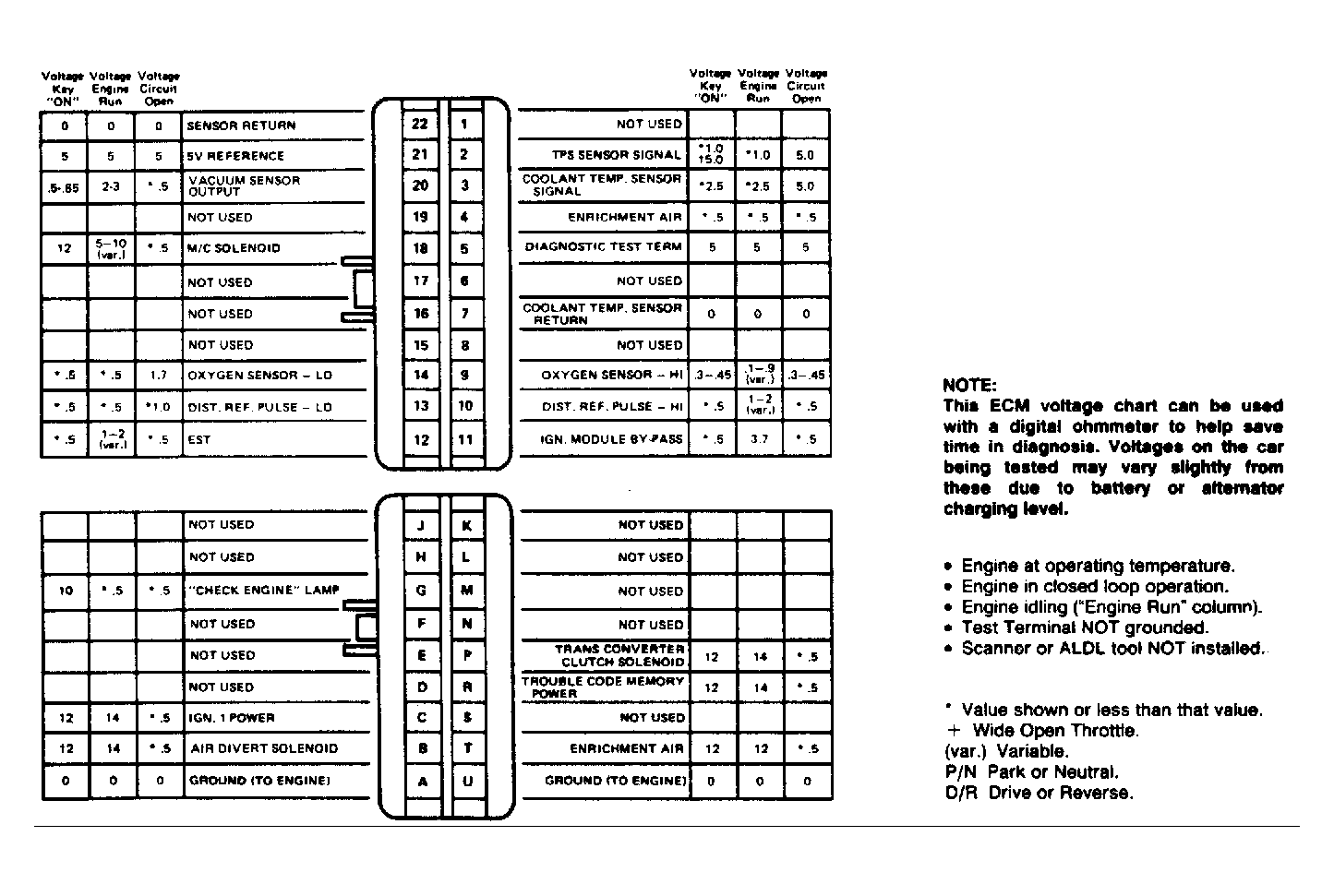

Fig 3: ECM Terminal Identification & Voltage - 5.0L & 5.7L Engines
