Code 13, Open Oxygen Sensor Circuit

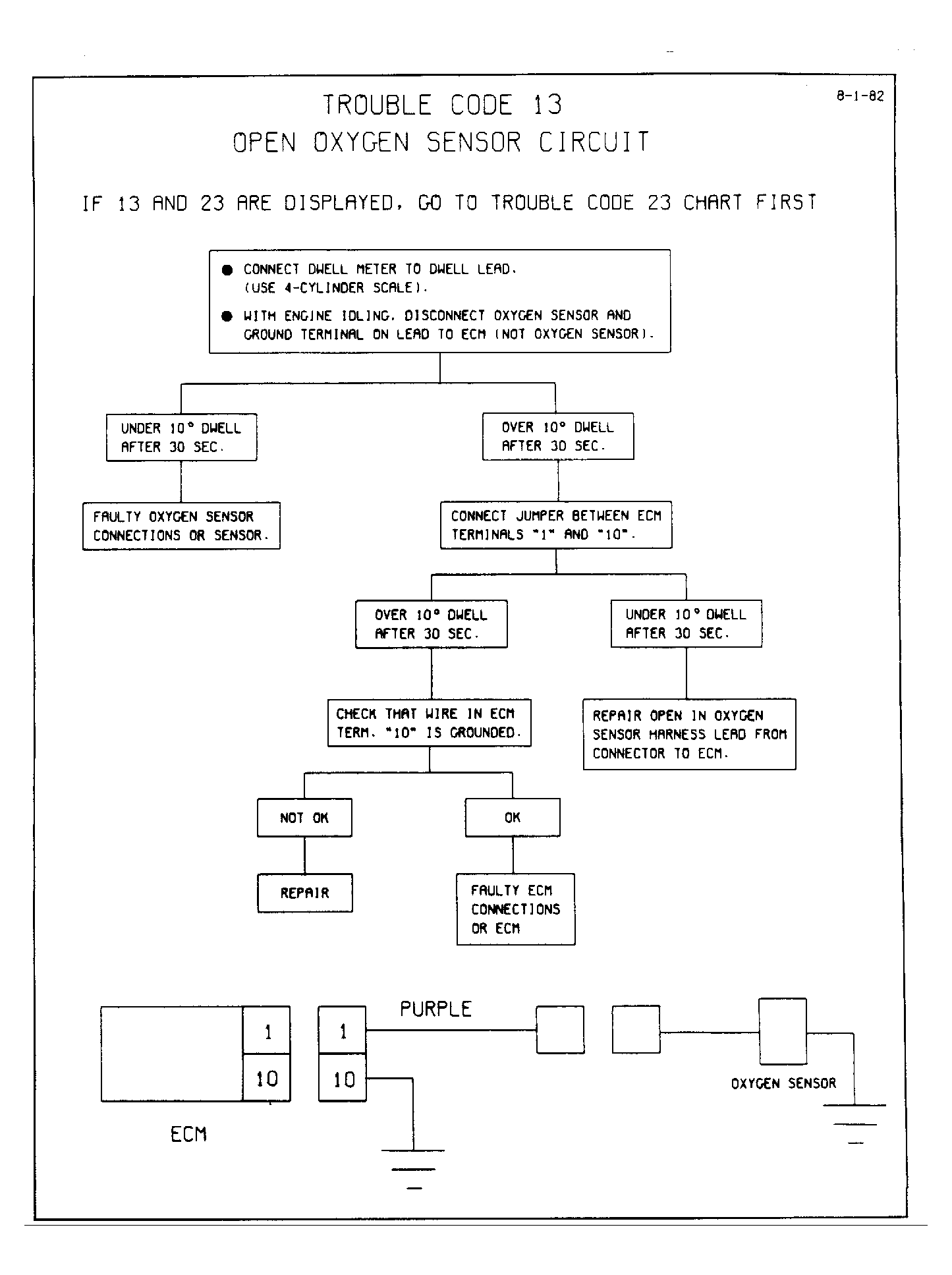

Fig 1: Code 13, Open Oxygen Sensor Circuit

G9415

Fig 2: Code 13, Open Oxygen Sensor Circuit

GB0020804
