Code 14, Shorted Coolant Sensor Circuit

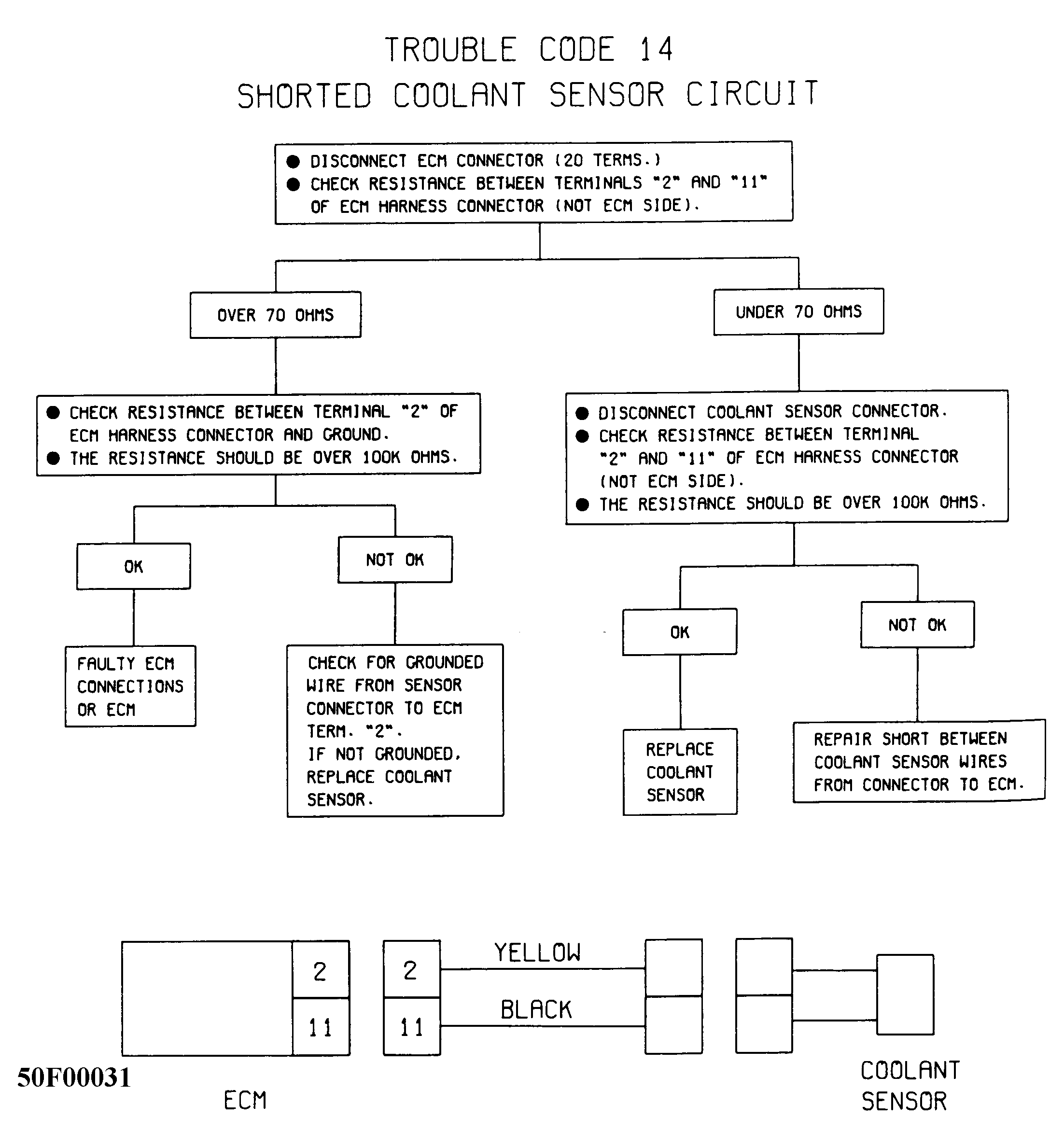

Fig 1: Code 14, Shorted Coolant Sensor Circuit

G50F00031

Fig 2: Code 14, Shorted Coolant Sensor Circuit

GB0020805
