Chart C2F - TPS Enrichment Check

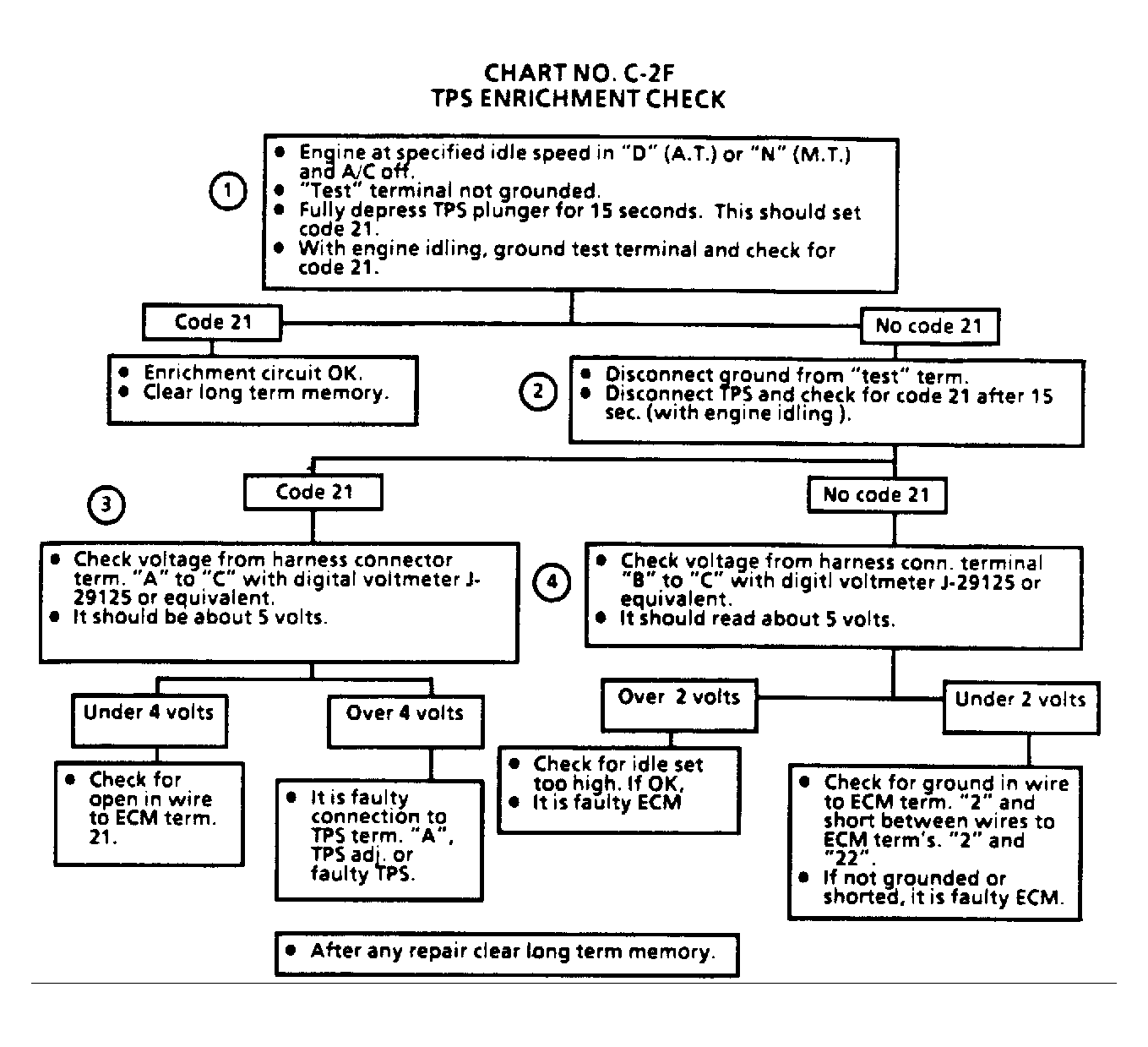

Fig 1: Flow Chart C2F - TPS Enrichment Check

G6503

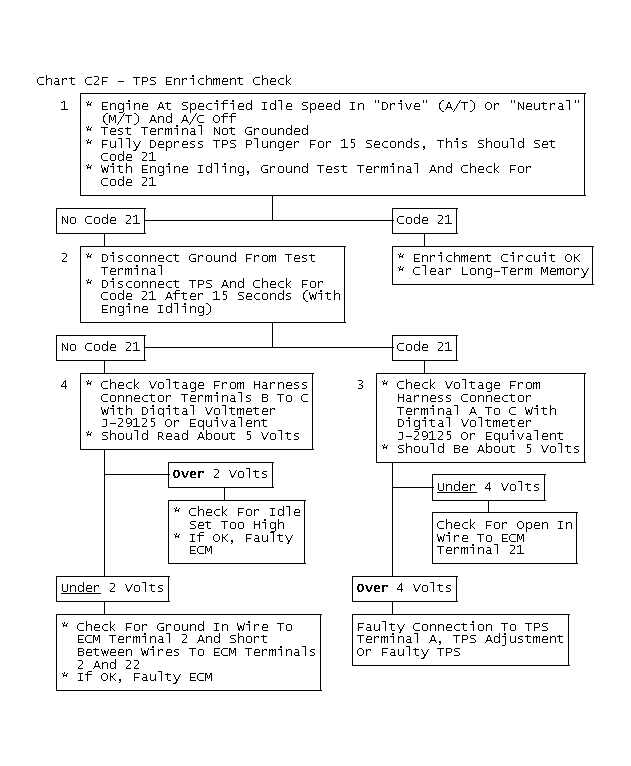

Fig 2: Flow Chart C2F - TPS Enrichment Check

GB0048269
