Float Level

Remove air horn and gasket. Remove power piston, metering rod assembly and float bowl insert.
Attach Float Measuring Gauge (J-34817-1) to float bowl. Place Float Weight (J-34817-3) in base with contact pin against outer edge of float lever.

NOTE: Use special tools on GM models, only.

Measure float level from top of casting to a point 3/16" from large end of float. See Fig 1. Adjust float level if more than 1/16" from specification.
Ajust level by bending float lever with Bender (J-34817-25). Remove tool.
Check float level. Repeat procedure as needed until correct level is obtained.

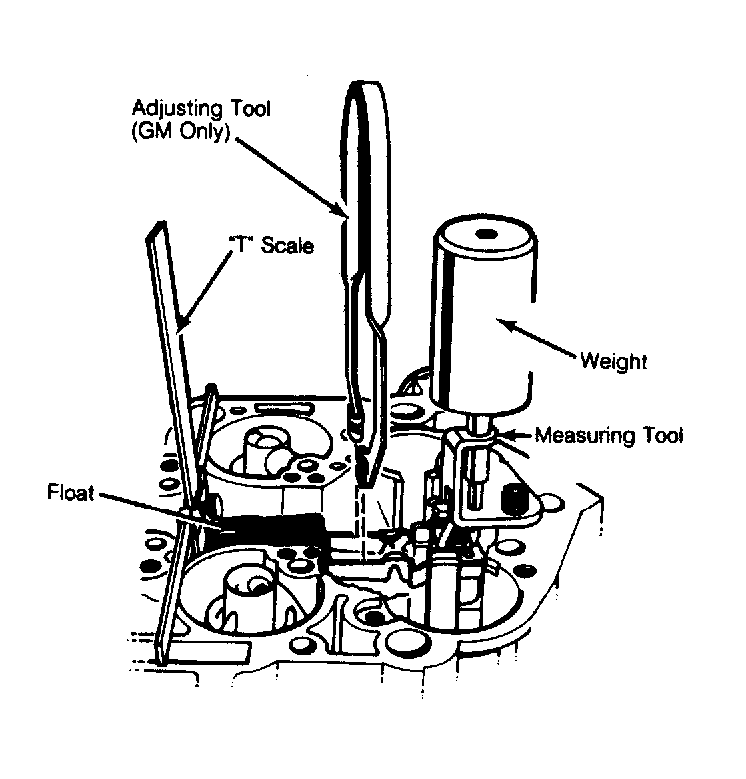

Fig 1: Float Level Adjustment
