Thermo Switch

Continuity should exist when switch temperature is lower than 117-127°F (47-53°C). No continuity should exist when above 127°F (53°C). If switch does not operate properly, replace it.

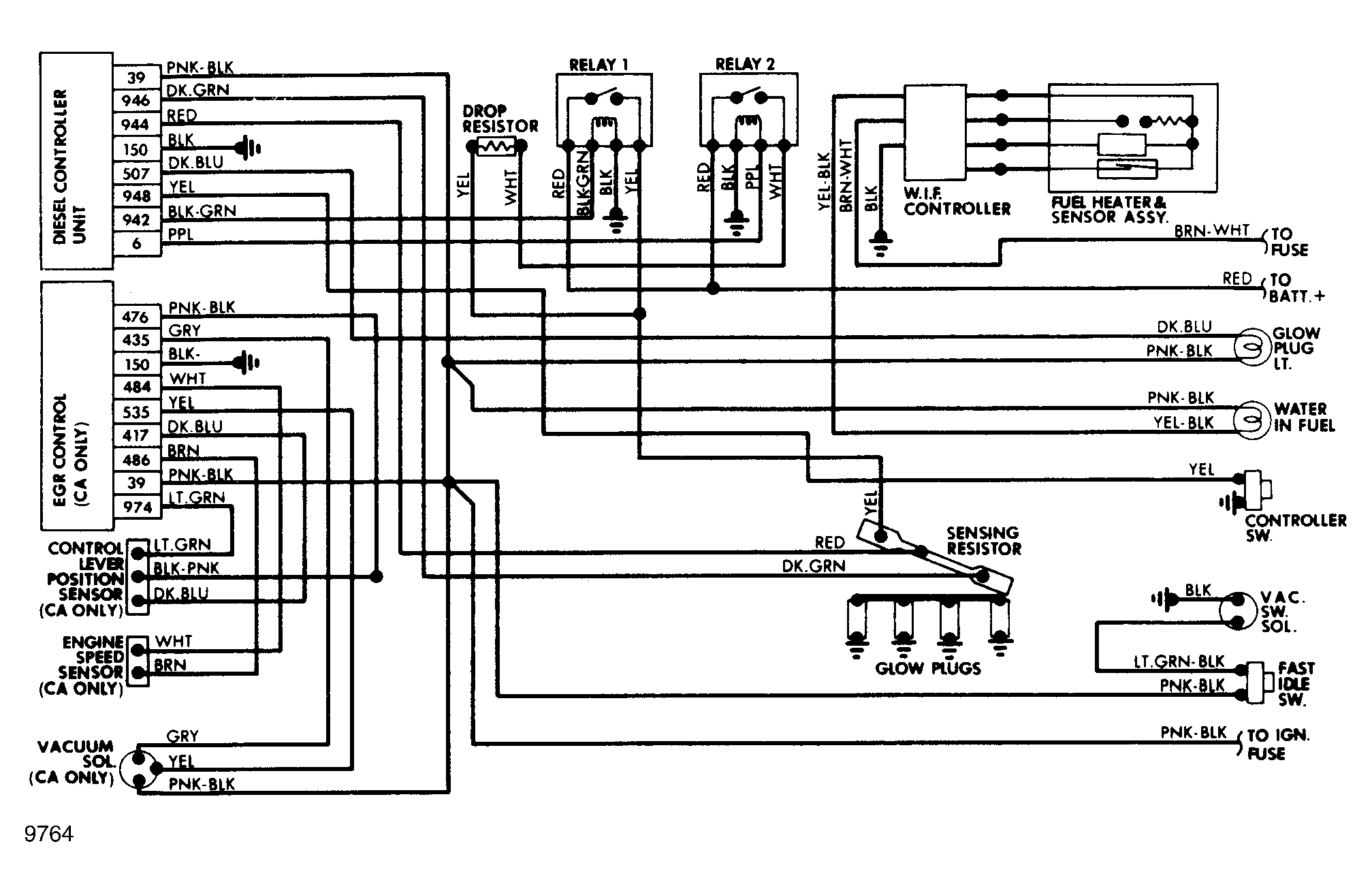

Fig 1: Glow Plug System Wiring Diagram
G9764
