Test Description
NOTE:

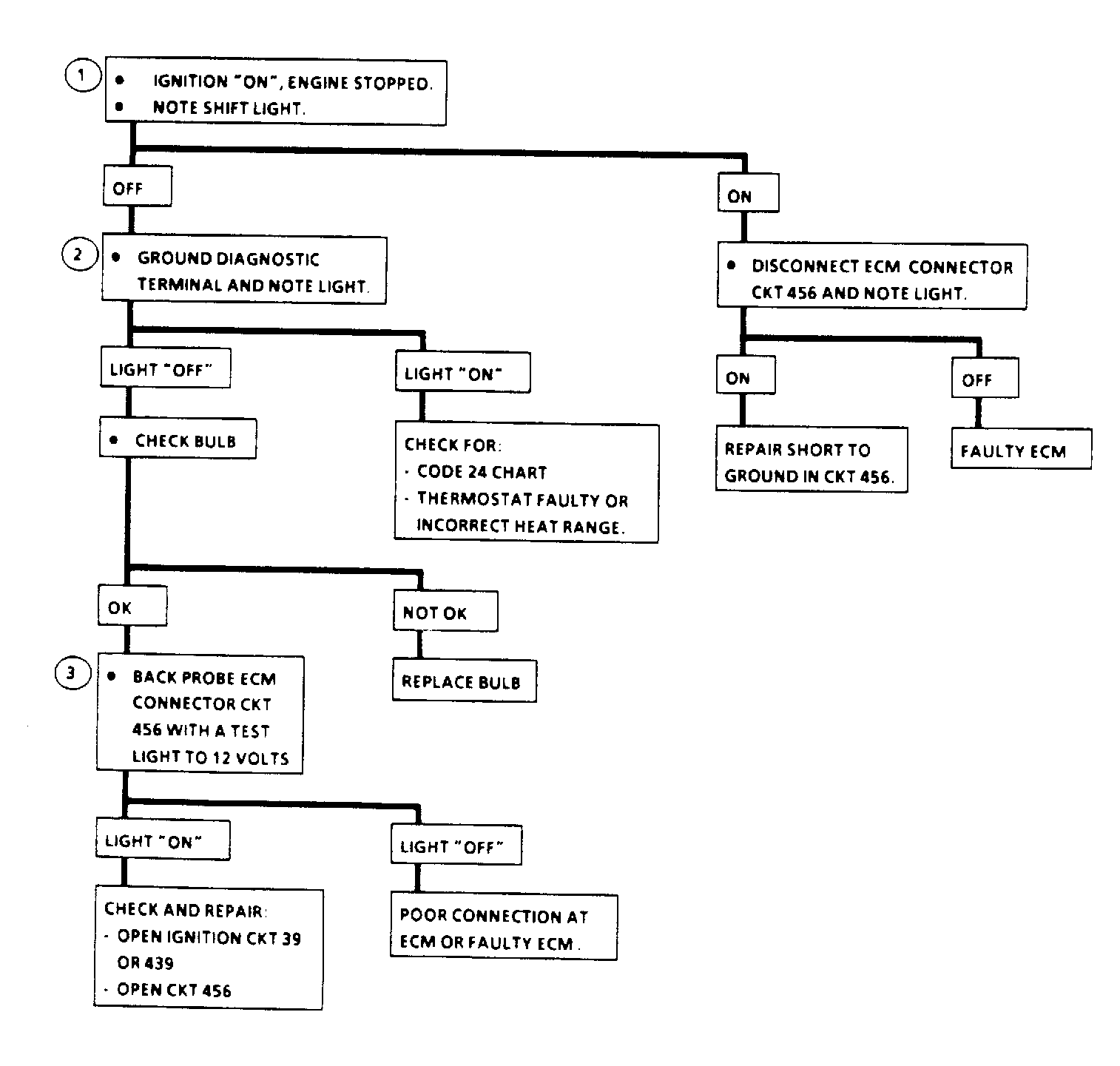

Test numbers refer to test numbers on diagnostic chart.

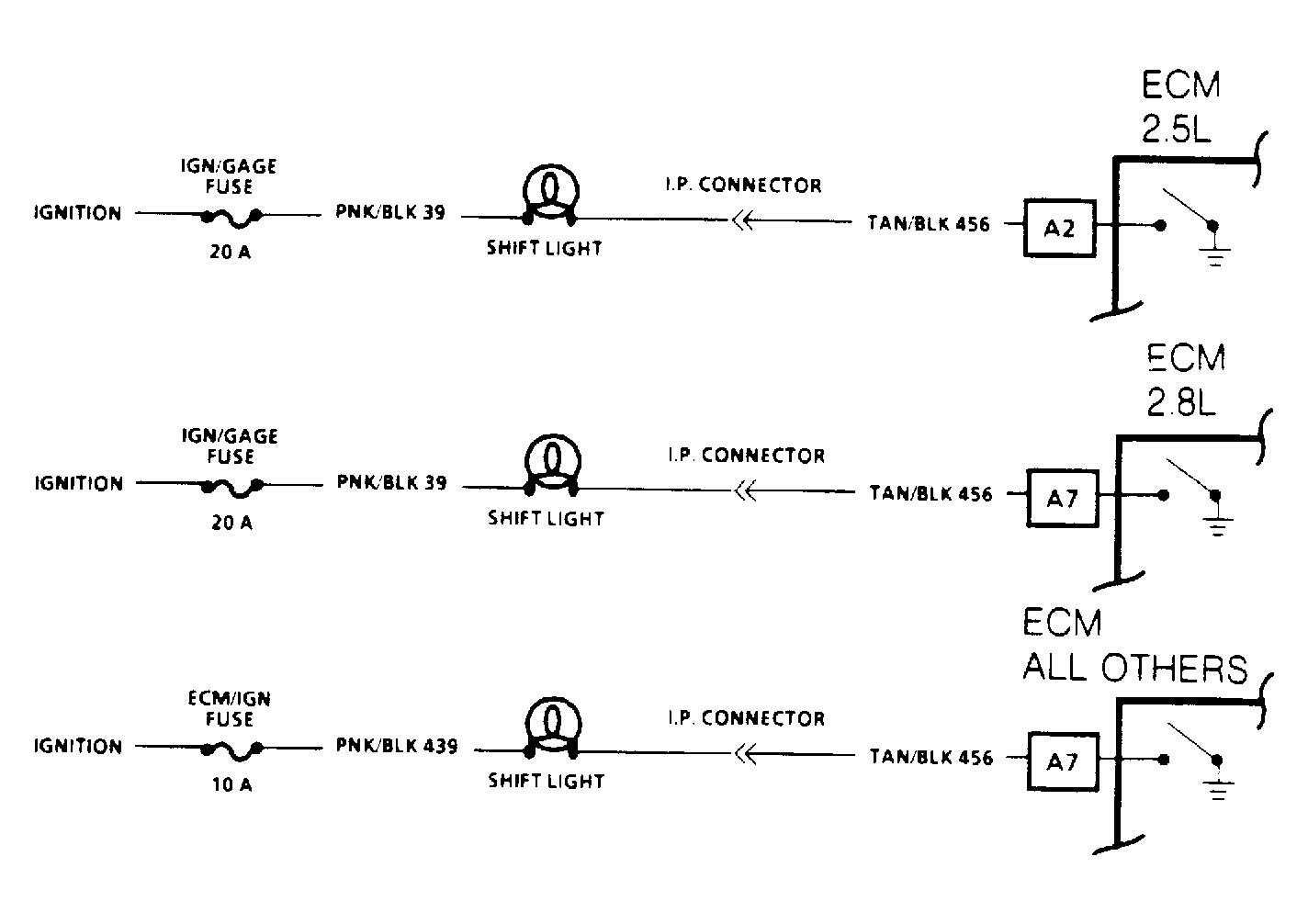

- This should not turn the shift light on. If light is on, there is a short to ground in circuit No. 456 wiring, or a fault in the ECM.
- This should turn shift light on.
- This check for an open in the shift light circuit, or a faulty ECM.
