Fuse Panel Identification

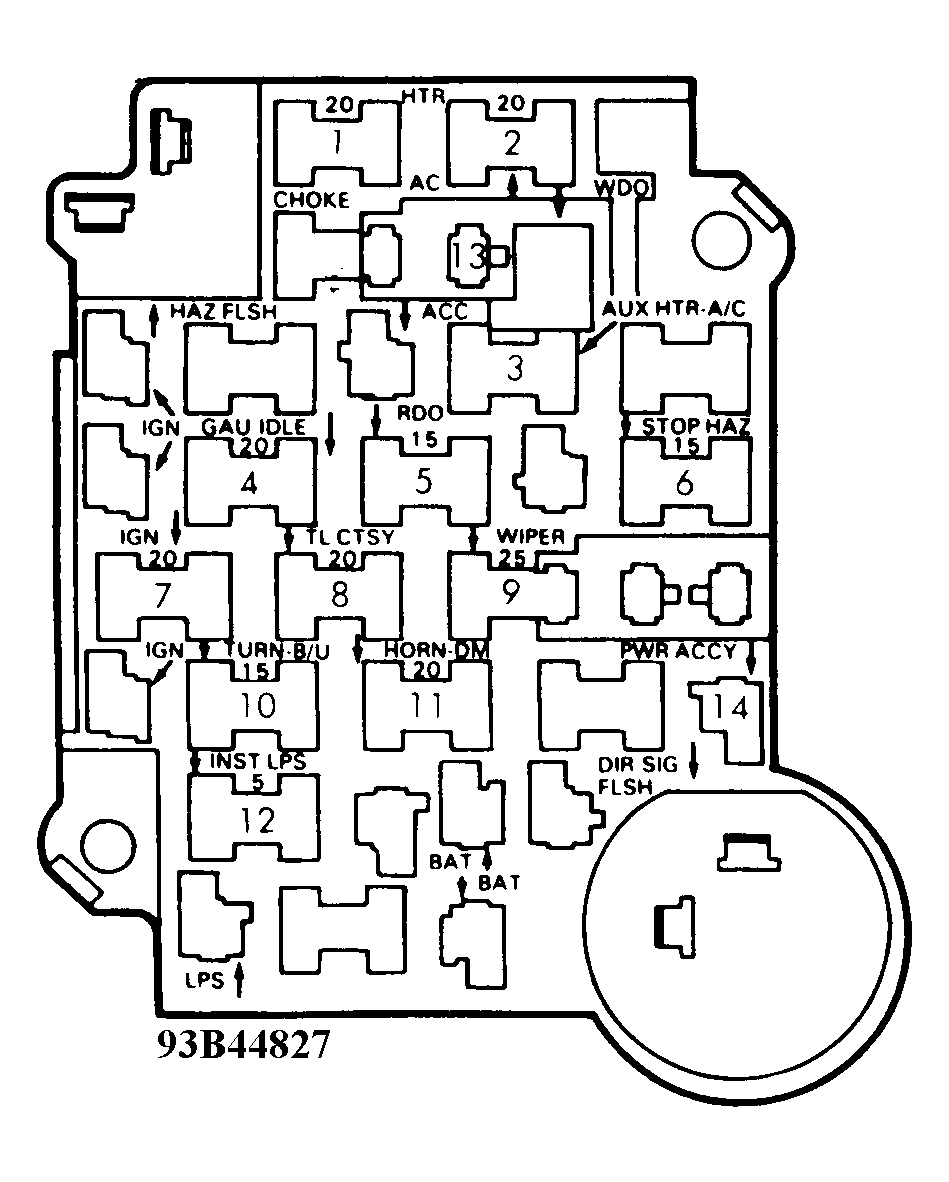

Fig 1: Fuse Panel Identification (1985-87)
G93B44827Courtesy of GENERAL MOTORS CORP.
