Forward Control 6.2 J, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System - HEI/Est/ESC
›
Wiring Diagrams
Wiring Diagrams

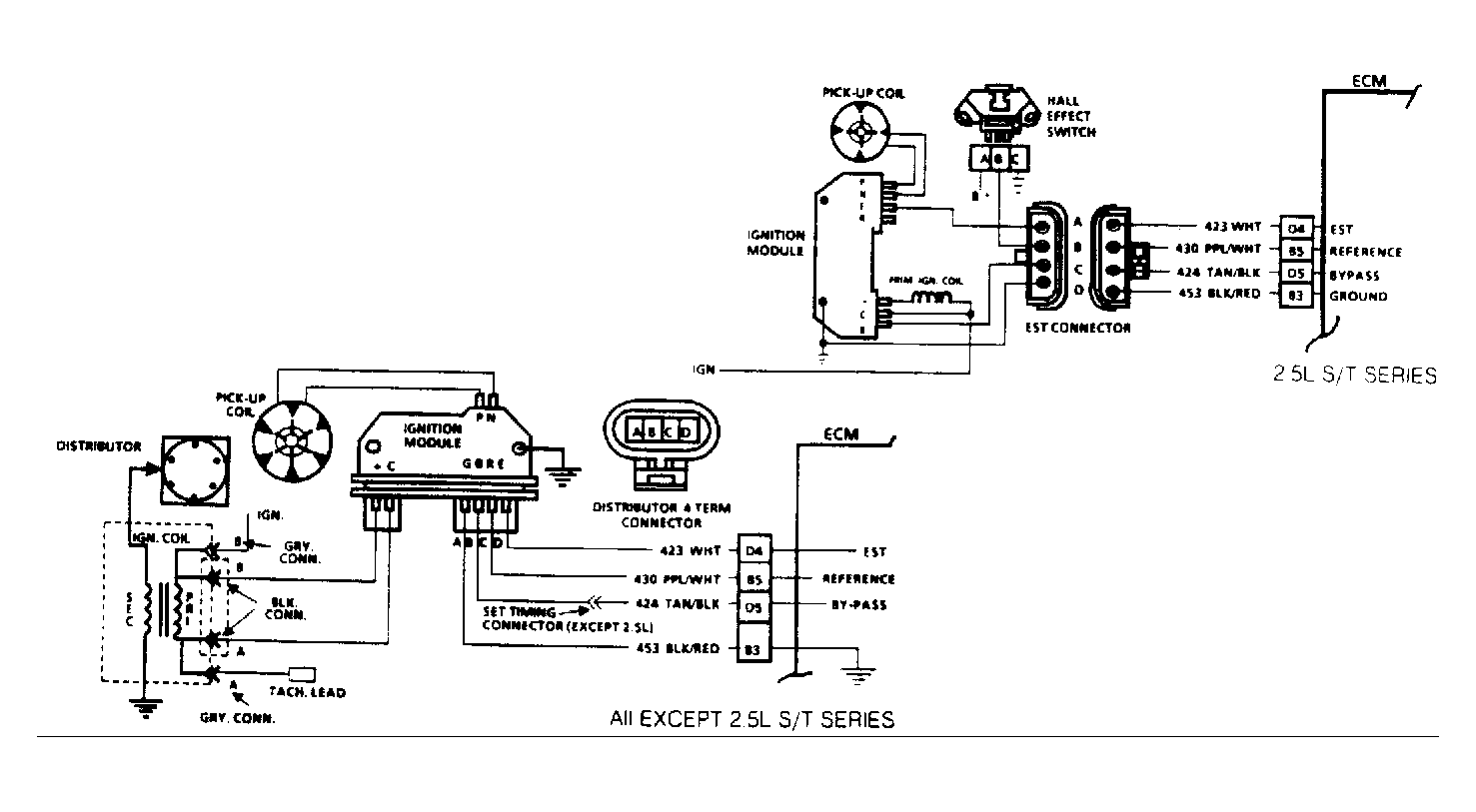

Fig 1: HEI/EST Ignition System Wiring Diagram (Includes Hall Effect Variant On 2.5L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
