Air Injection System
›
"Service Eng Soon" Test
›
7.4L "Service Engine Soon" Light Illuminated Flow Chart
7.4L "Service Engine Soon" Light Illuminated Flow Chart

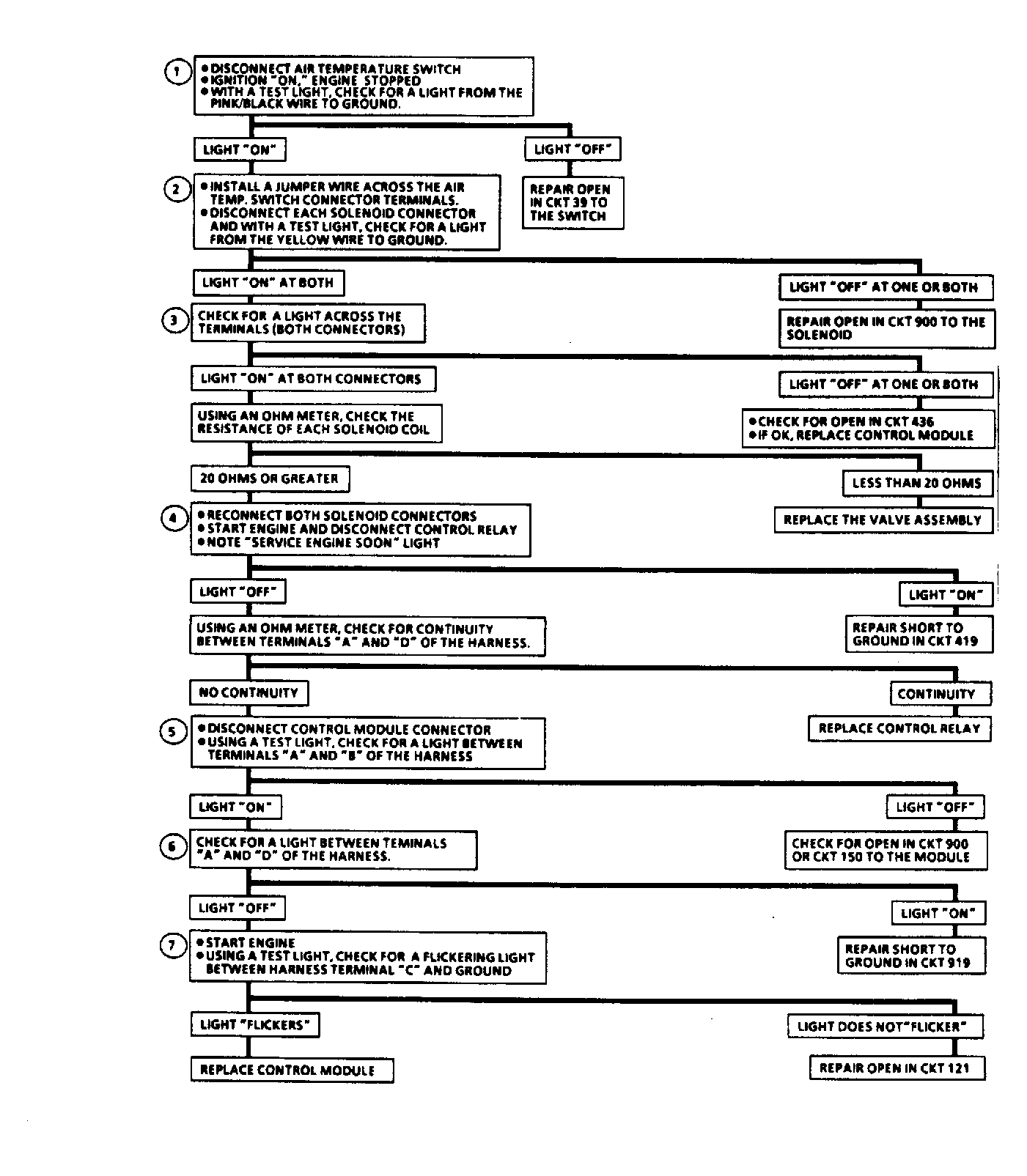

Fig 1: "SERVICE ENGINE SOON" Light Illuminated 7.4L Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
