Wiring Diagrams

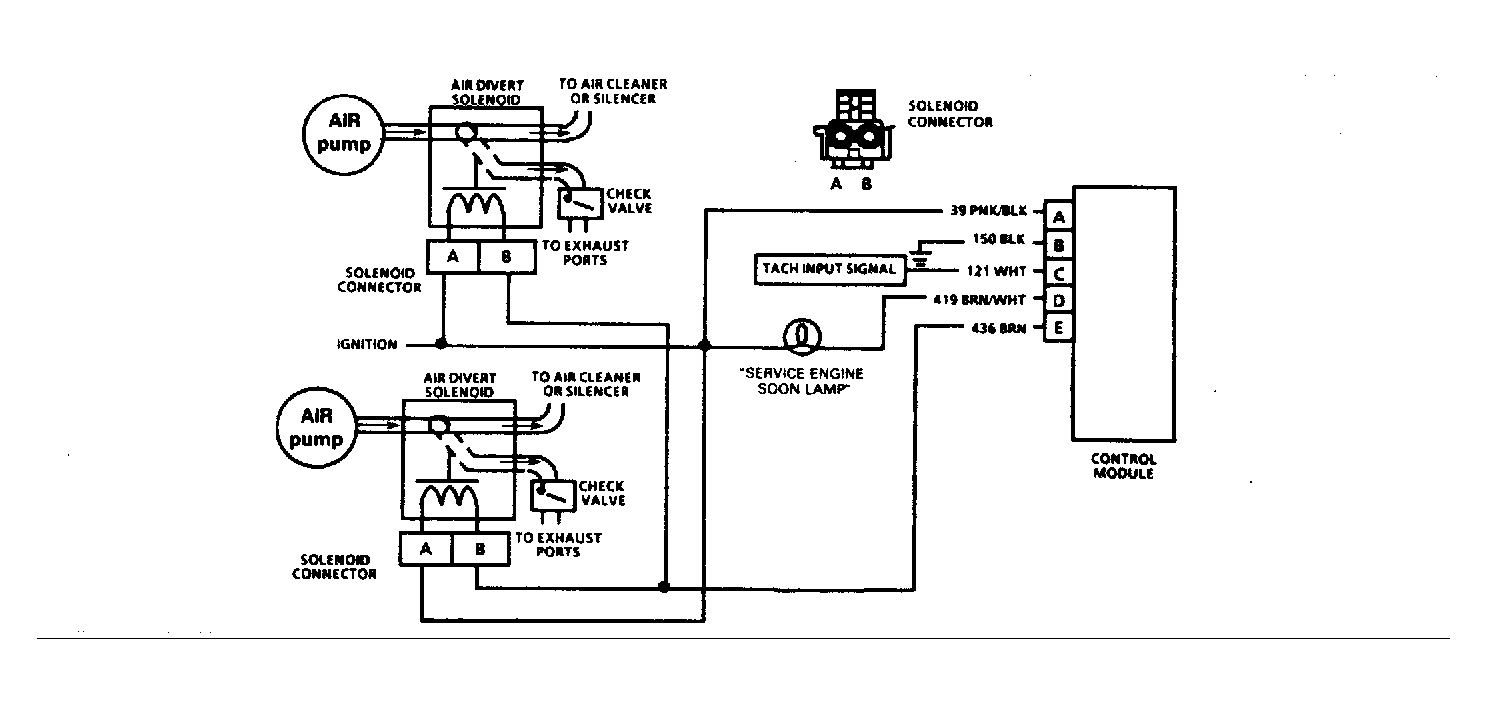

Fig 1: Air Injection System Wiring Diagram (Carbureted 4.8L)
Courtesy of GENERAL MOTORS CORP.

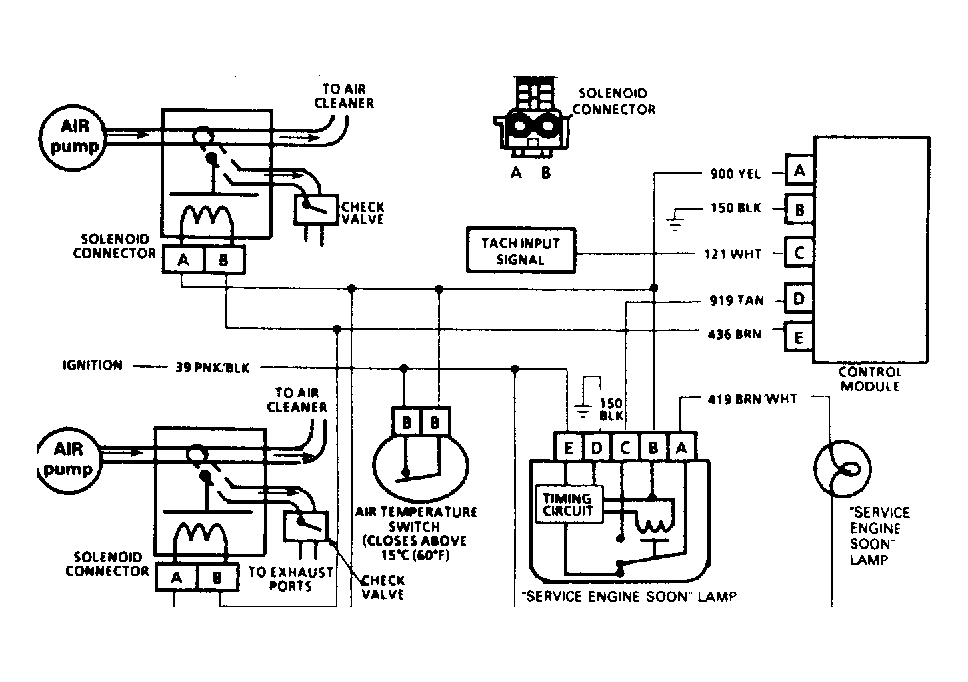

Fig 2: Air Injection System Wiring Diagram (Carbureted 5.7L)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Air Injection System Wiring Diagram (Carbureted 7.4L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
