GMC
›
1989
›
Forward Control 7.4 W, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
CCC TBI Tests W/Codes
›
Diagnostic Charts
›
ECM QDR (Quad-Driver) Check
ECM QDR (Quad-Driver) Check

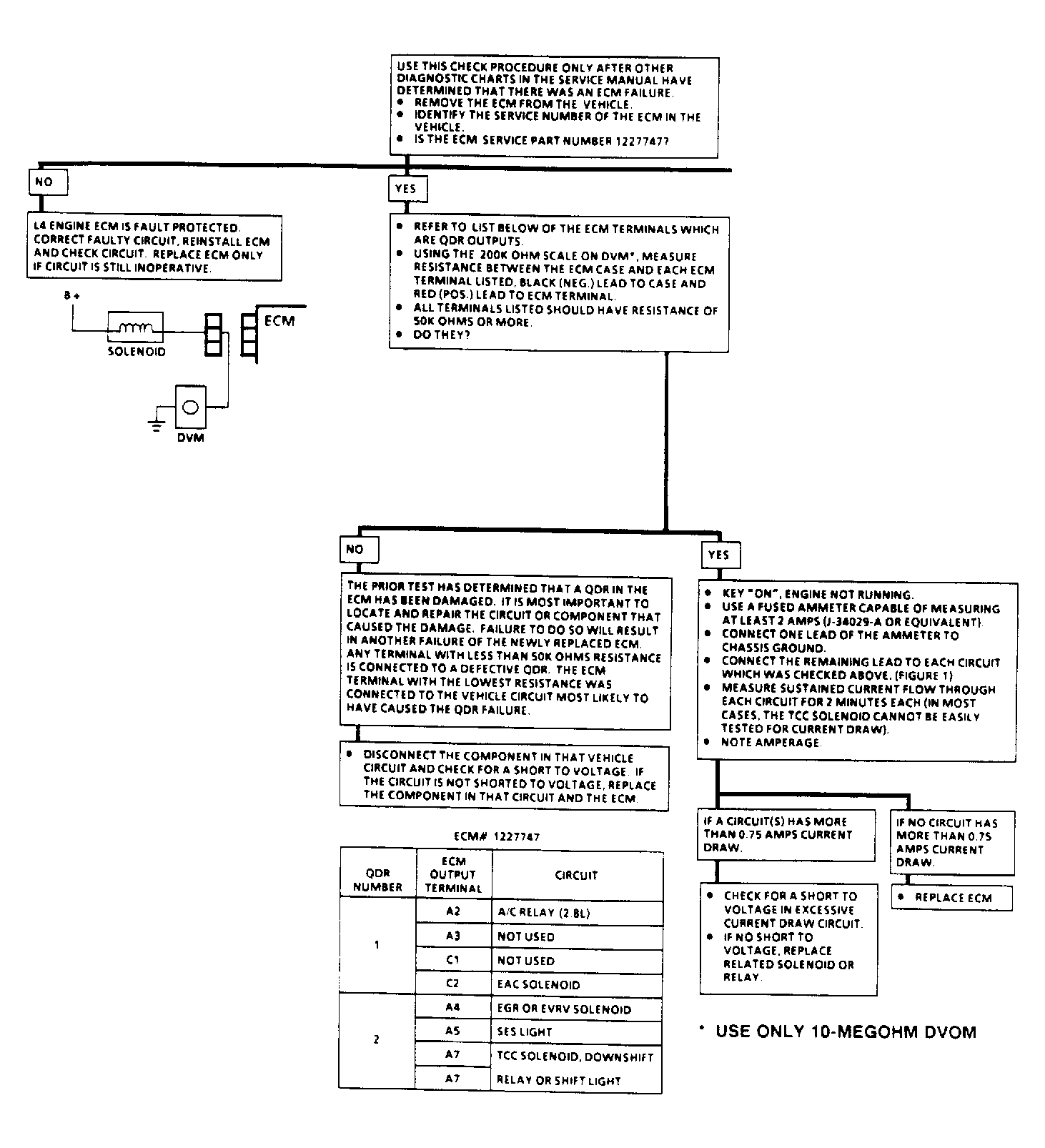

Fig 1: ECM QDR (Quad-Driver) Check
