Wiring Diagrams

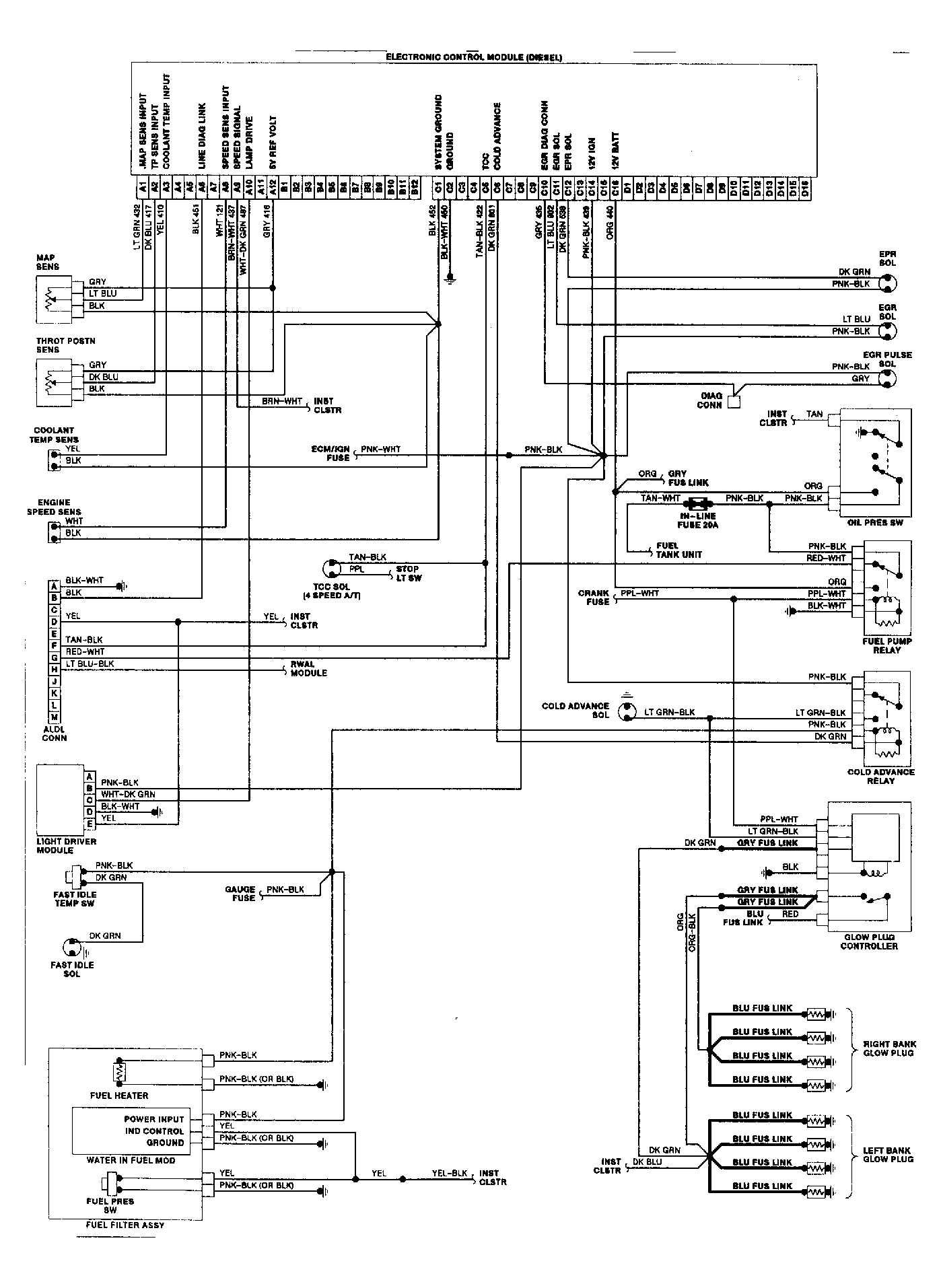

Fig 1: 6.2L Diesel Electronic Control System Wiring Diagram ("C/K" Series)

G120910

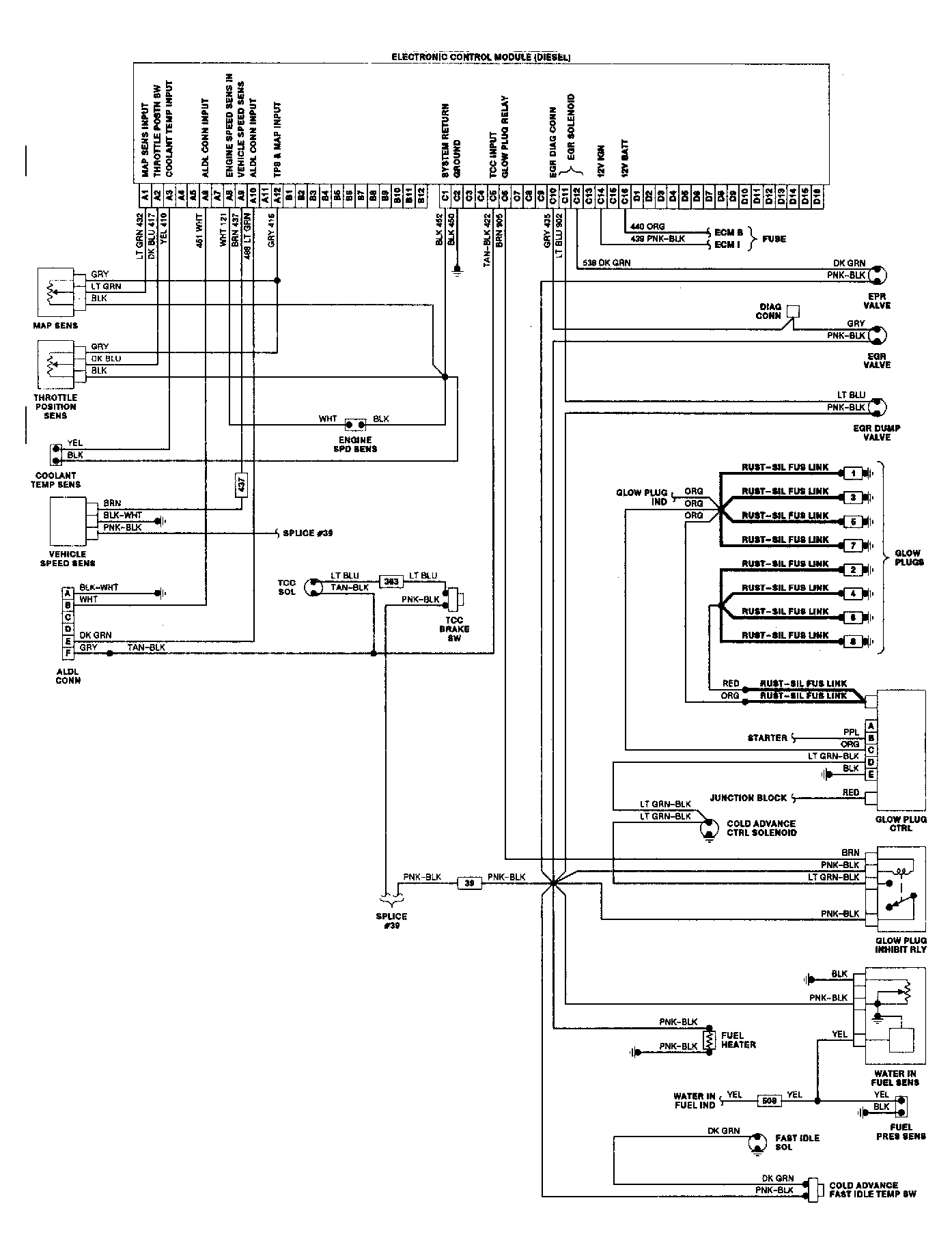

Fig 2: 6.2L Diesel Electronic Control System Wiring Diagram ("G" Series)

G120911

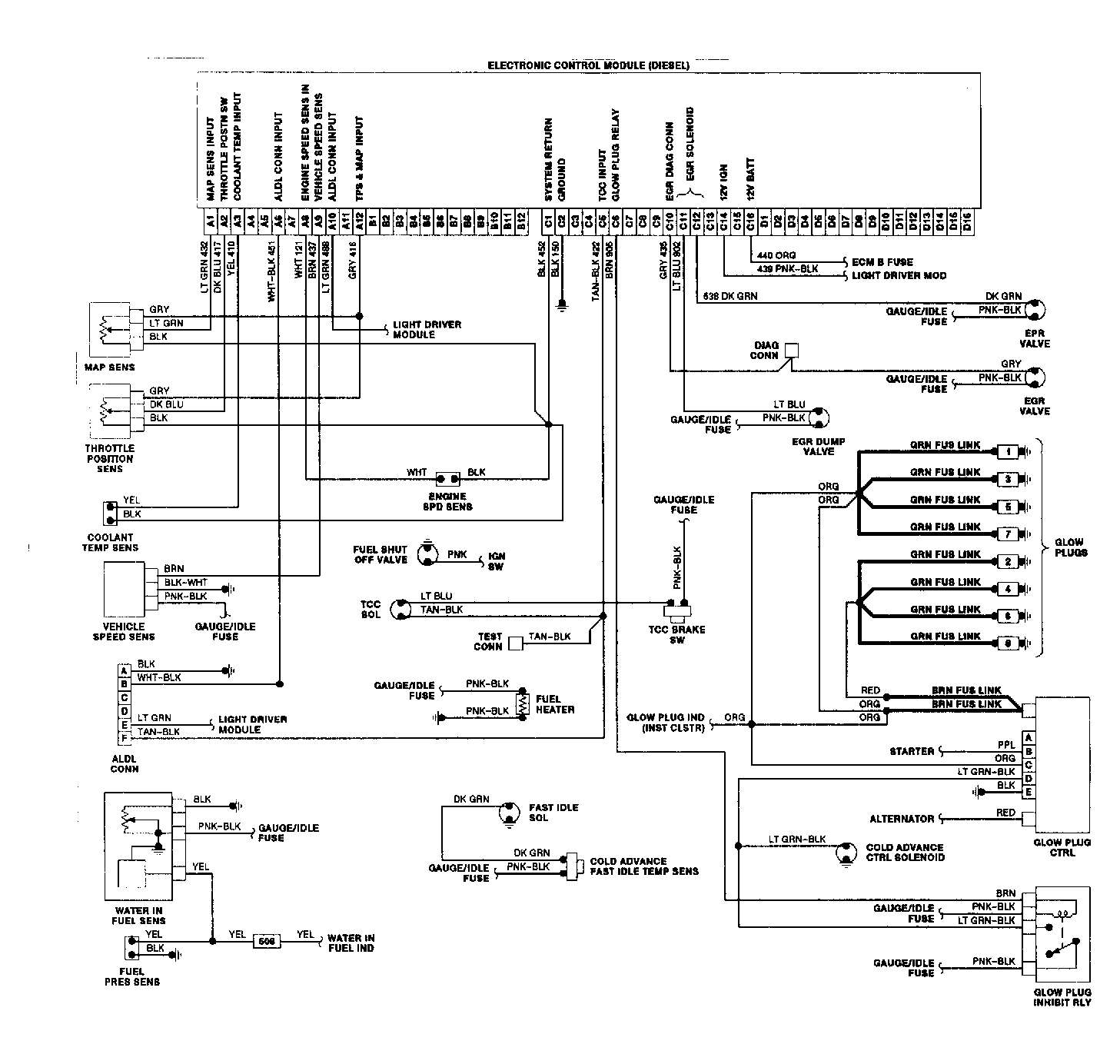

Fig 3: 6.2L Diesel Electronic Control System Wiring Diagram ("R/V" Series)

G120912
