Diagnostic Aids

A vacuum leak may cause a Code 32. Check all vacuum hoses and components connected to vacuum hoses for leaks. Also check cruise control and A/C systems vacuum hoses and components.

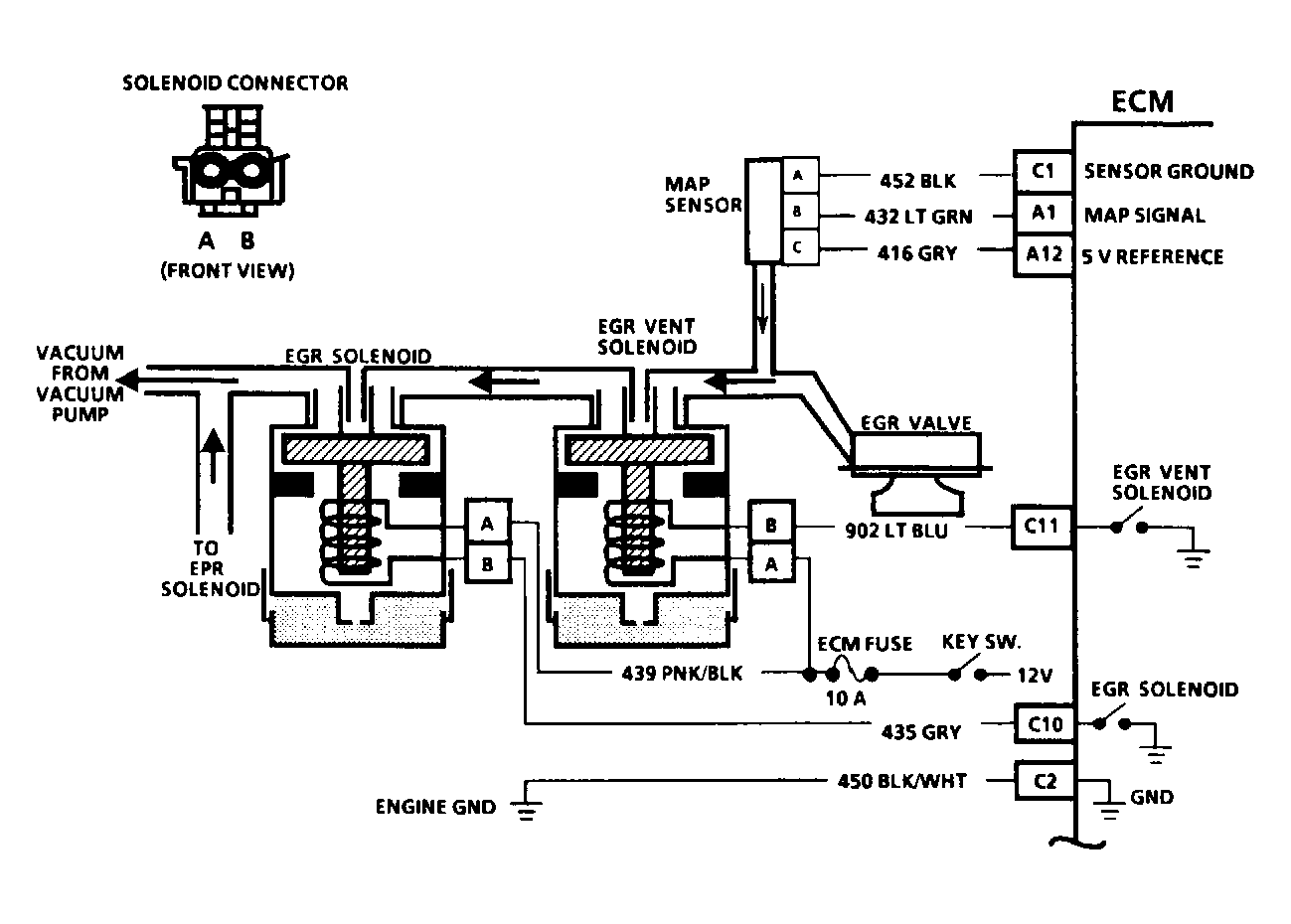

Fig 1: Code 32: Circuit Diagram EGR Circuit Loop Error

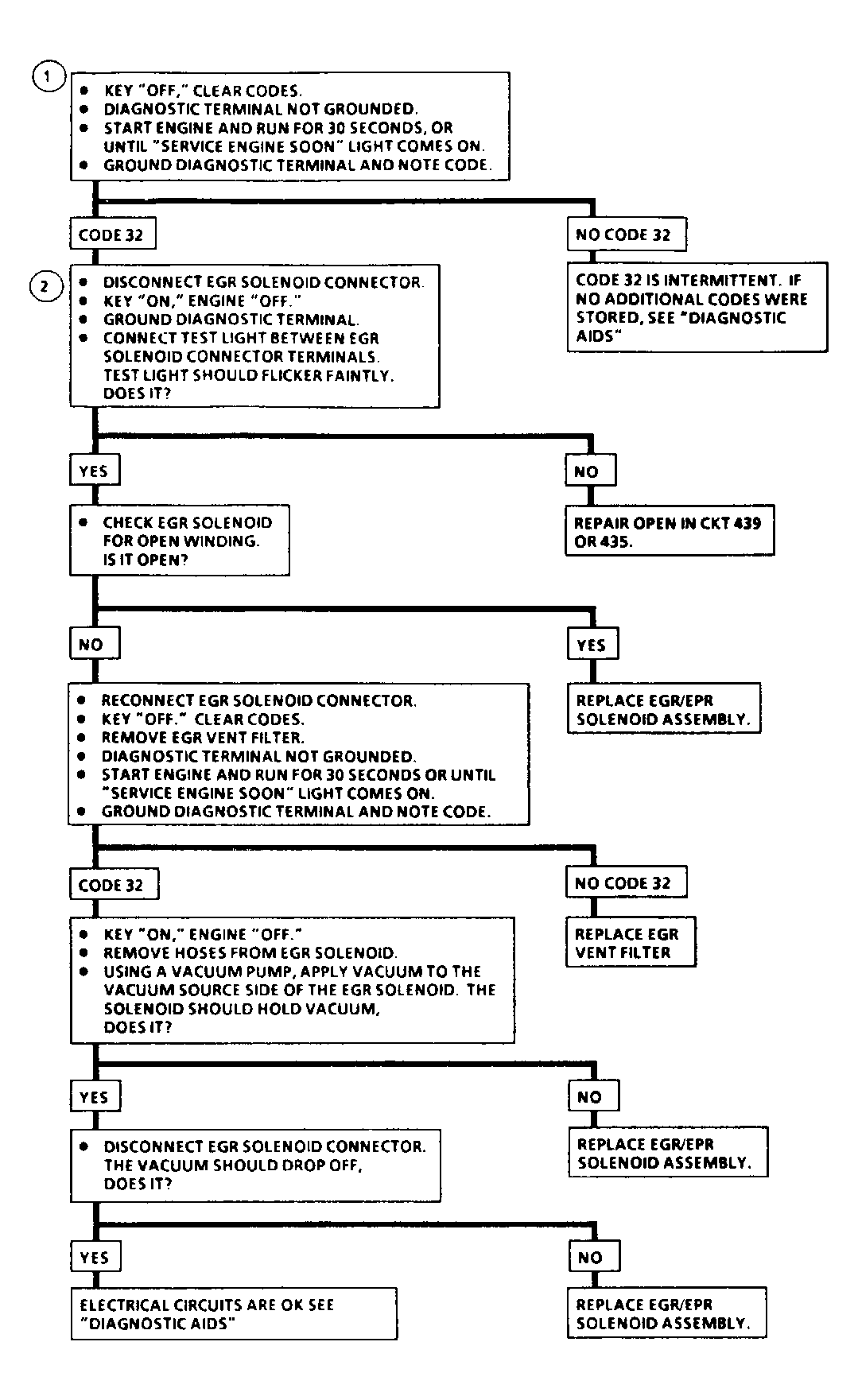

Fig 2: Code 32: Flow Chart EGR Circuit Loop Error
