Wiring Diagrams

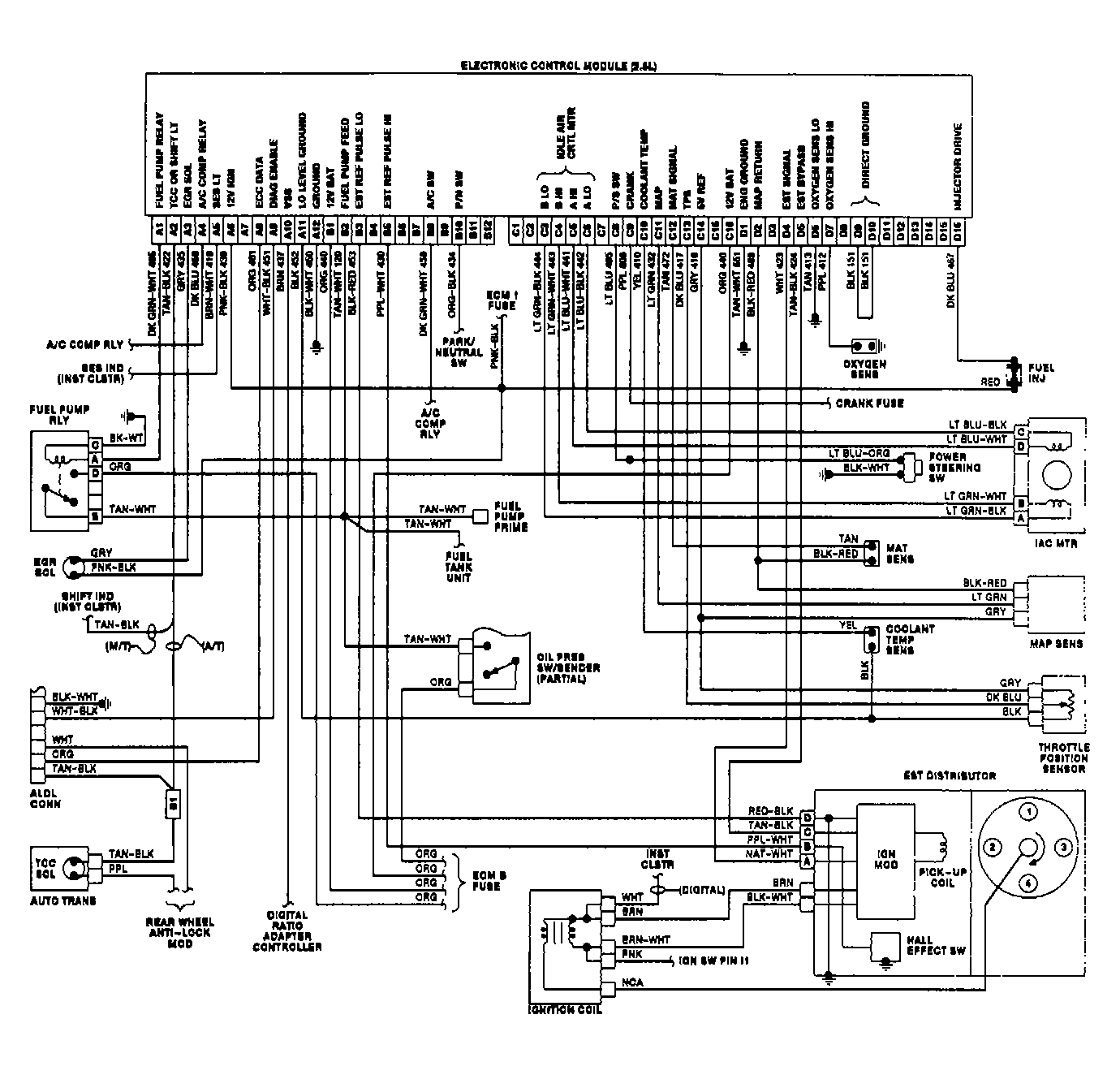

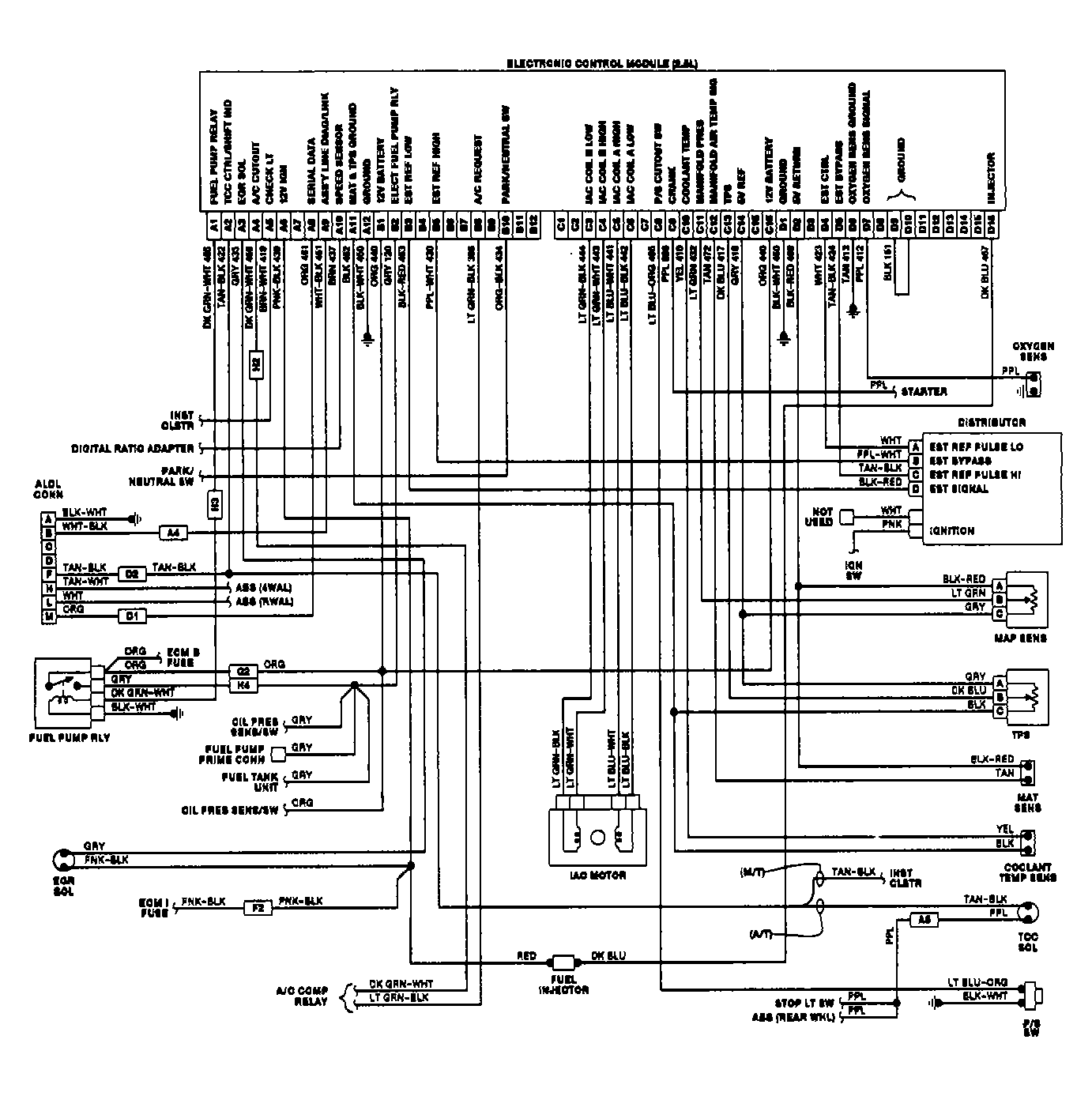

Fig 1: Astro/Safari 2.5L Wiring Diagram

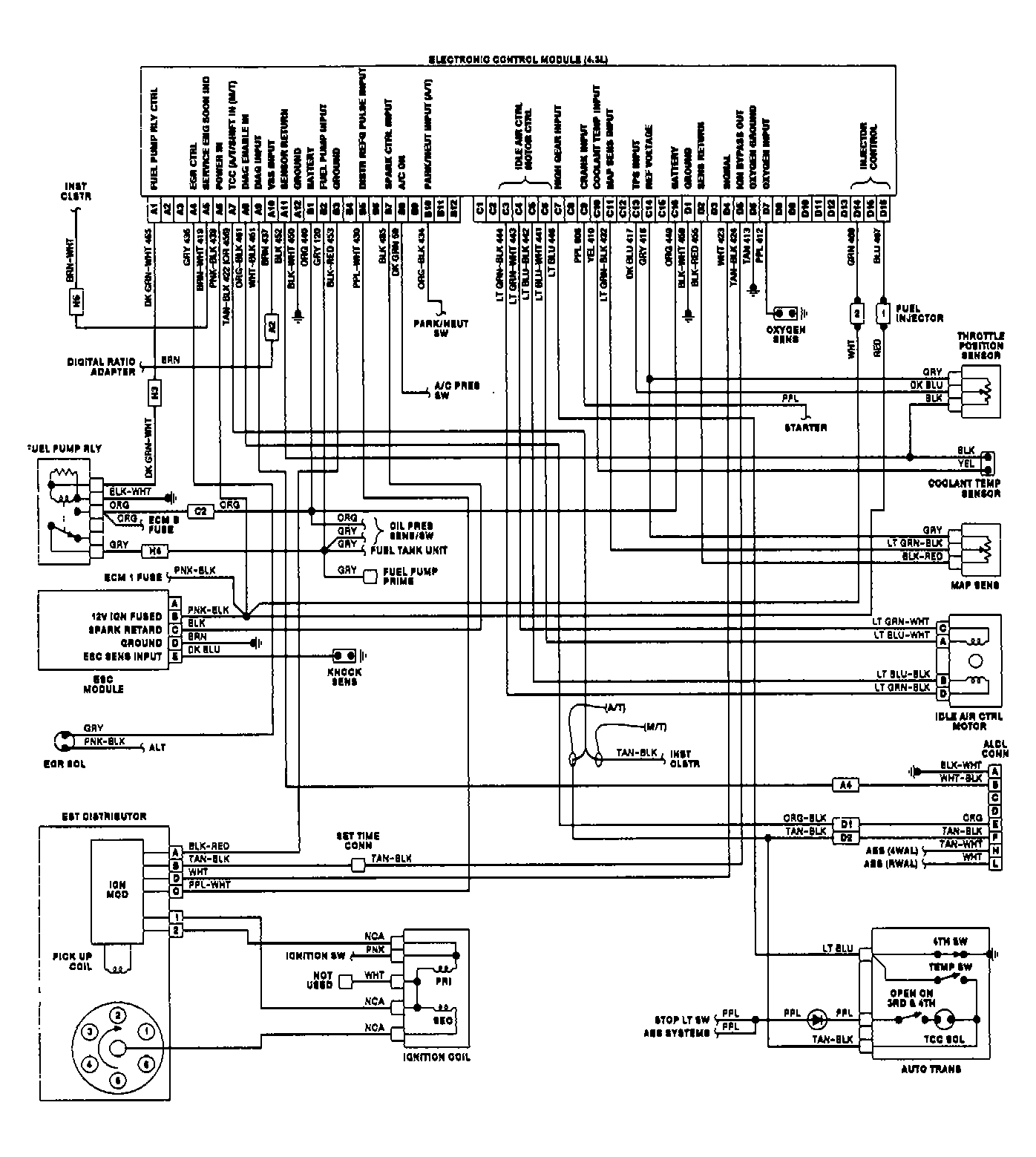

Fig 2: Astro/Safari 4.3L Wiring Diagram

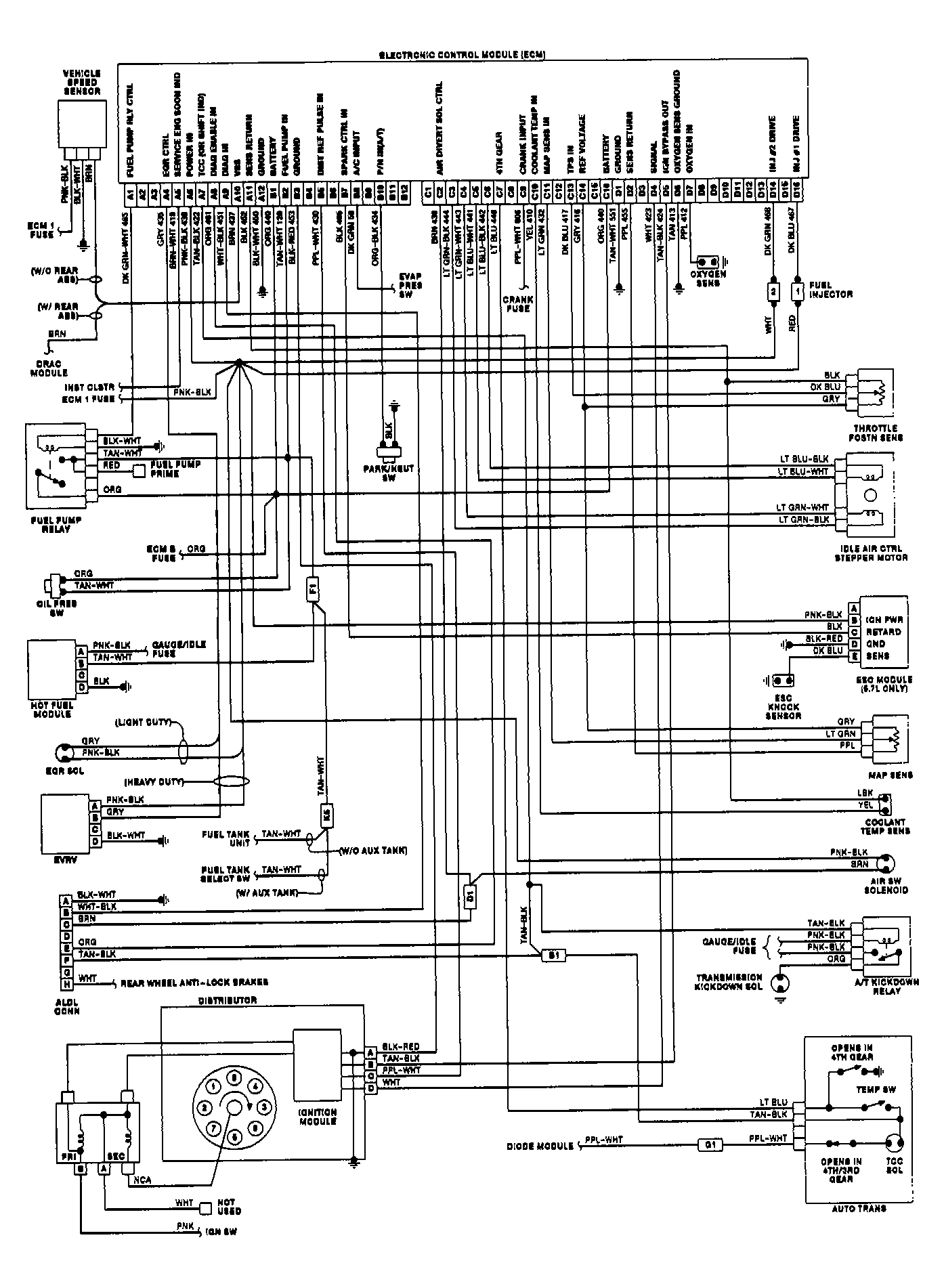

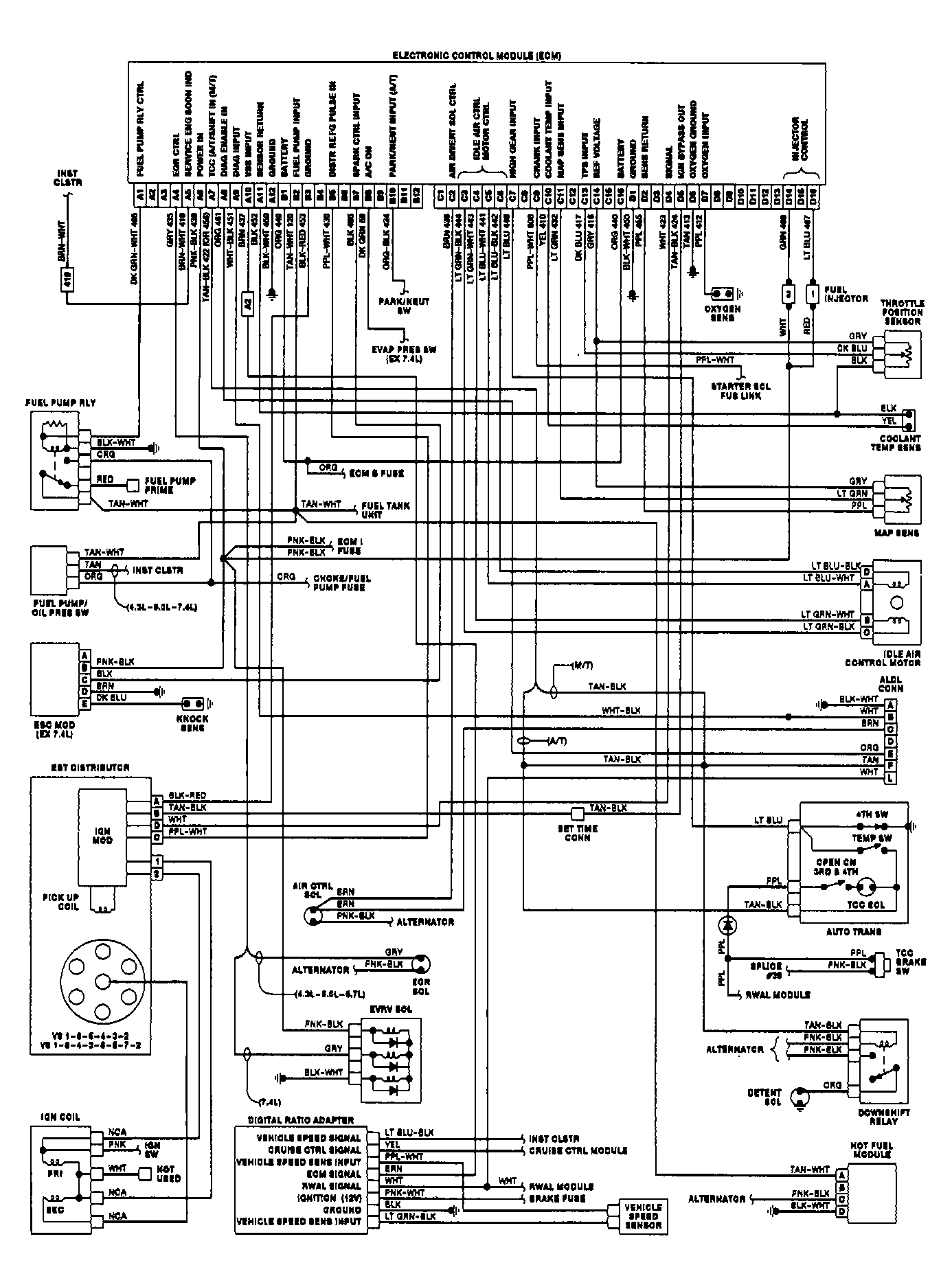

Fig 3: "C" & "K" Series V6 & V8 Wiring Diagram

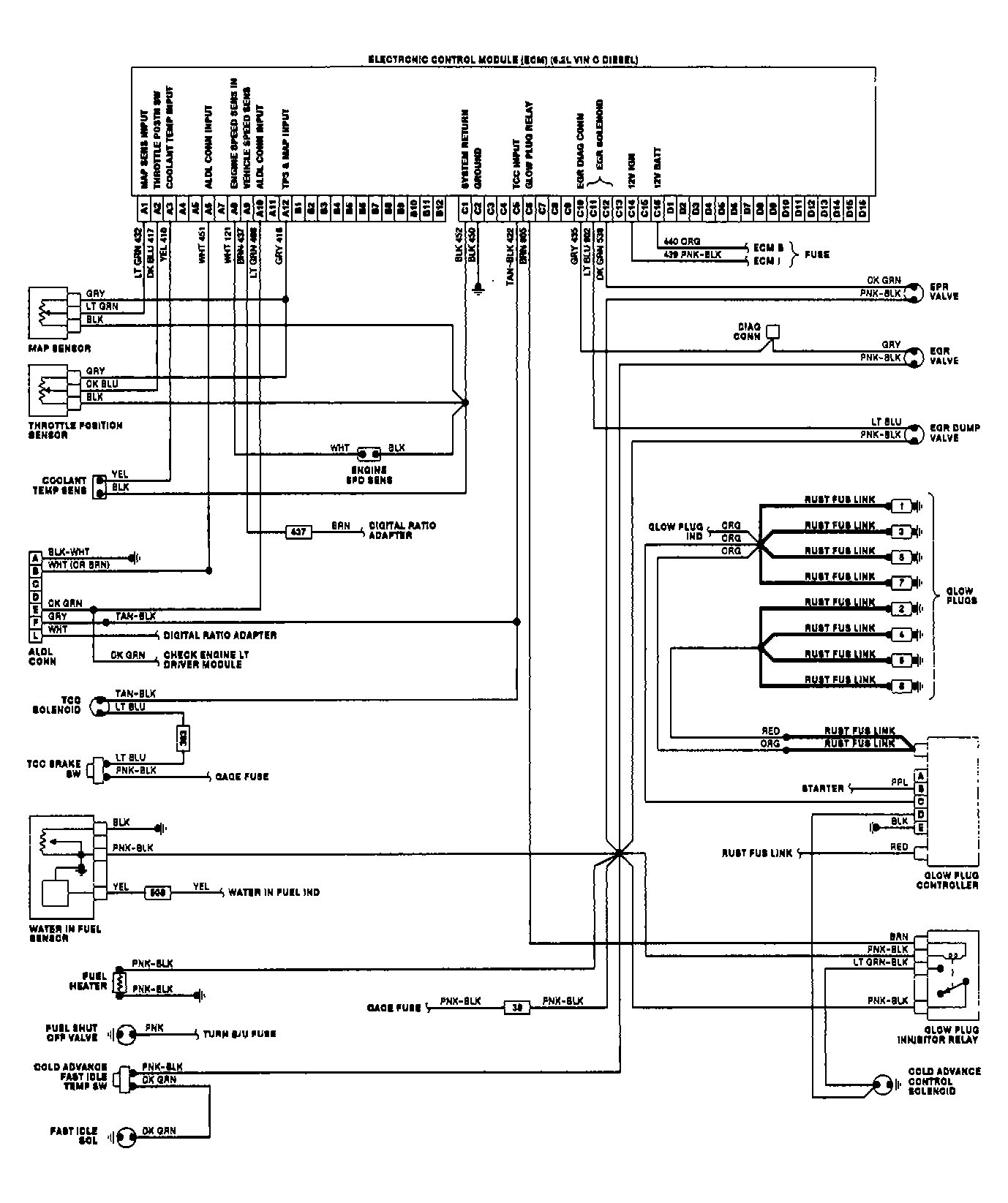

Fig 4: "C" & "K" Series 6.2L Diesel Wiring Diagram

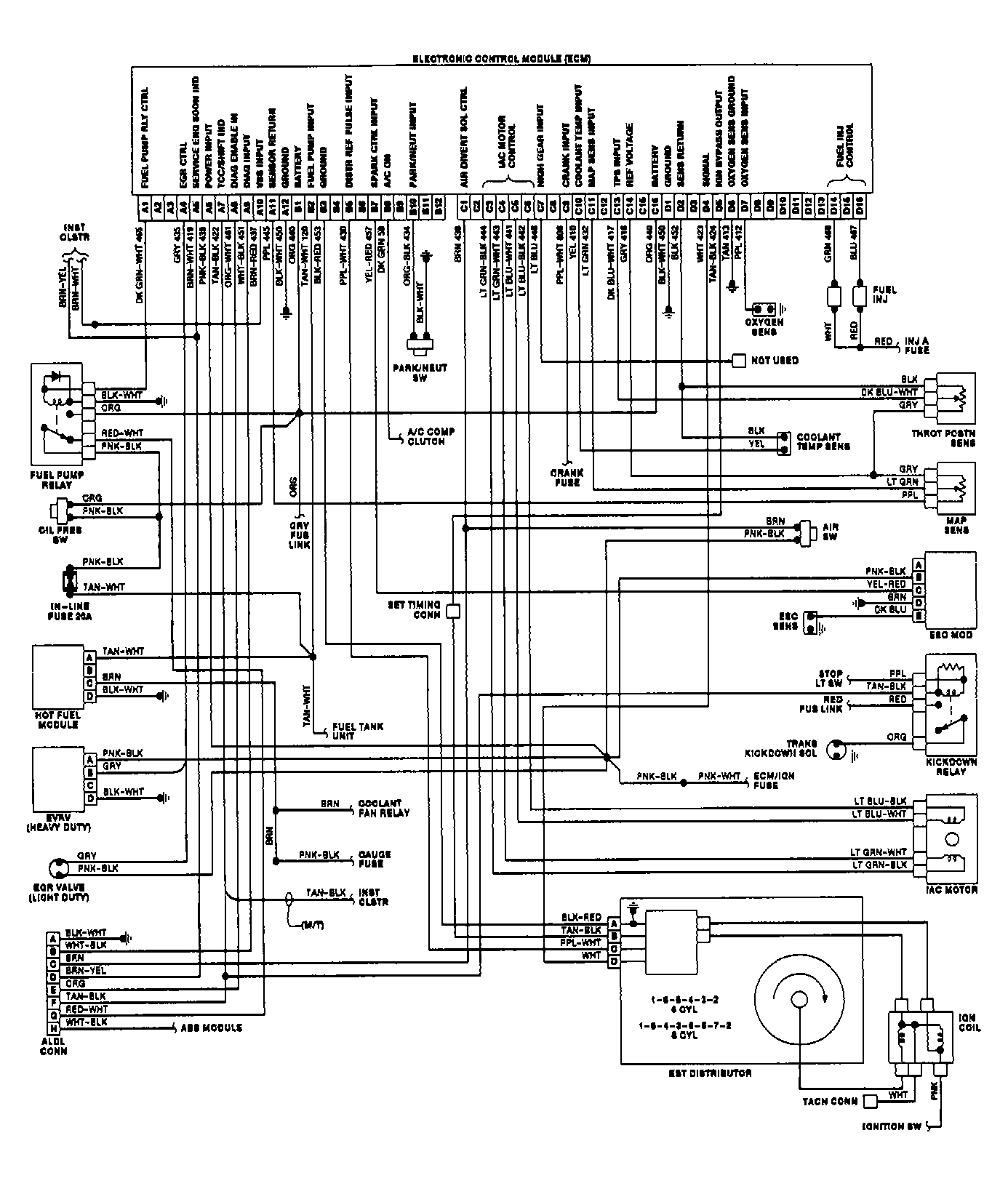

Fig 5: "G" Series V6 & V8 Wiring Diagram

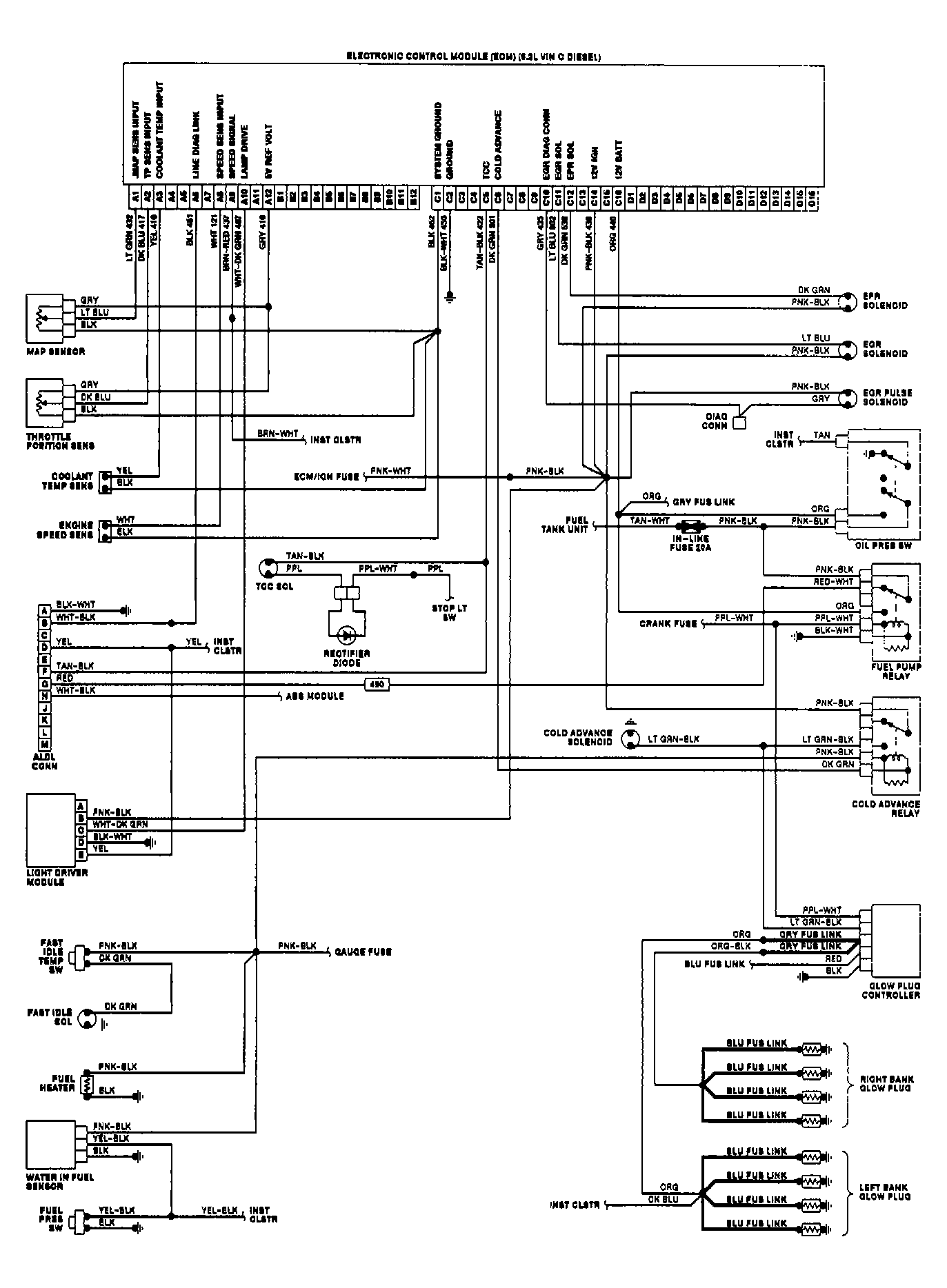

Fig 6: "G" Series 6.2L Diesel Wiring Diagram

Fig 7: "P" Series Wiring Diagram

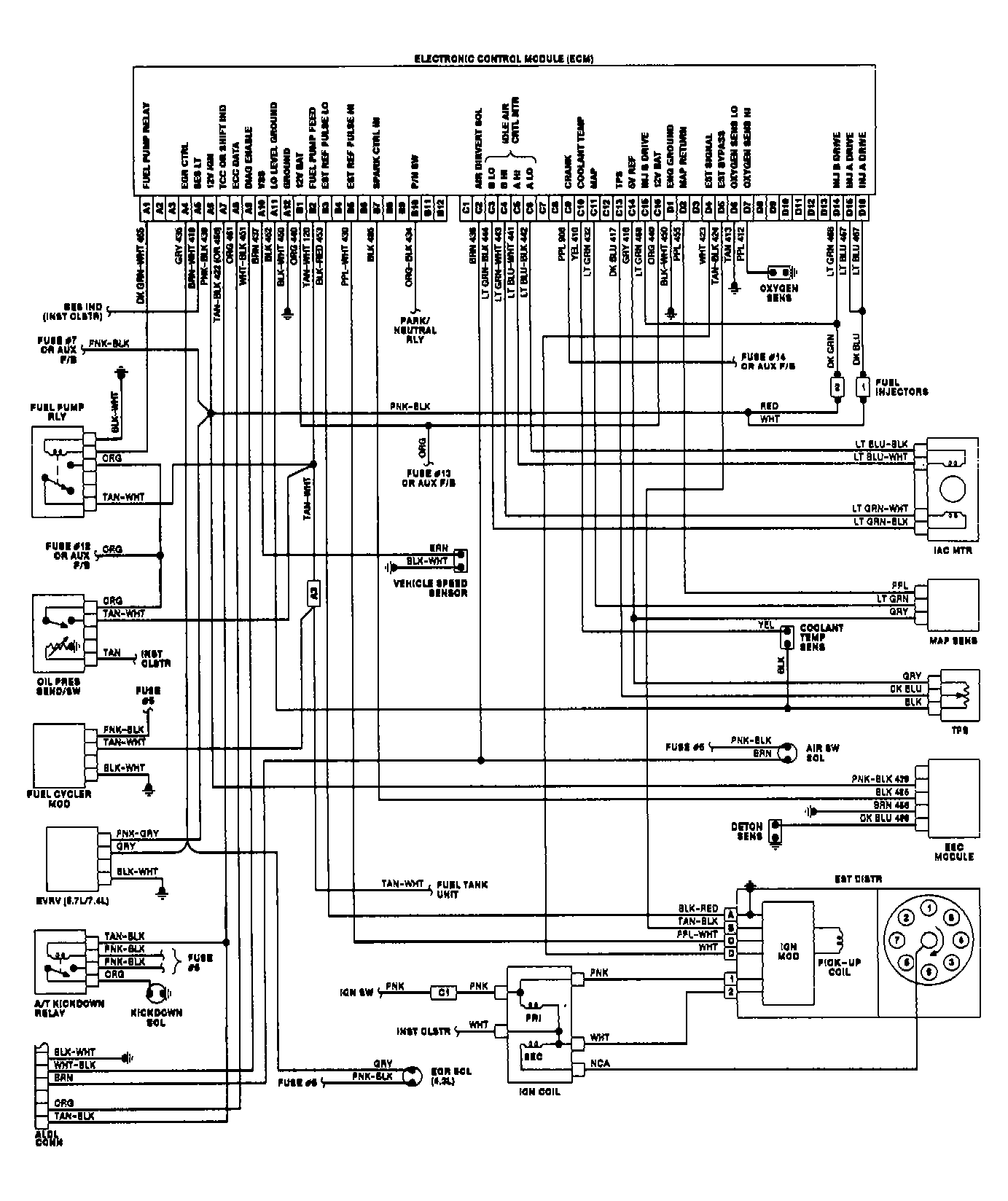

Fig 8: "R" & "V" Series V8 Wiring Diagram

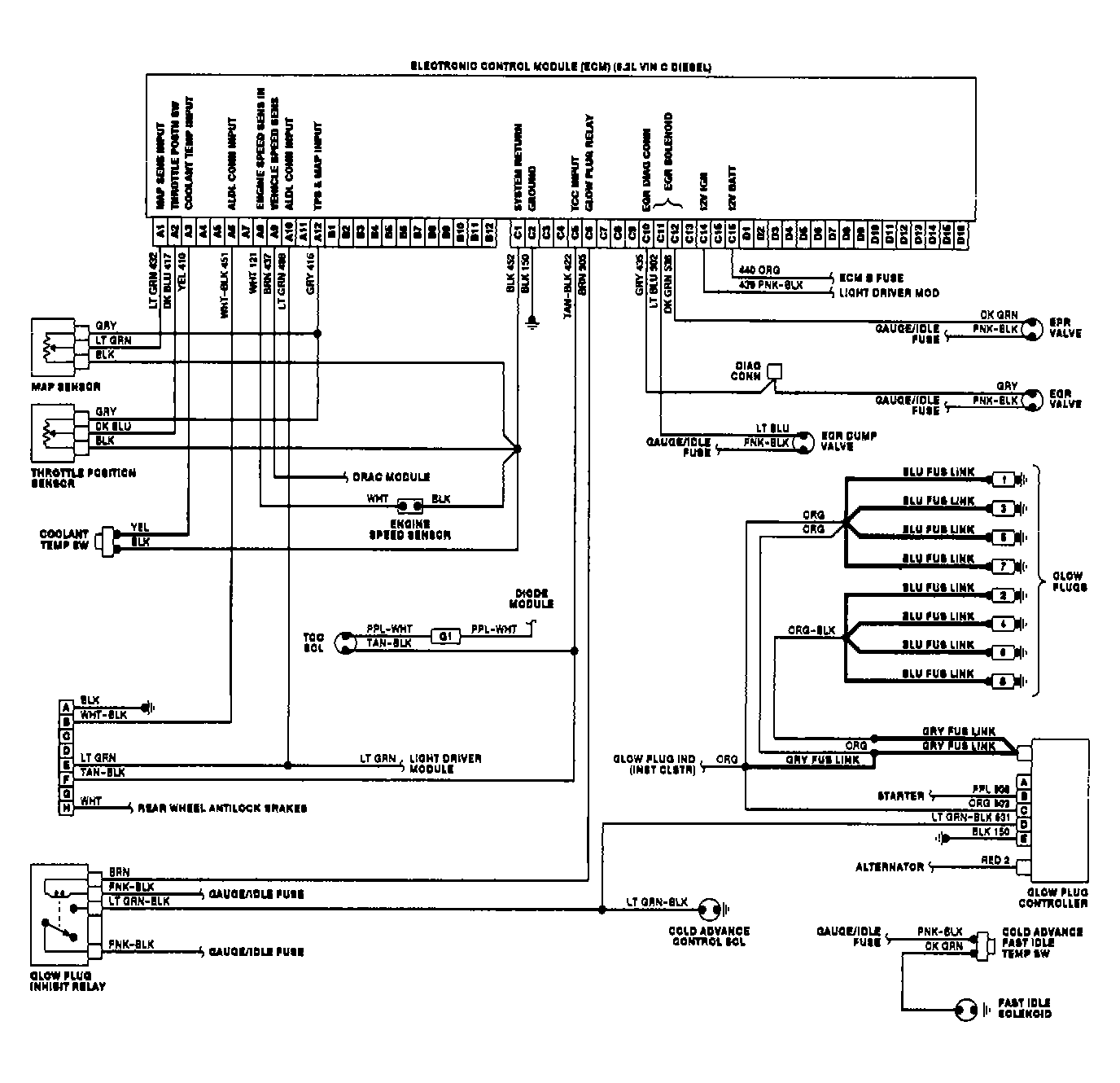

Fig 9: "R" & "V" Series 6.2L Diesel Wiring Diagram

Fig 10: "S" & "T" Series 2.5L Wiring Diagram

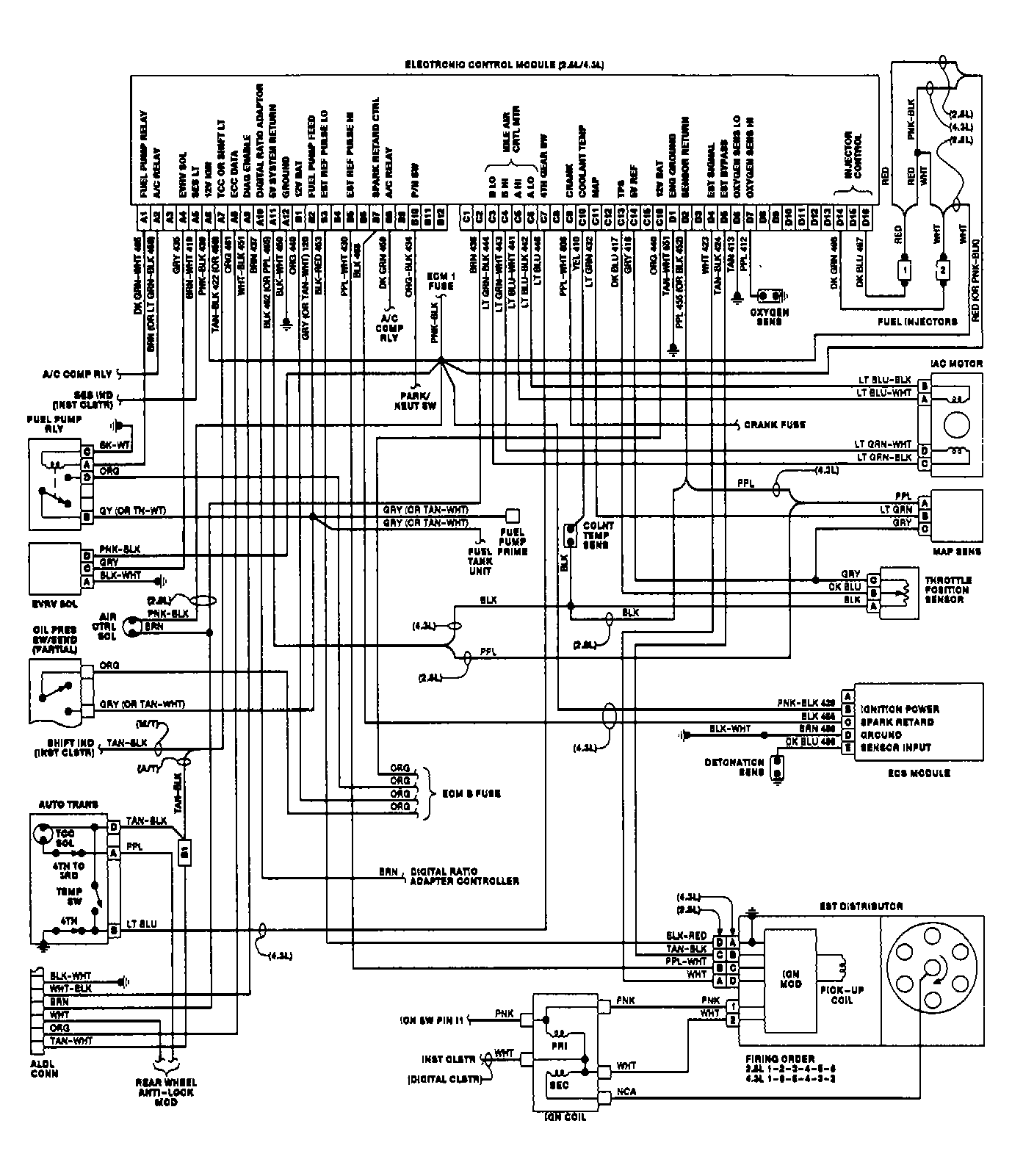

Fig 11: "S" & "T" Series 2.8L & 4.3L Wiring Diagram

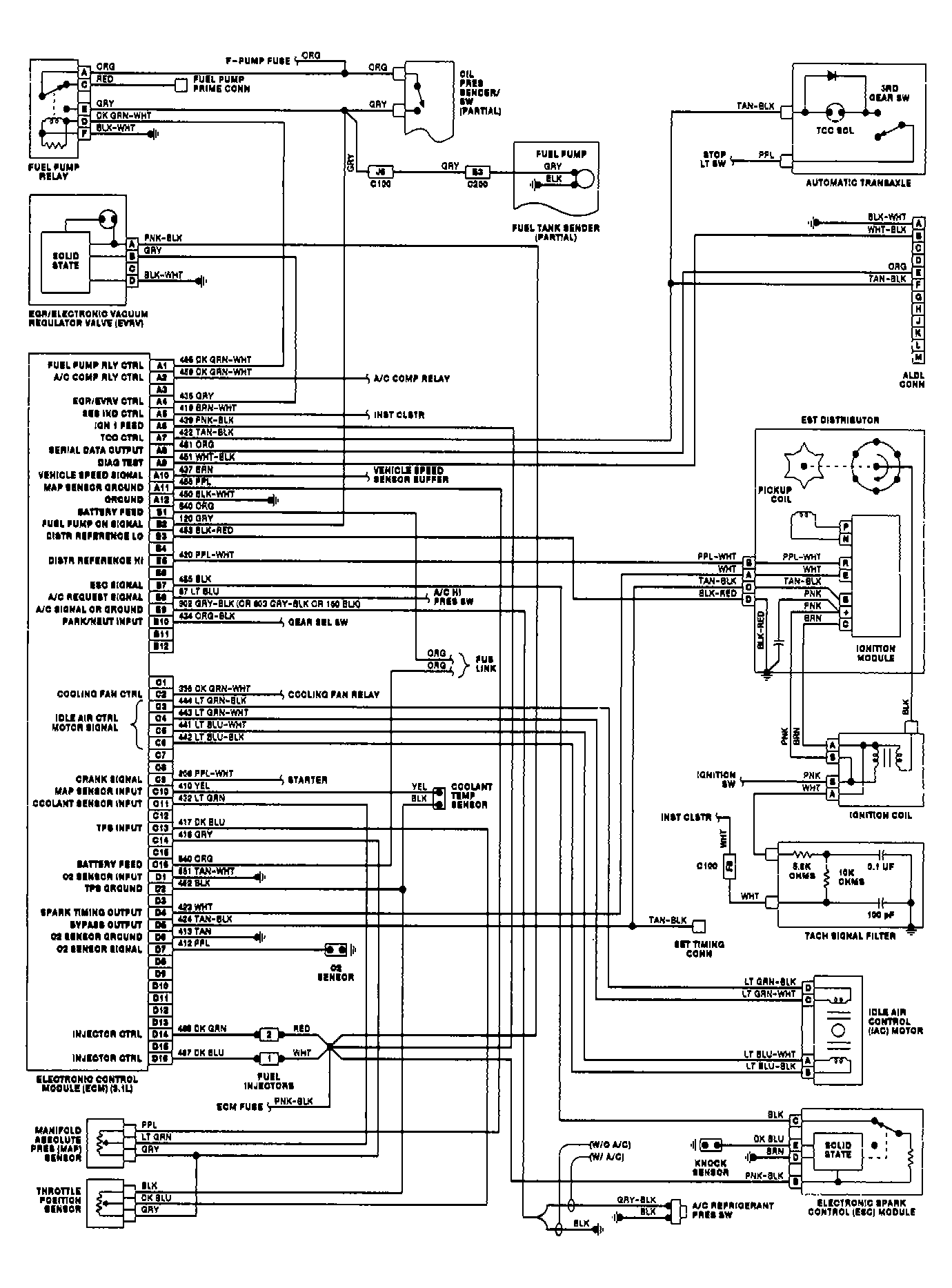

Fig 12: Lumina APV, Silhouette & Trans Sport Series 3.1L Wiring Diagram
