Diagnostic Aids

Check for spread connectors at pass-thru connector. Code 68 will set when going to default (2nd gear). Refer to TESTS W/O CODES article in this section.

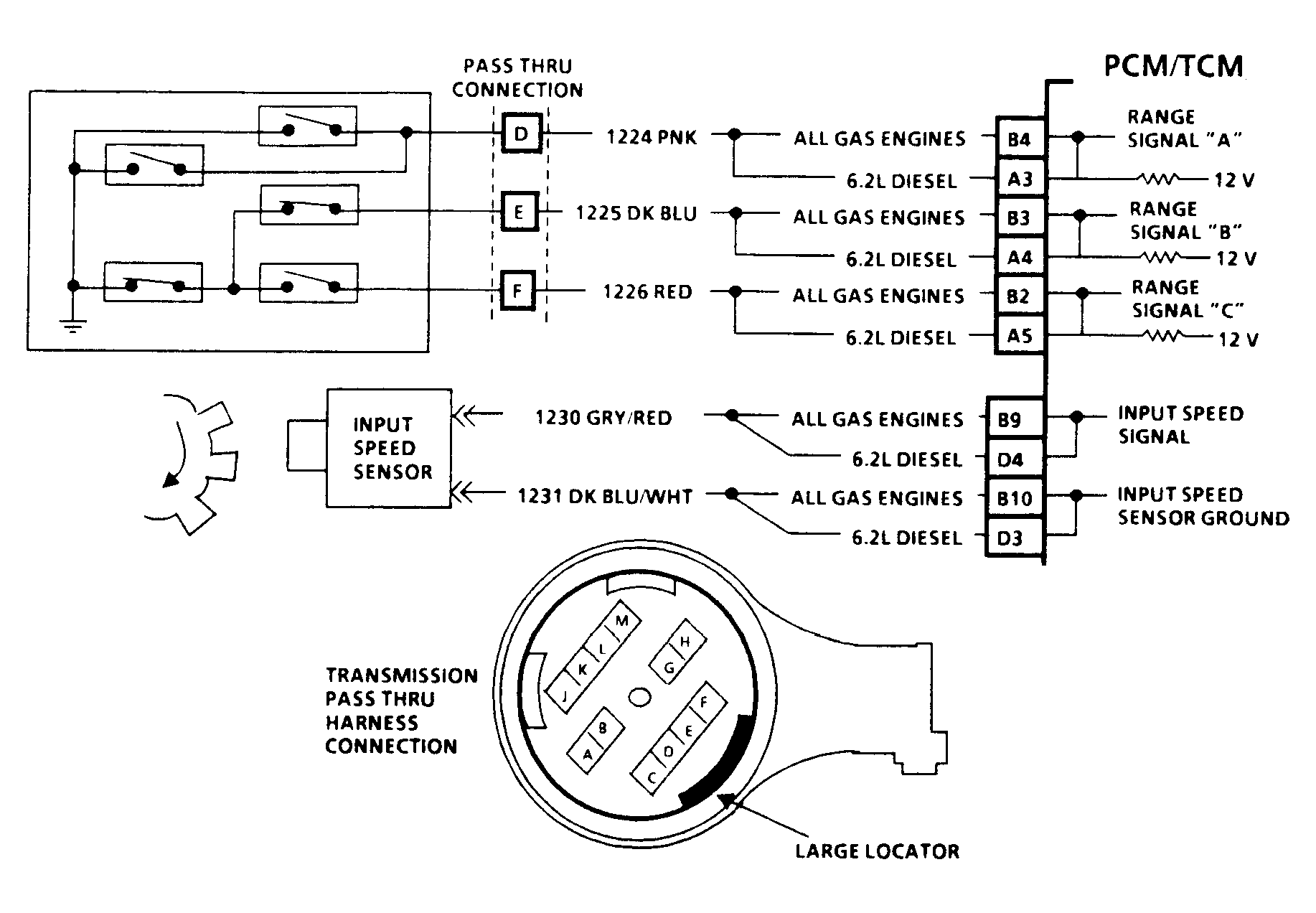

Fig 1: Code 68 Schematic - Overdrive Ratio Error

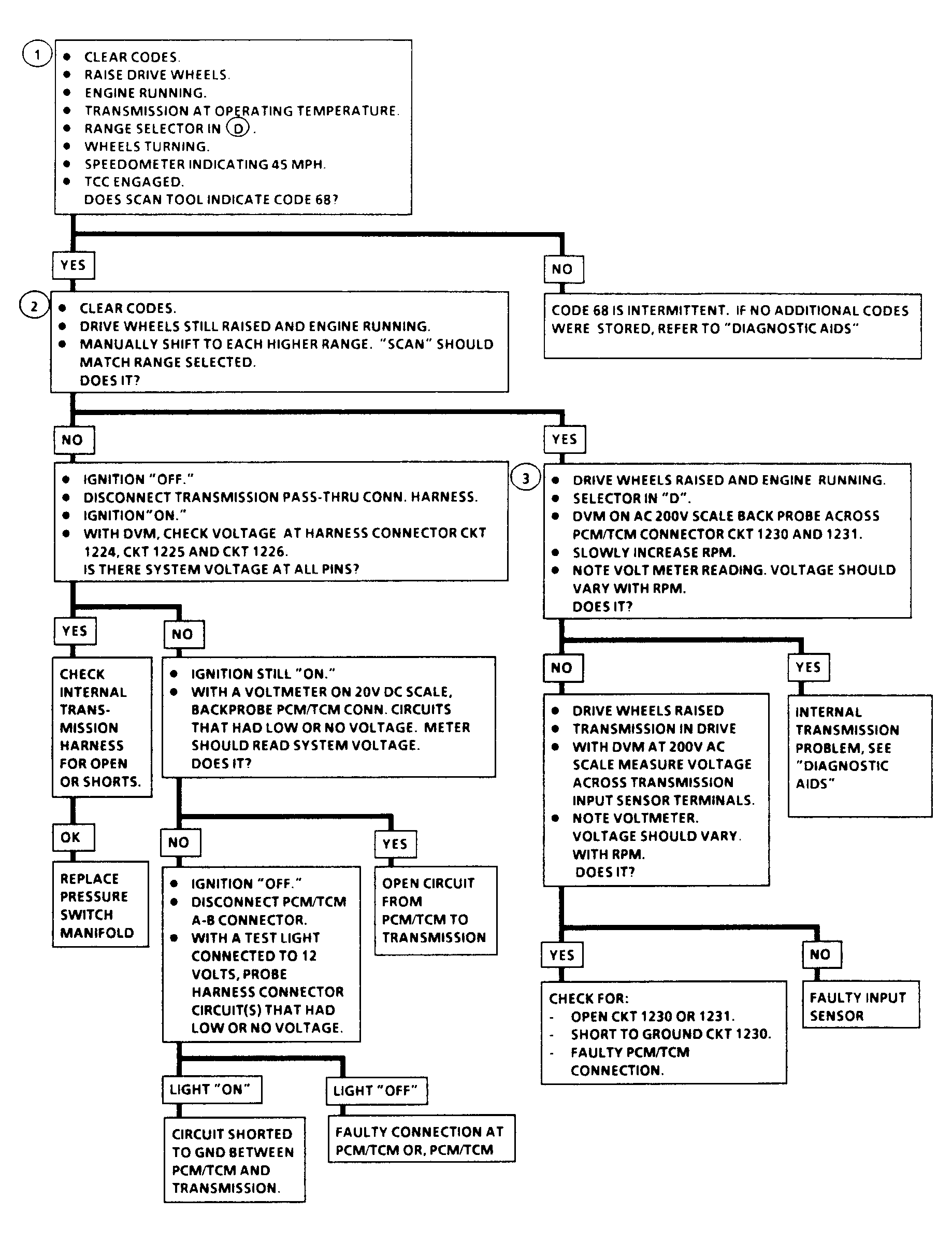

Fig 2: Code 68 Flow Chart - Overdrive Ratio Error
