Diagnostic Aids

Ensure to check all connections, especially those at the transmission pass-thru connector. If code is intermittent, see INTERMITTENTS in TESTS W/O CODES article in this section.

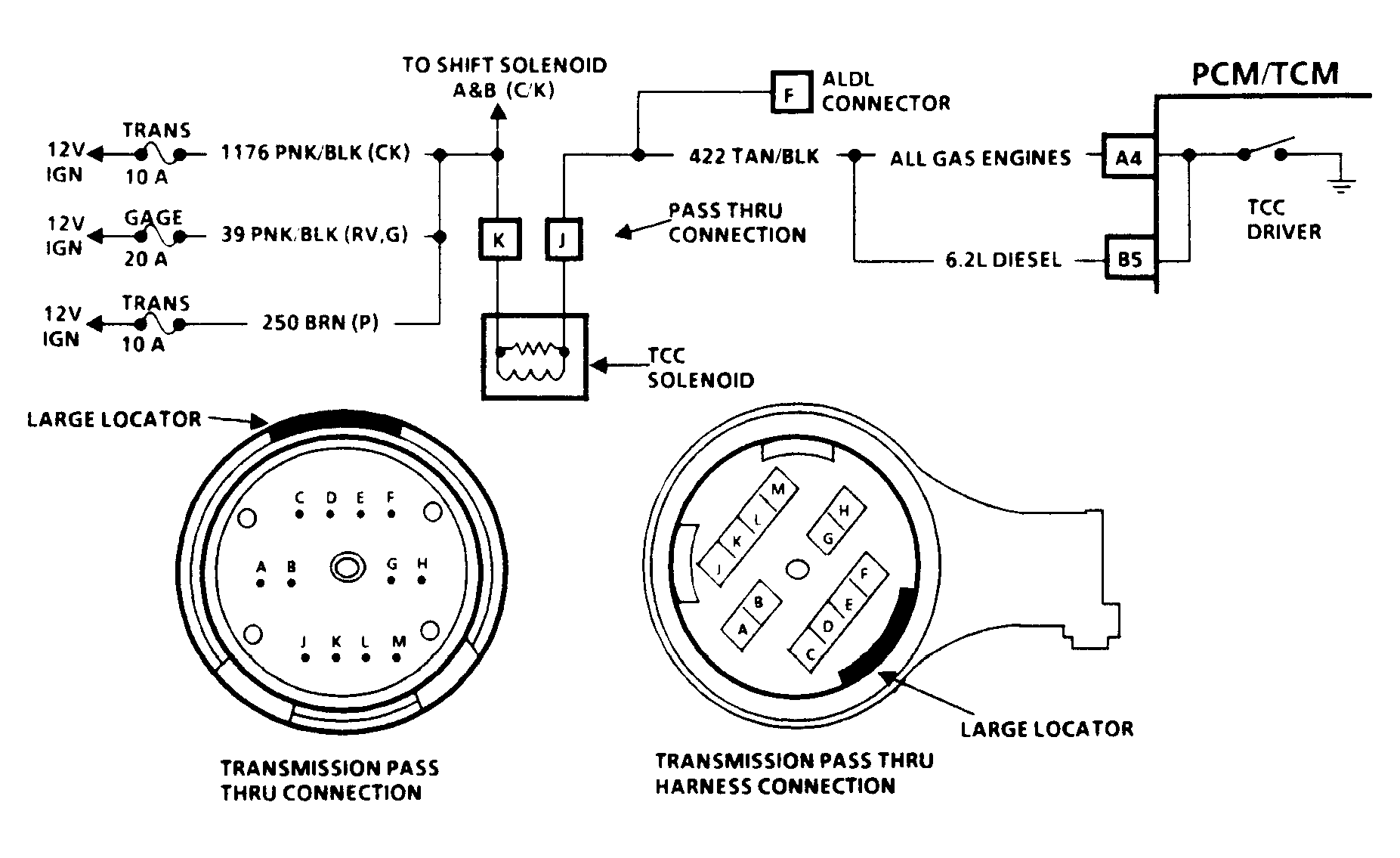

Fig 1: Code 83 Schematic - TCC QDM Fault

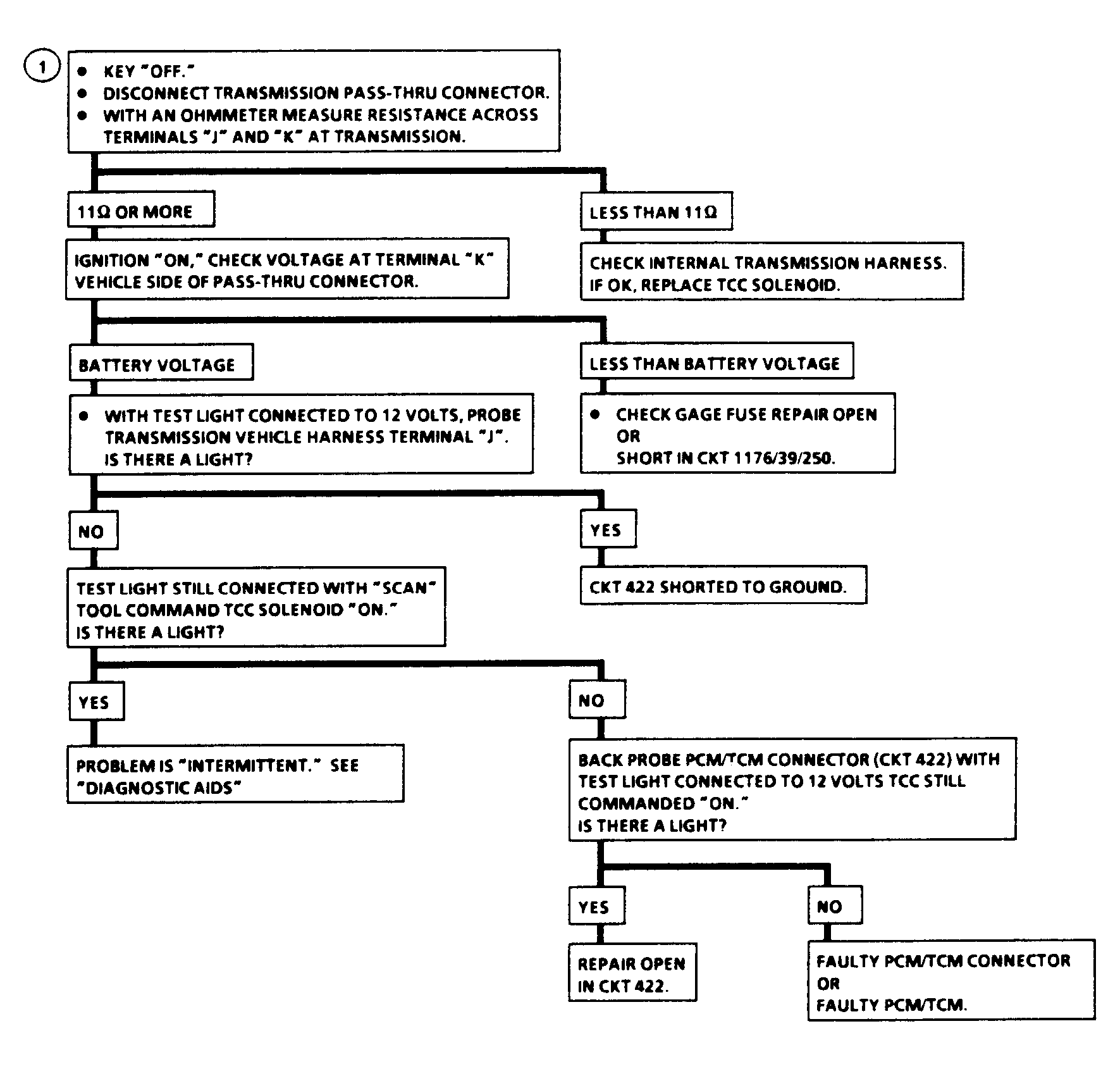

Fig 2: Code 83 Flow Chart - TCC QDM Fault
