Torque Specifications

TORQUE SPECIFICATIONS

Application		Ft. Lbs. (N.m)
Brake Line Fittings		10 (14)
Isolation Dump Valve Mounting Bolts		21 (28)
Speed Sensor Mounting Bolt
Transmission Mounted		10 (14)
Transfer Case Mounted		32 (43)

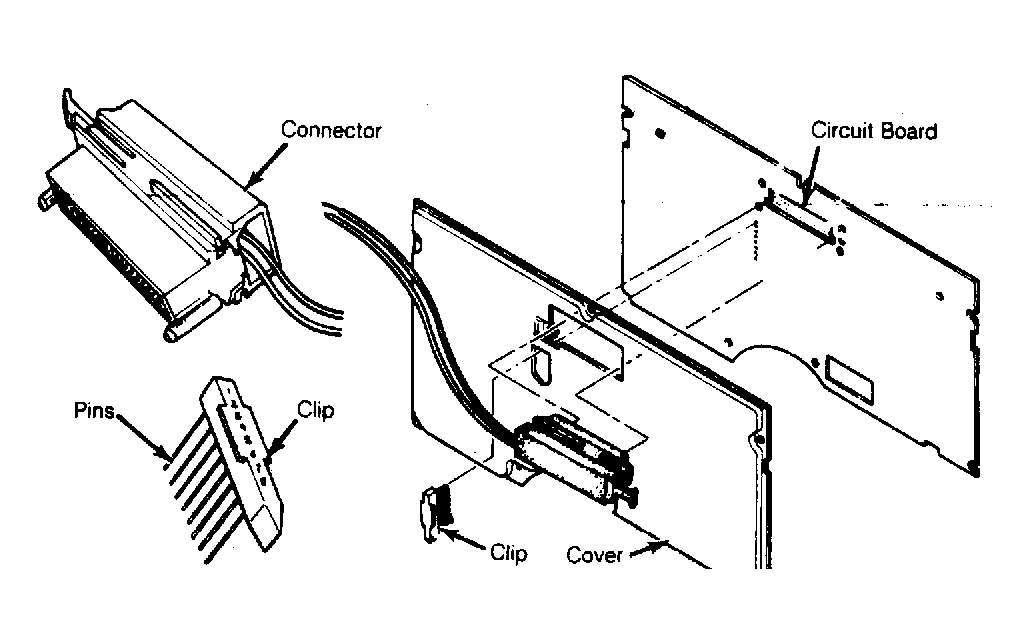

Fig 1: Digital Ratio Adapter Calibration Service Kit (25085515)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Wheel Antilock Connectors

Courtesy of GENERAL MOTORS CORP.
