Lug Nut Tightening Patterns: Notes

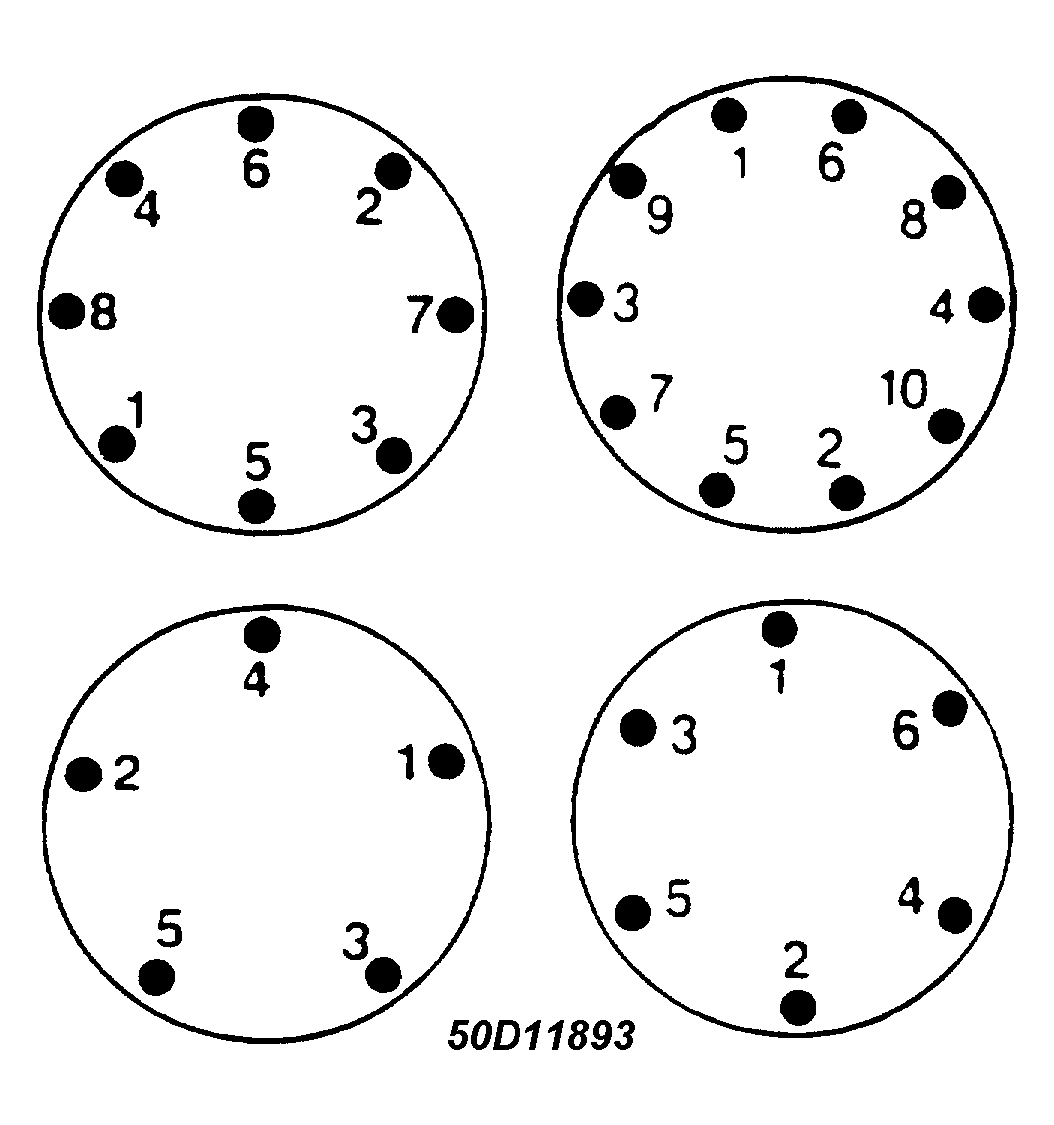

Fig 1: Wheel Lug Nut Torque Patterns
G50D11893Courtesy of GENERAL MOTORS CORP.
