Tire Rotation Patterns

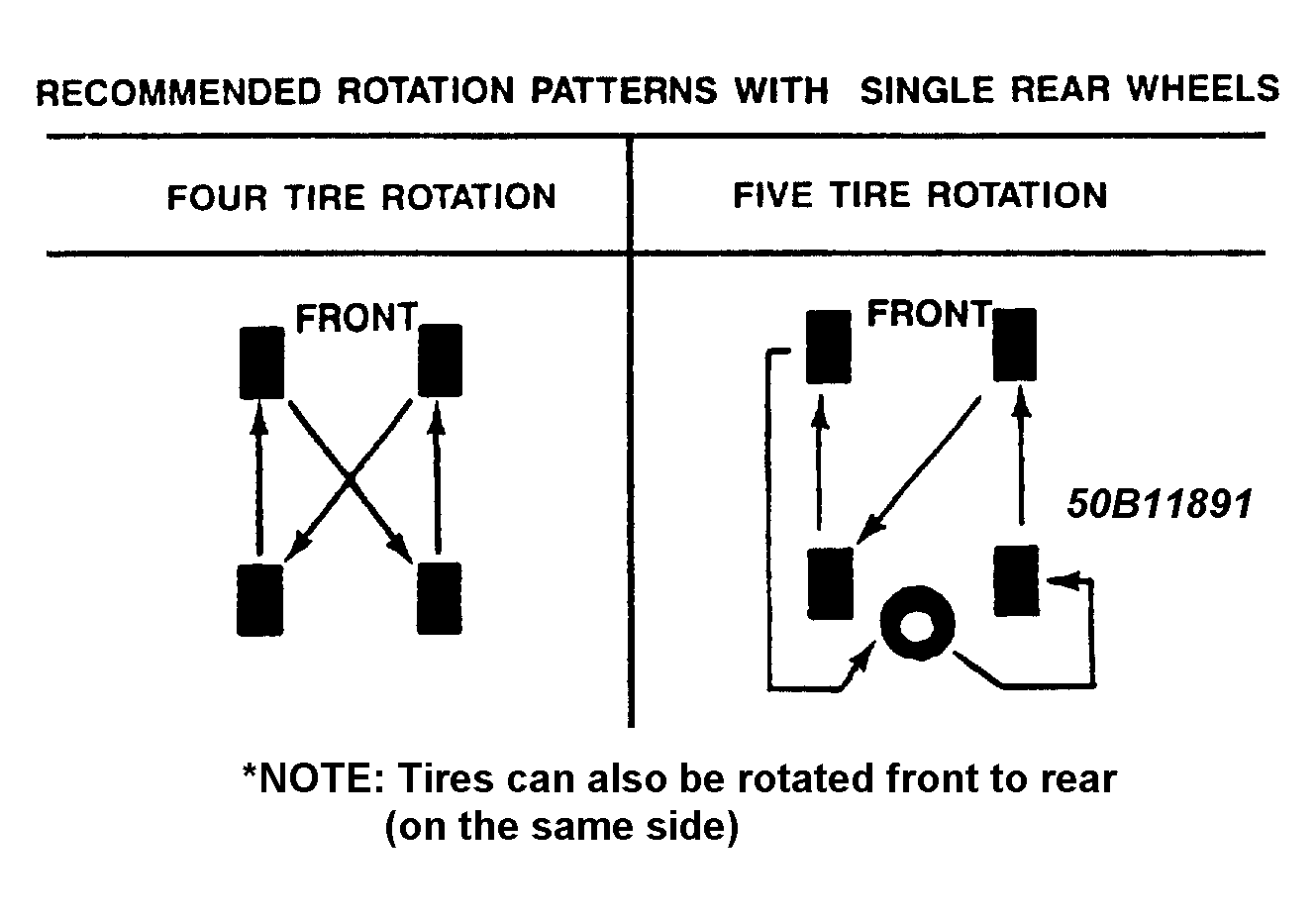

Fig 1: Tire Rotation Patterns (Single Rear Wheel)
G50B11891Courtesy of GENERAL MOTORS CORP.

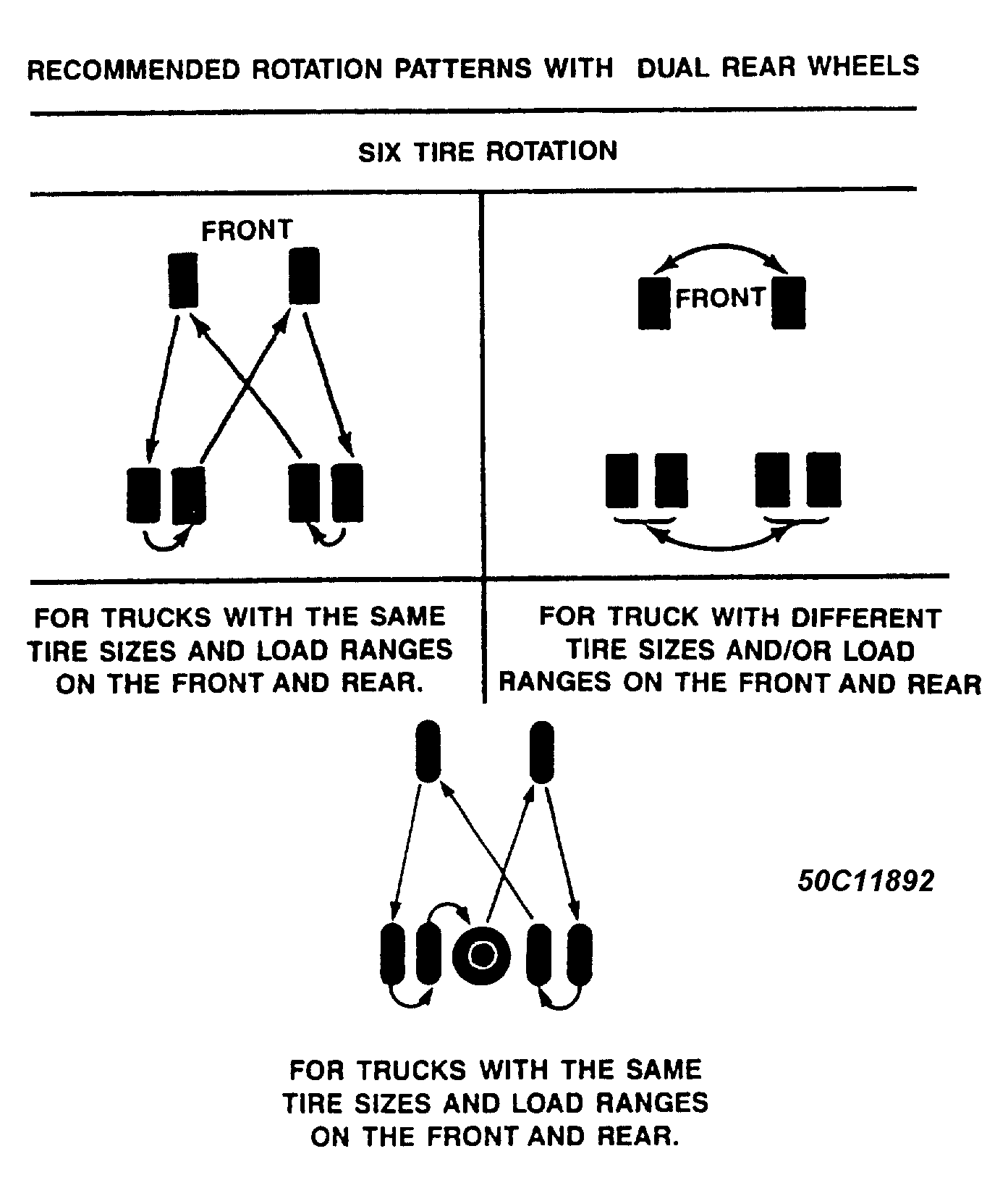

Fig 2: Tire Rotation Patterns (Dual Rear Wheels)
G50C11892Courtesy of GENERAL MOTORS CORP.
