Vent Window

  1. Remove the door trim panel. See TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Adjust the vent by placing a wrench on the adjusting nut, and then turning the vent window to the proper tension. See Fig 1 .
  3. Install the trim panel. See TRIM PANEL  under REMOVAL & INSTALLATION.

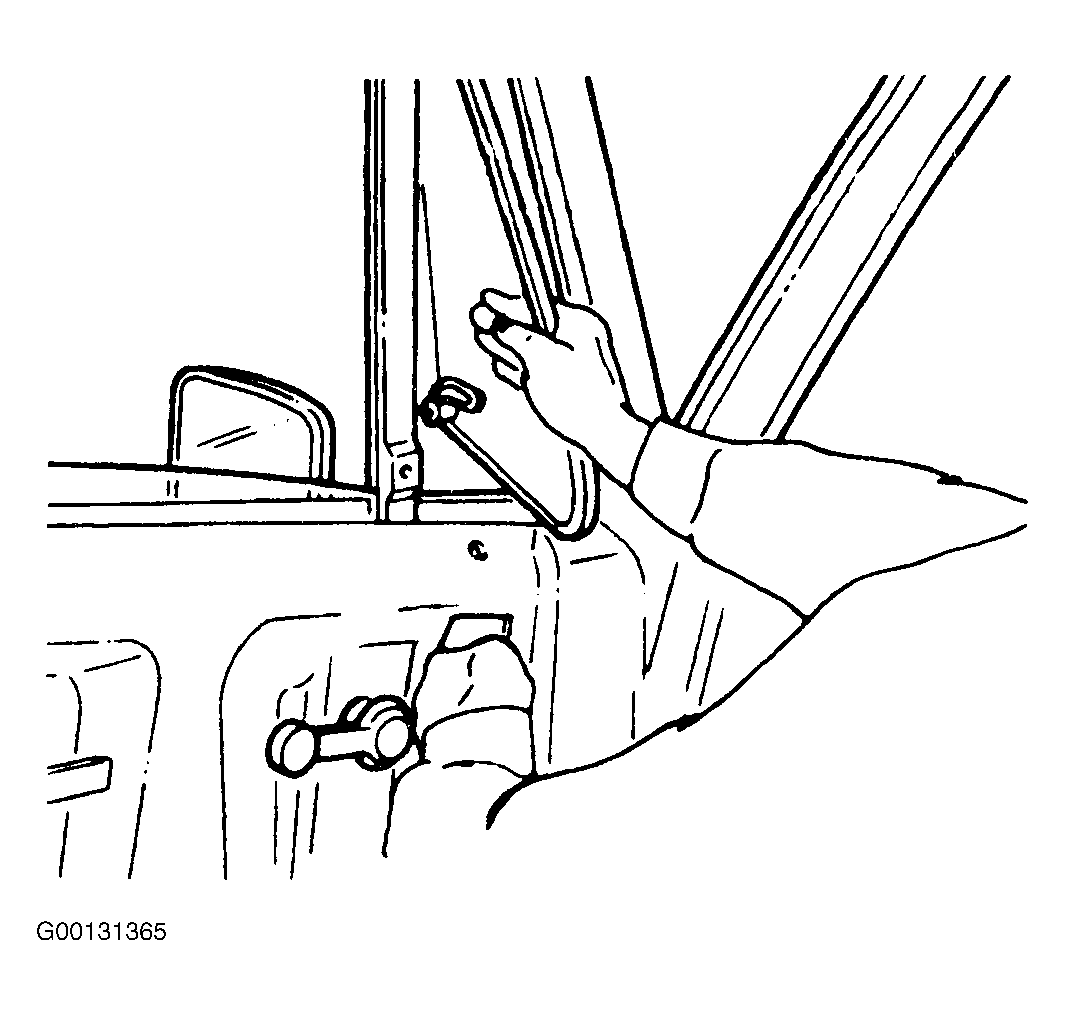

Fig 1: Adjusting Vent Window
G00131365Courtesy of GENERAL MOTORS CORP.
