Repair and Diagnosis
›
Accessories & Equipment
›
Wiper/Washer Systems
›
Wiper System/Washer System
›
Testing
›
Front - Wiper/Washer Switch Test
Front - Wiper/Washer Switch Test

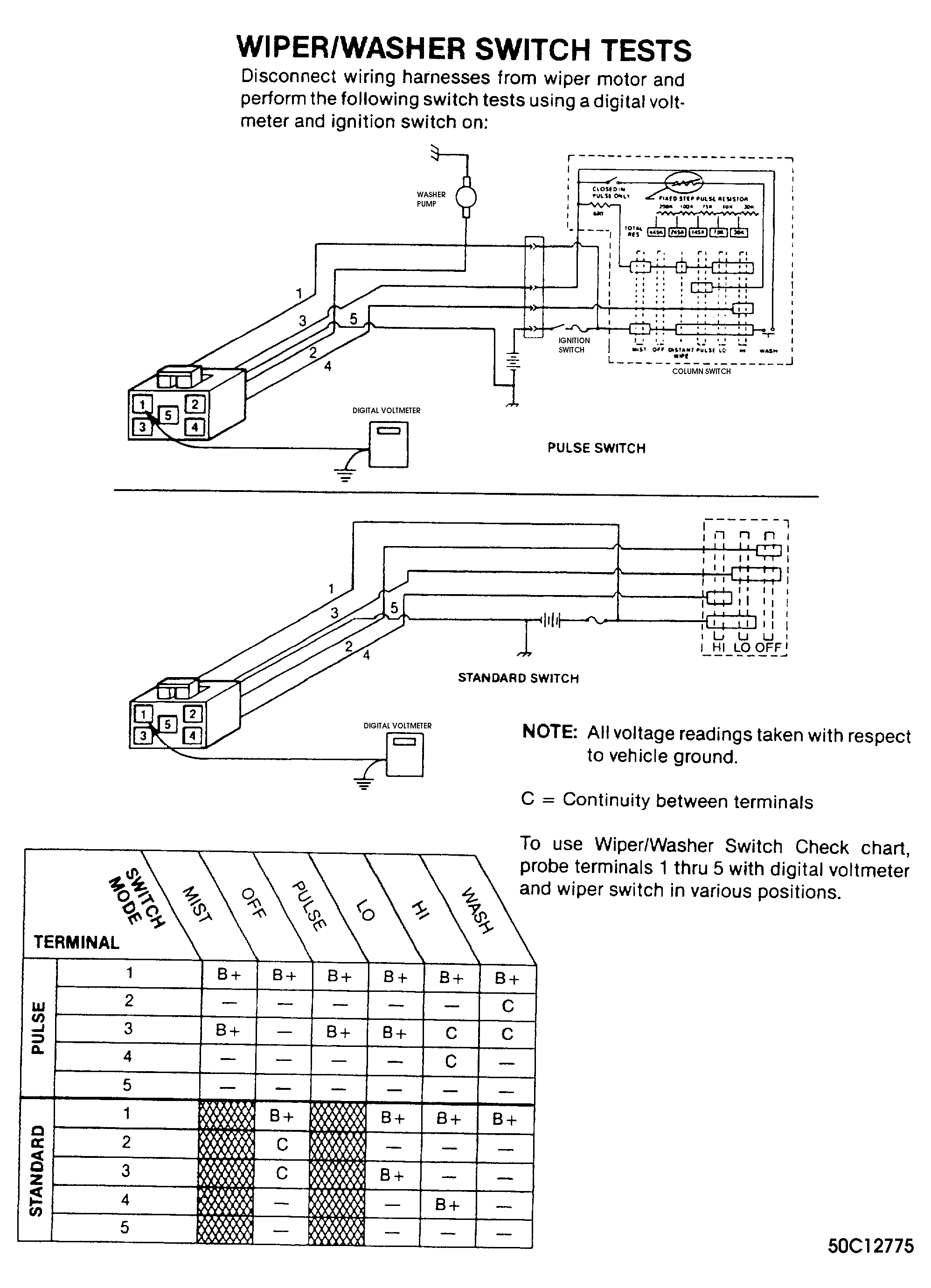

Fig 1: Front - Wiper/Washer Switch Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
