Wiring Diagrams

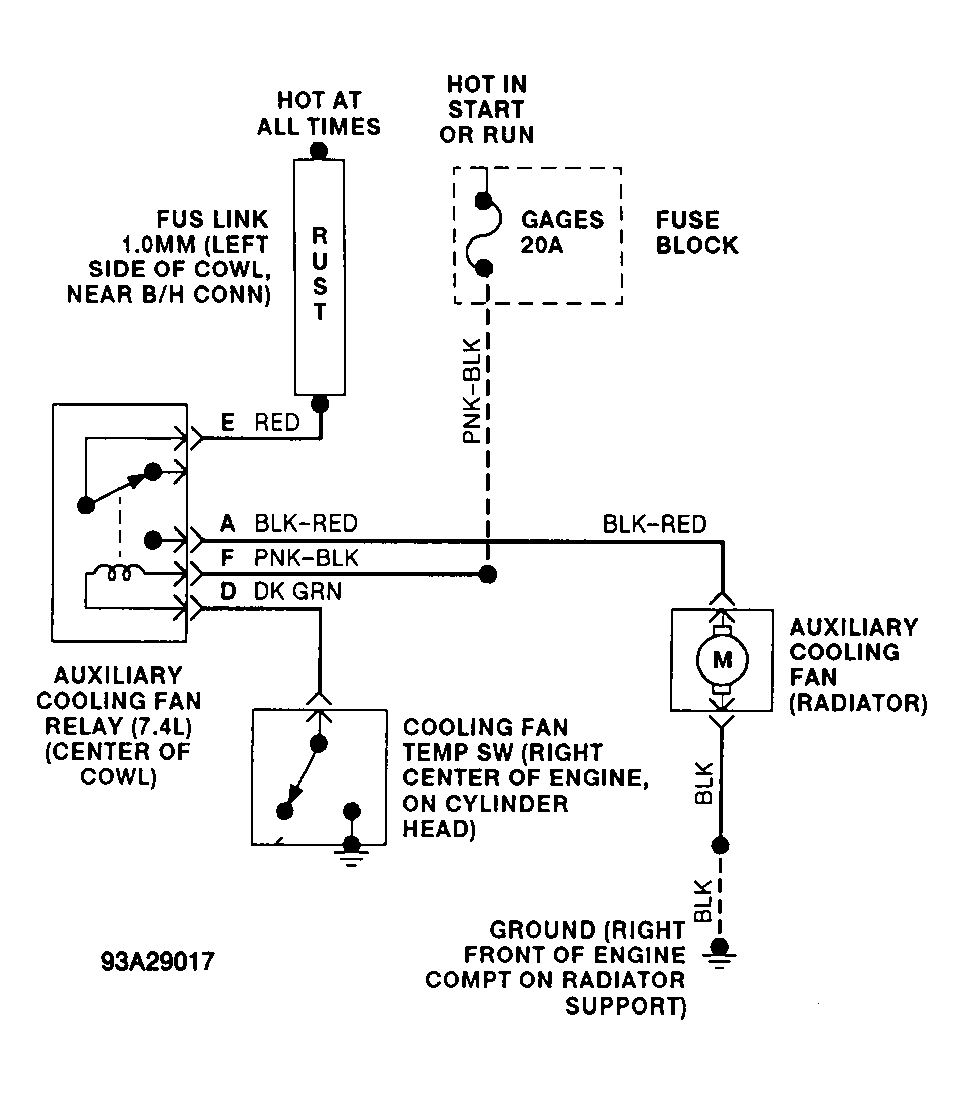

Fig 1: Cooling Fan Circuit Wiring Diagram("C" & "K" Series - 7.4L)

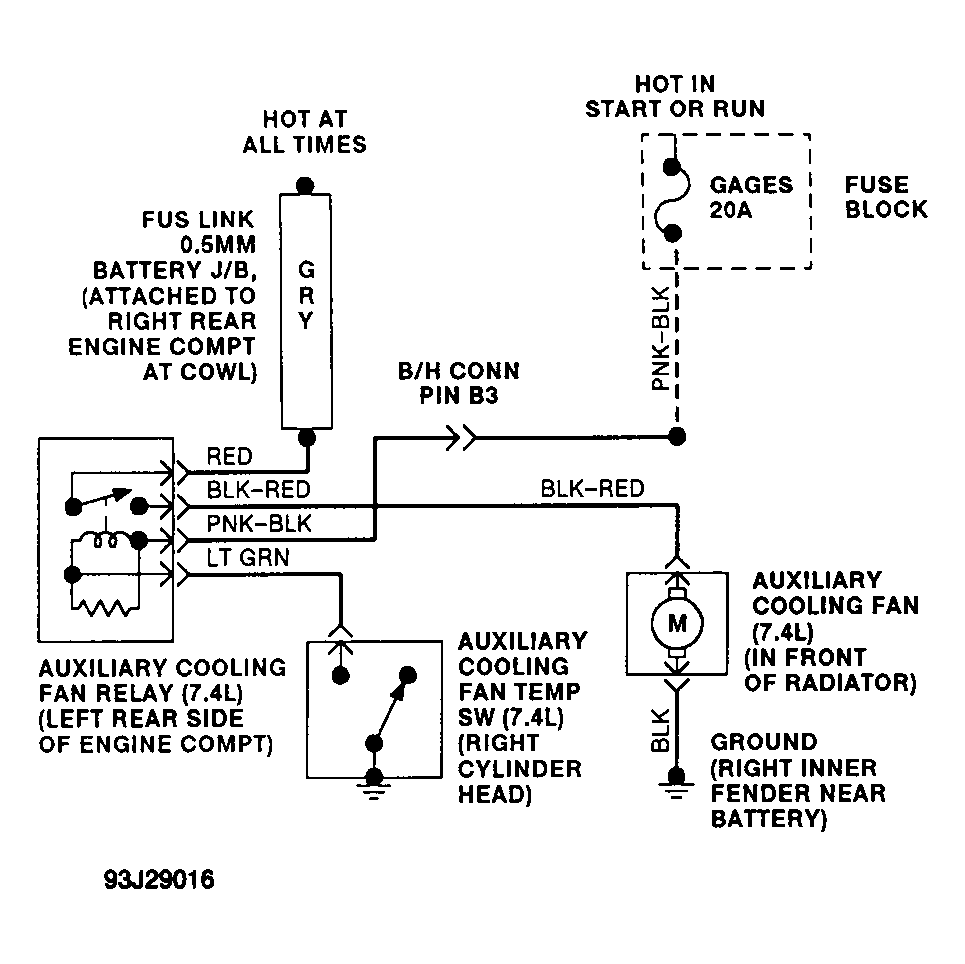

Fig 2: Cooling Fan Circuit Wiring Diagram ("G" Series - 7.4L)

NOTE: Cooling fan circuit diagram is not available for "P" Series vehicles.
