Connector Identification

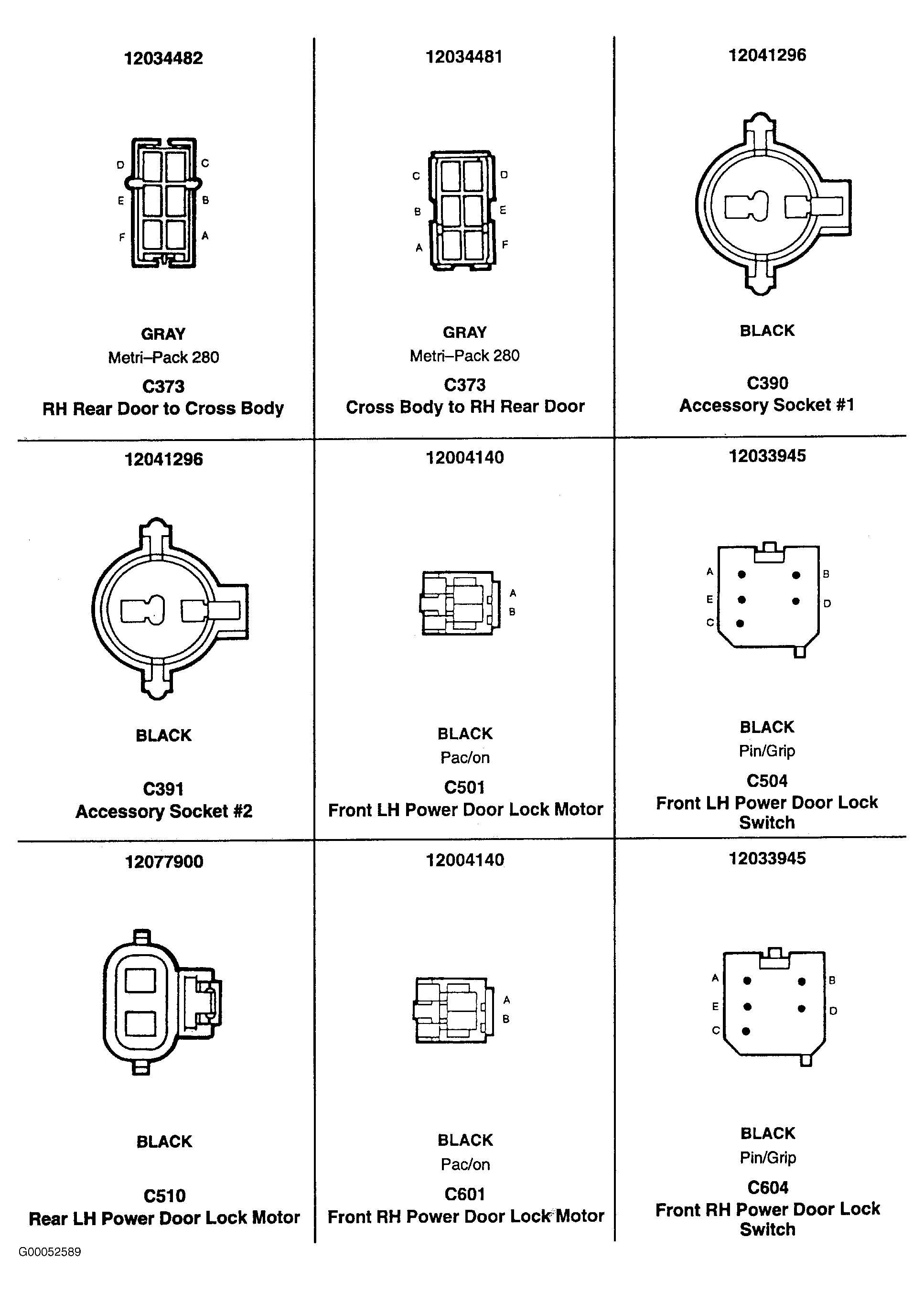

Fig 1: Connector Identification (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

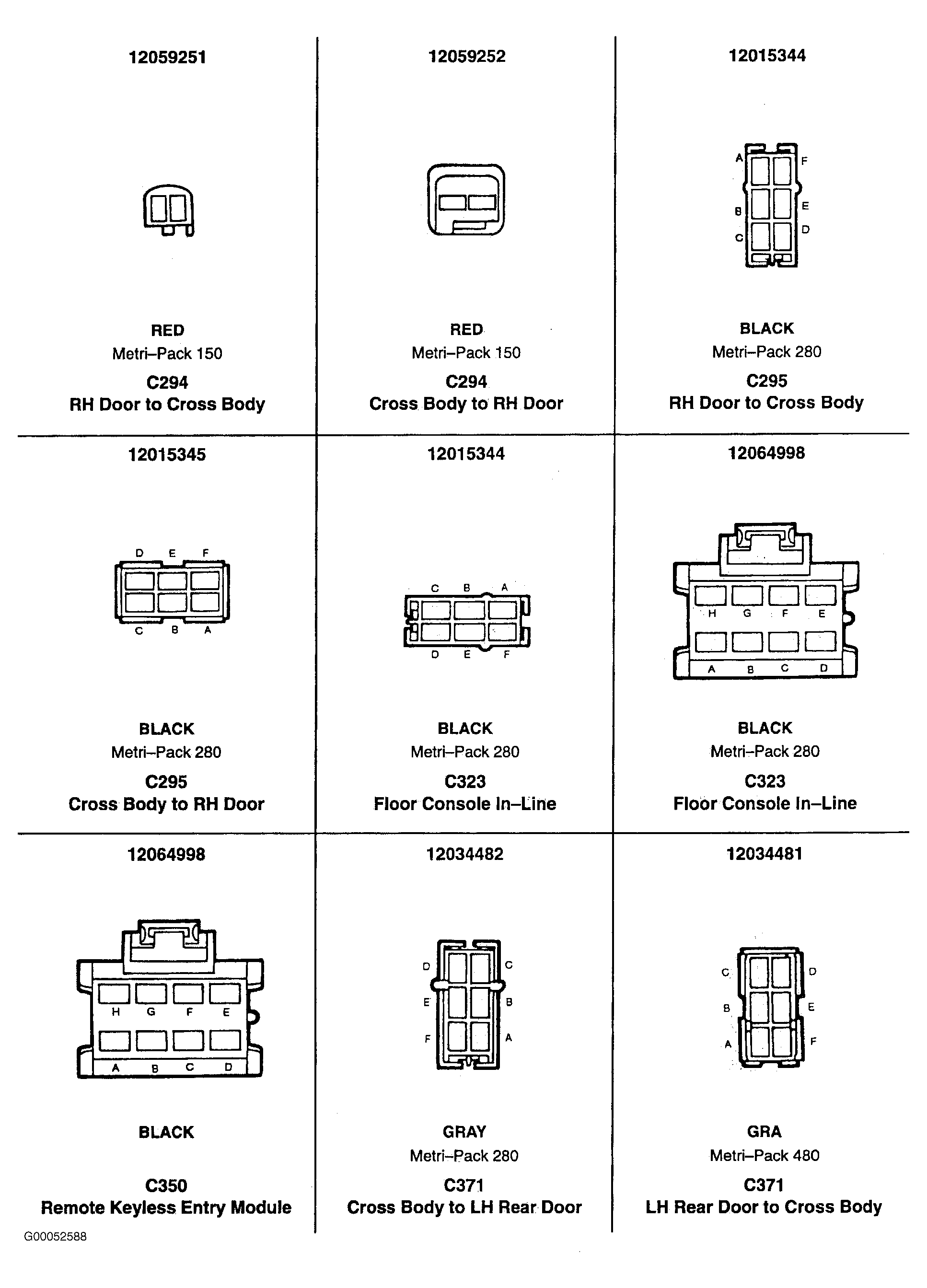

Fig 2: Connector Identification (2 Of 5)
Courtesy of GENERAL MOTORS CORP.

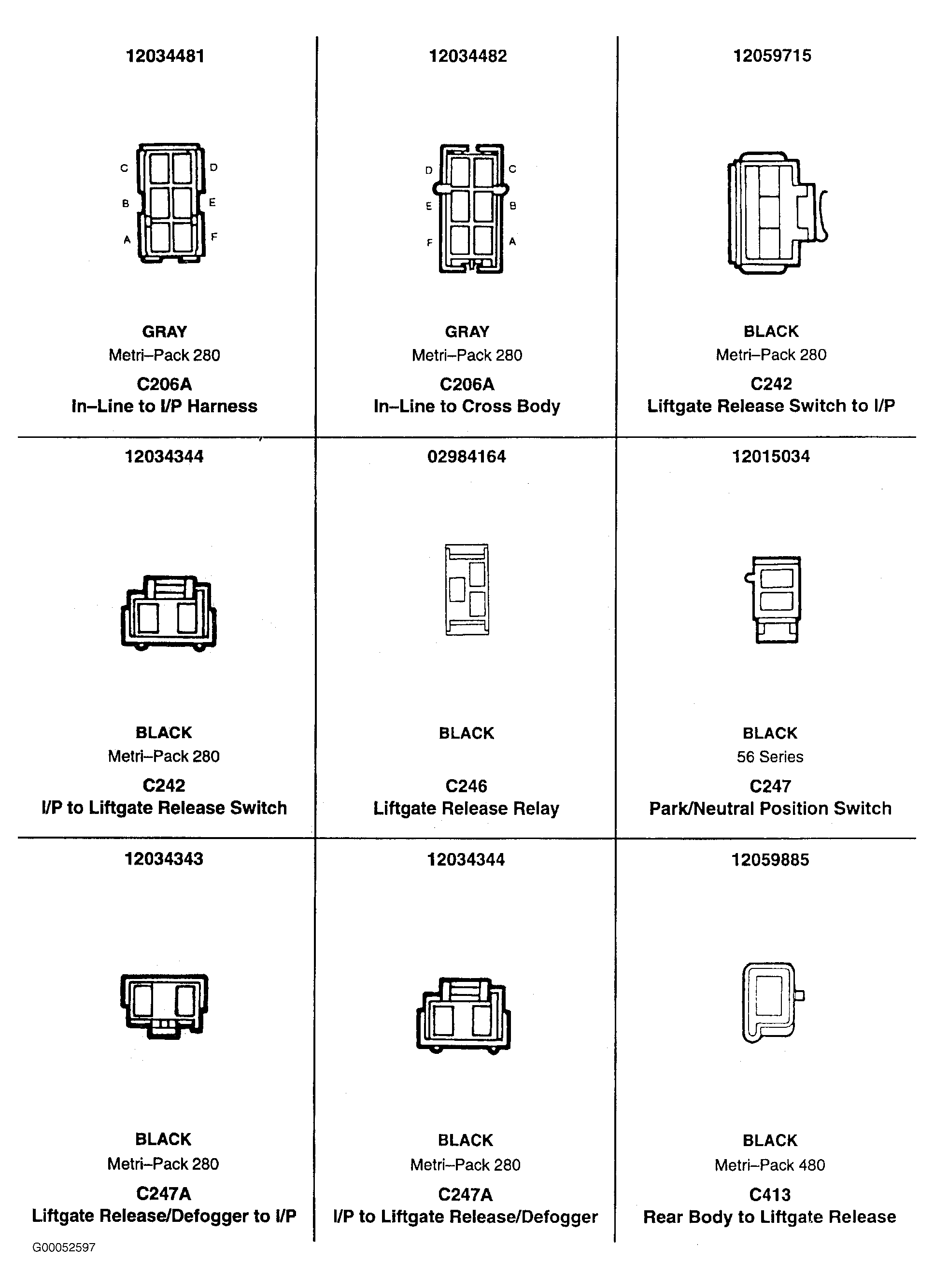

Fig 3: Connector Identification (3 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Connector Identification (4 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Connector Identification (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
