Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

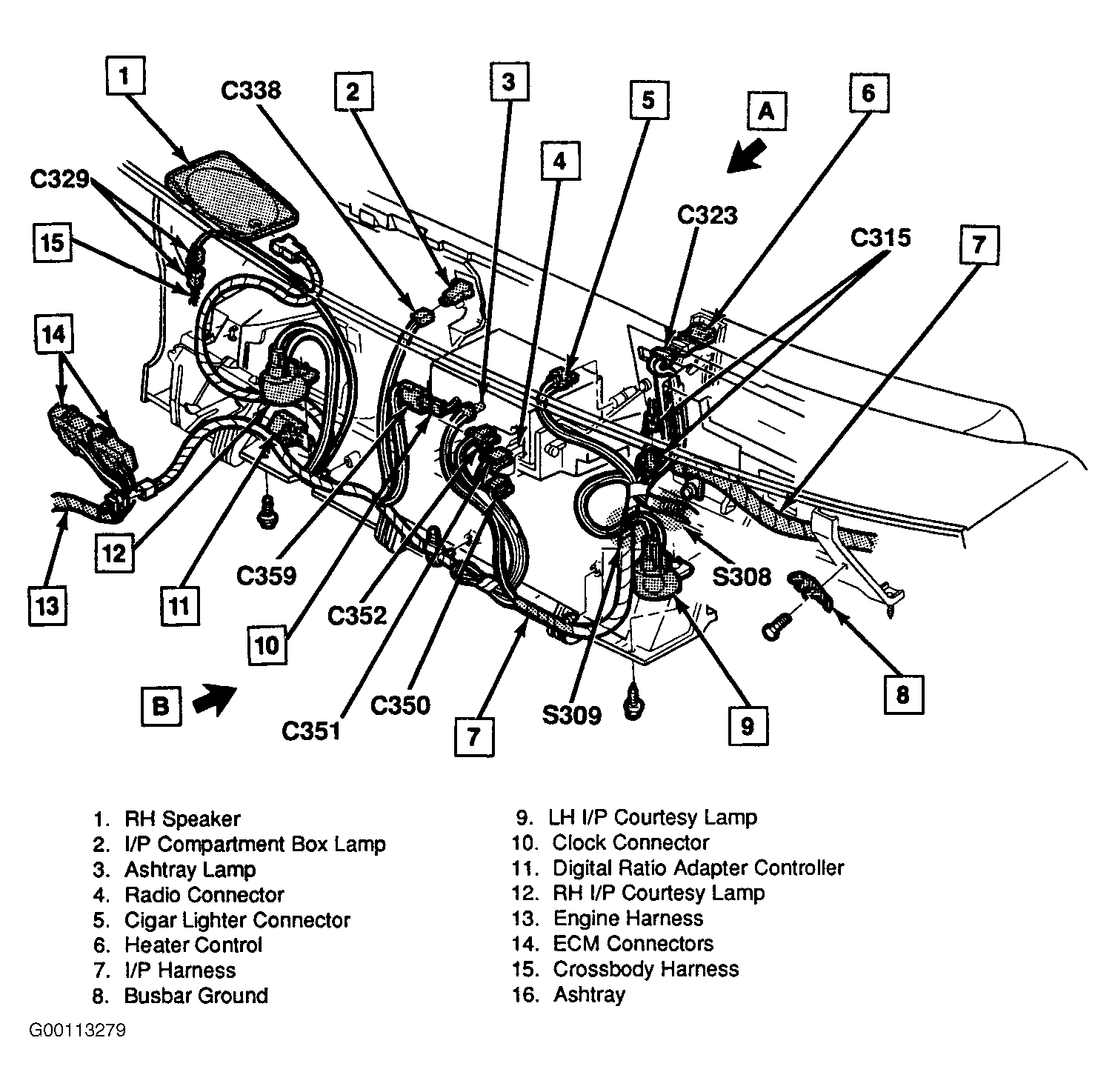

| Busbar Ground | Left hand side of instrument panel Fig 1 |

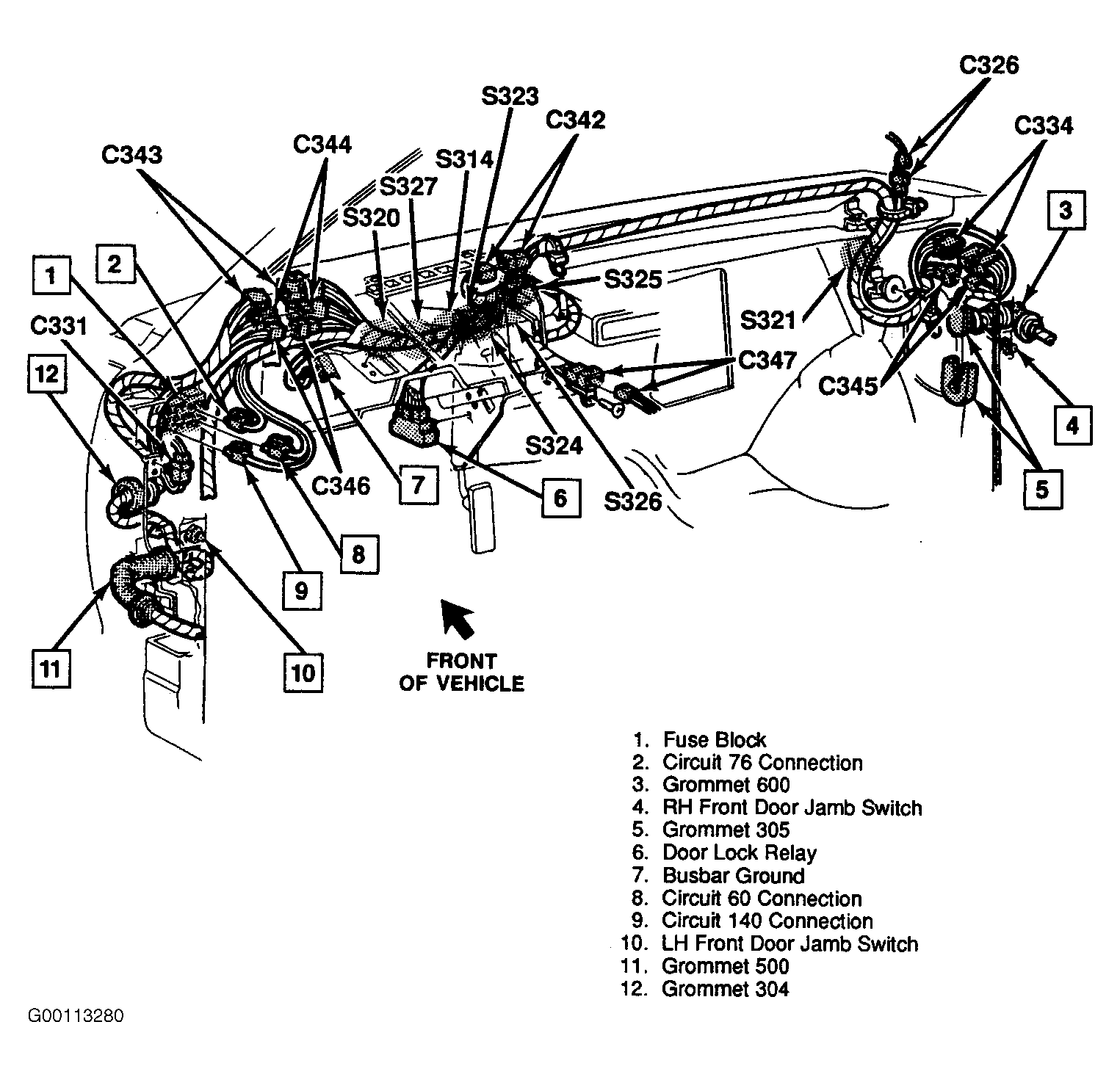

| Fuse Block | Left hand side of instrument panel Fig 2 |

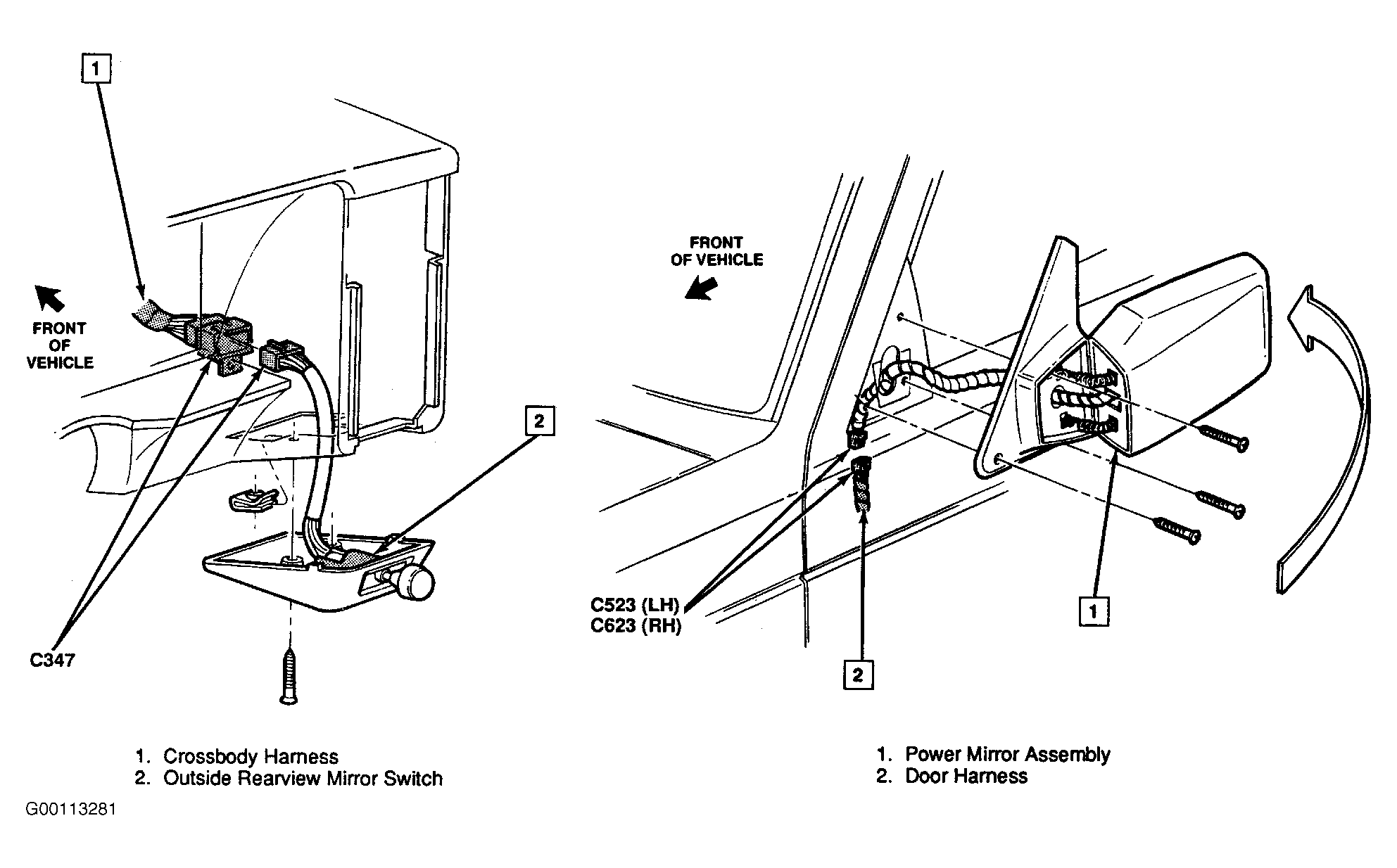

| Power Mirror | In respective door Fig 3 |
| Power Mirror Switch | Lower right hand side of instrument cluster Fig 3 |
| C342 | Behind center of instrument panel Fig 2 |
| C345 | Right hand cowl side panel Fig 2 |
| C346 | Left hand cowl side panel Fig 2 |
| C347 | Behind center of instrument panel Fig 2 |
| C523 | In left hand door Fig 3 |
| C623 | In right hand door Fig 3 |
| Grommet 304 | Left hand cowl side panel Fig 2 |
| Grommet 305 | Right hand cowl side panel Fig 2 |
| Grommet 500 | Left hand A pillar Fig 2 |
| Grommet 600 | Right hand A pillar Fig 2 |
| S320 | Behind left hand side of instrument panel Fig 2 |
| S321 | Behind right hand side of instrument panel Fig 2 |
| S322 | Behind left hand side of instrument panel Fig 2 |
