Component Locations
COMPONENT LOCATIONS

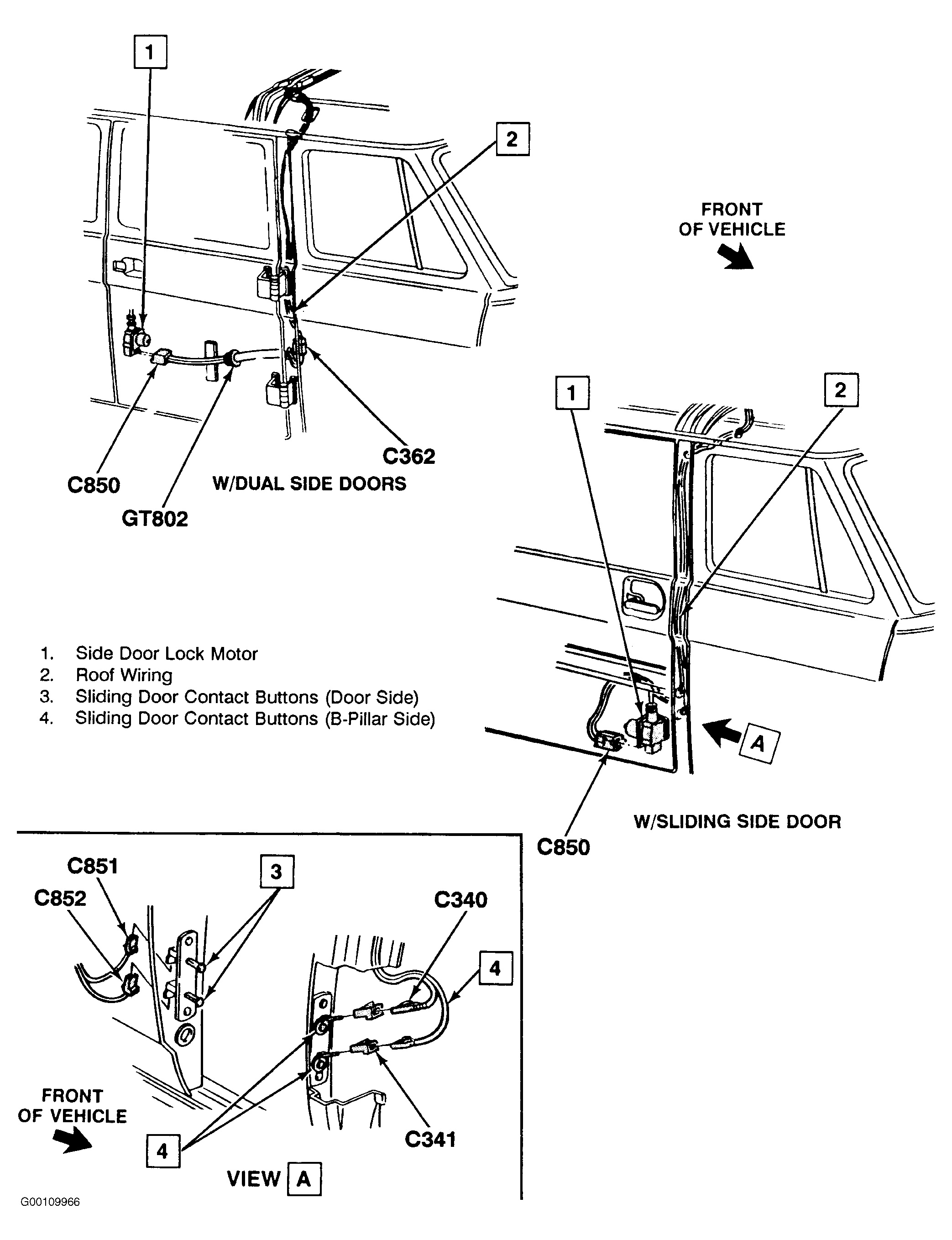

| Component | Location | |
|---|---|---|
| Busbar ground | Near Fuse Block | |
| Door Lock Delay Module (For Sliding door only) | Behind I/P, RH Side of Steering Column. See Fig 5 . | |
| Door Lock Delay Relay (for sliding door only) | Behind LH Side of I/P | |
| Door Lock Motor, LH Front | In LH Door | |
| Door Lock Motor, RH Front | In RH Door | |
| Door Lock Motor, Side | In Side Door | |
| Door Lock Motor, Rear | In Rear door | |

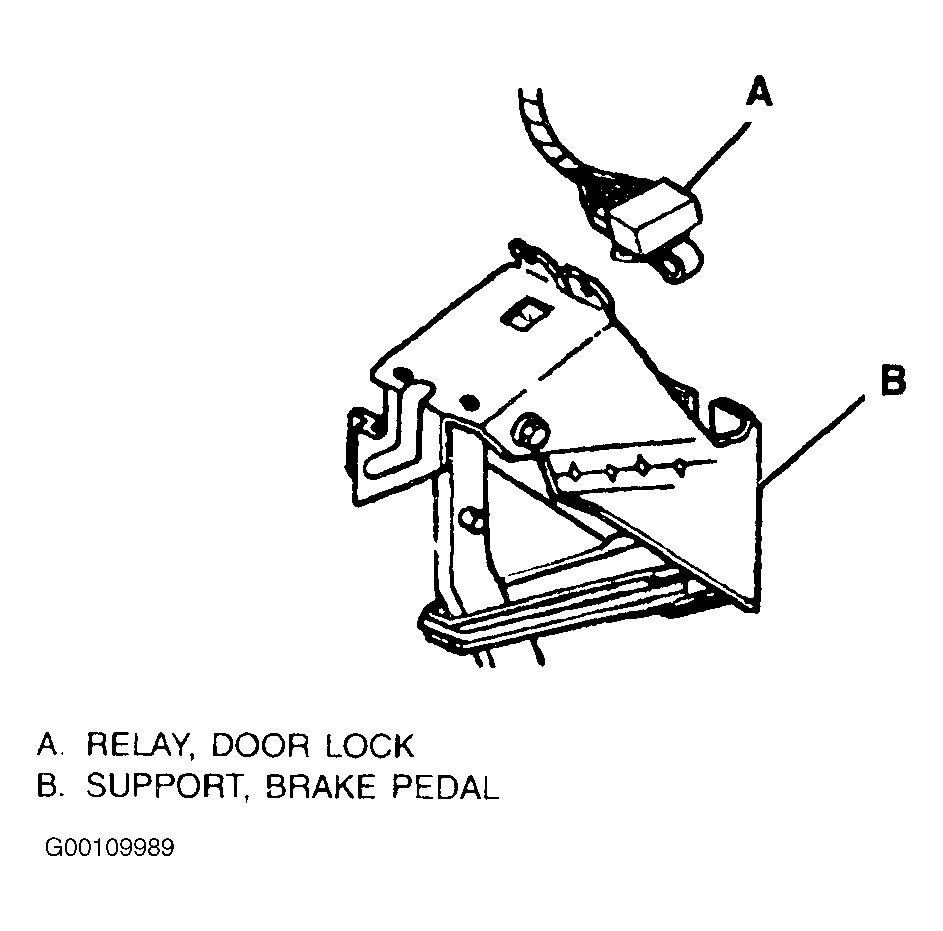

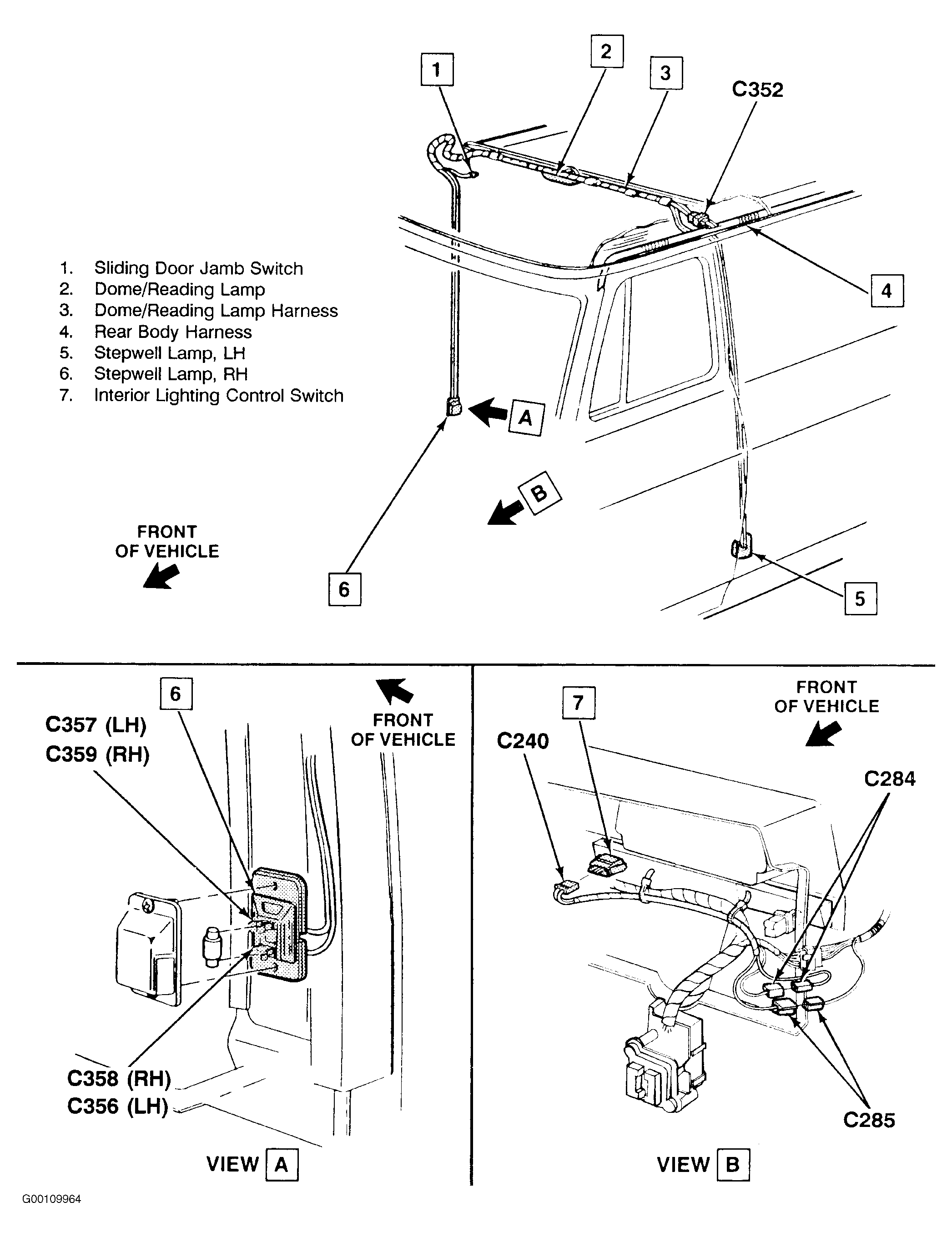

| Door Lock Relay | Behind LH Side of I/P. See Figure . | |
| Door Lock Switch, LH | In Door Trim Panel | |
| Door Lock Switch, RH | In Door Trim Panel | |
| Fuse Block | Behind LH Side of I/P | |
| Sliding Door Contact Buttons (for sliding door only) | At Rear of RH B-pillar | |
| Sliding Side Door Jamb Switch (for sliding door only) | RH Side of Vehicle | |
| Connectors | ||
| C213 | Inside LH Side of Cowl Panel | |

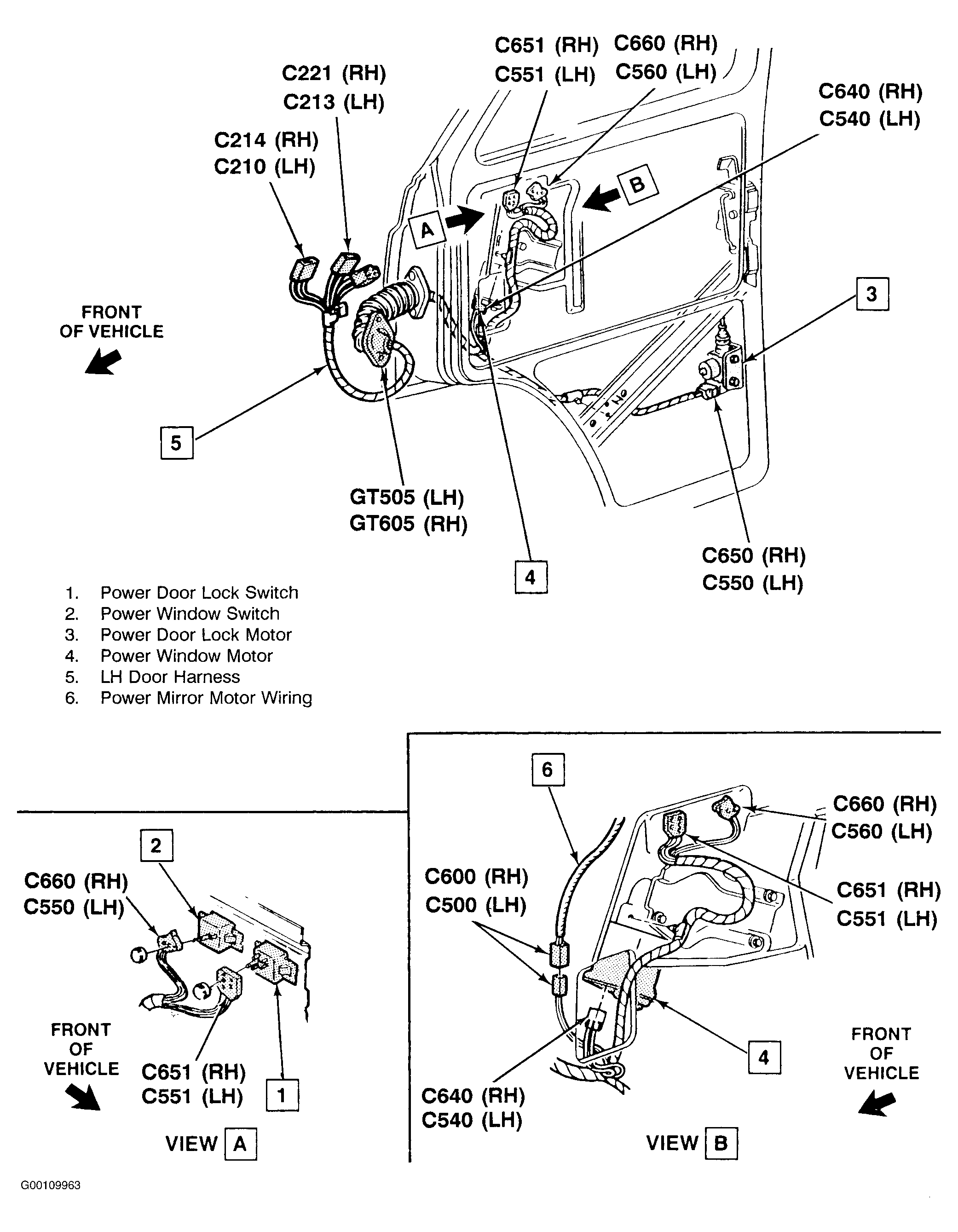

| C221 | Inside RH Side of Cowl Panel. See Figure . | |
| C279 | Inside LH Side of Cowl. See Fig 5 . | |

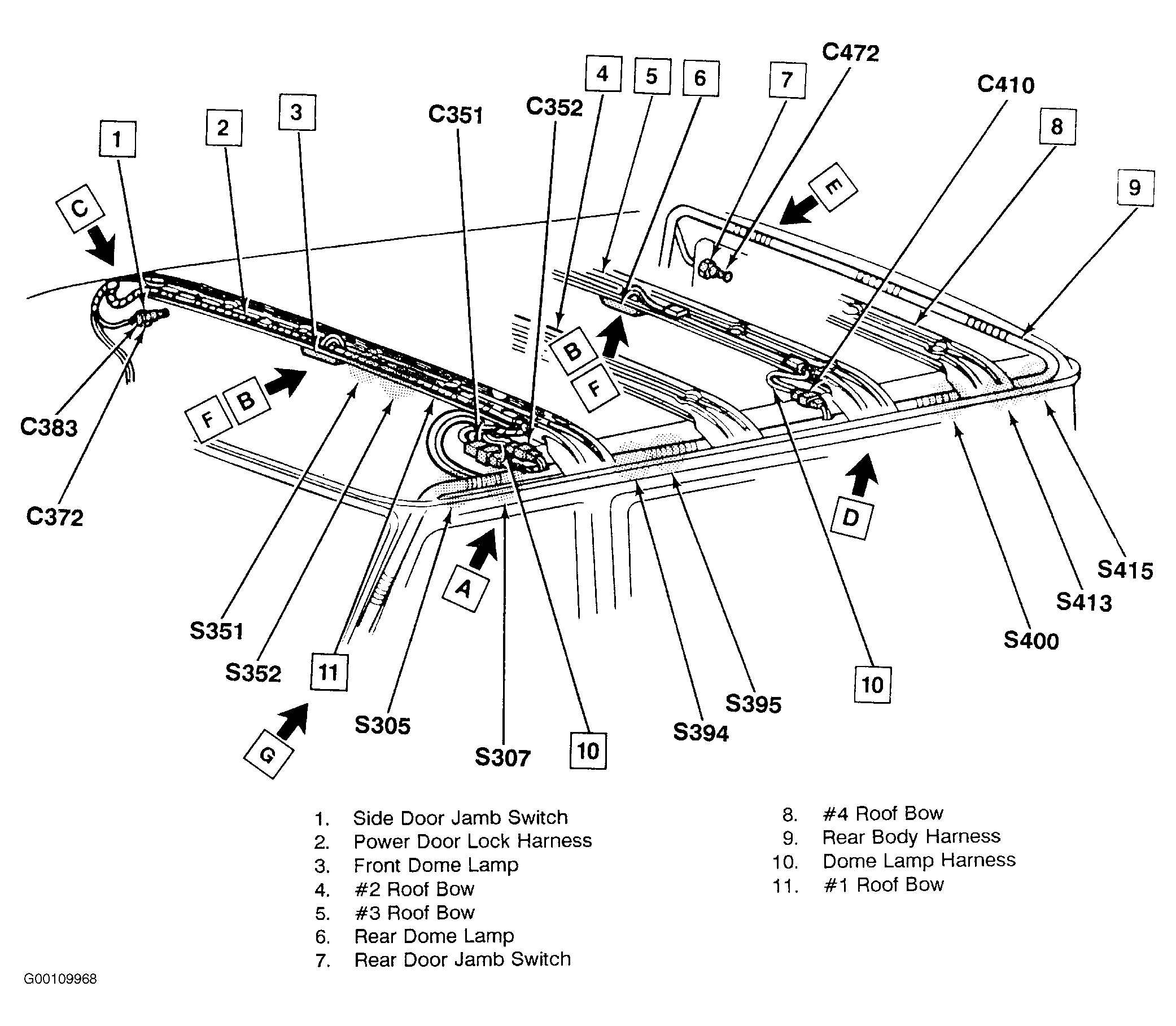

| C351 | LH Side of Roof Panel, Near No. 1 Roof Bow. See Fig 6 . | |
| C362 (for swing out door only) | Inside Lower RH B-pillar | |

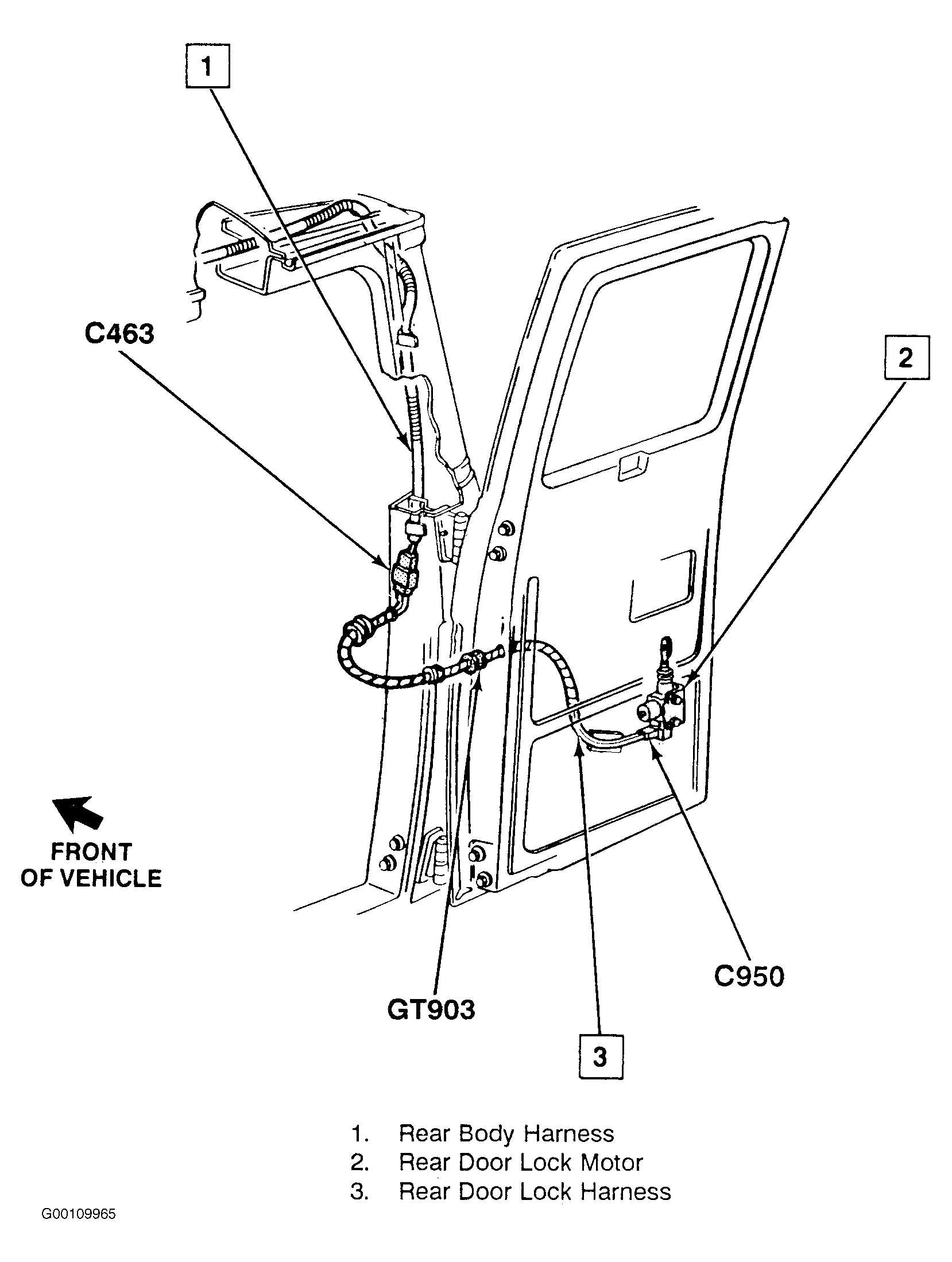

| C463 | Behind RH Rear Door Jamb. See Fig 3 . | |
| Grommets | ||
| GT 505 | On LH Front Door | |
| GT 605 | On RH Front Door | |
| GT802 (for swing out door only) | On Side Door | |
| GT 903 | At RH Rear Door. See Fig 3 . | |
| Grounds | ||
| G201 | At Busbar Ground. See Figure . | |
| Splices | ||
| S240 | LH Side of I/P, Above Fuse Block (For Sliding Door Only), Near Door Lock Relay (For Swing Out Door Only). See Fig 5 . | |
| S242 | RH Side of Steering Column, Near Power Door Lock Delay Module. See Fig 5 . | |
| S243 | RH Side of Steering Column, Near Power Door Lock Delay Module. See Fig 5 . | |
| S251 (For Sliding Door Only) | RH Side of Steering Column, Near Power Door Lock Delay Module. See Fig 5 . | |
| S280 | Above Steering Column, Near Door Lock Relay | |
| S281 | Above Steering Column, Near Door Relay | |
| S394 | In Body Wiring Harness, Near No. 2 Roof Bow. See Fig 6 . | |
| S395 | In Body Wiring Harness, Near No. 2 Roof Bow. See Fig 6 . | |
