Magnavan 7.4 N
›
Repair and Diagnosis
›
Body & Frame
›
Power Door Locks
›
Trouble Shooting
Trouble Shooting

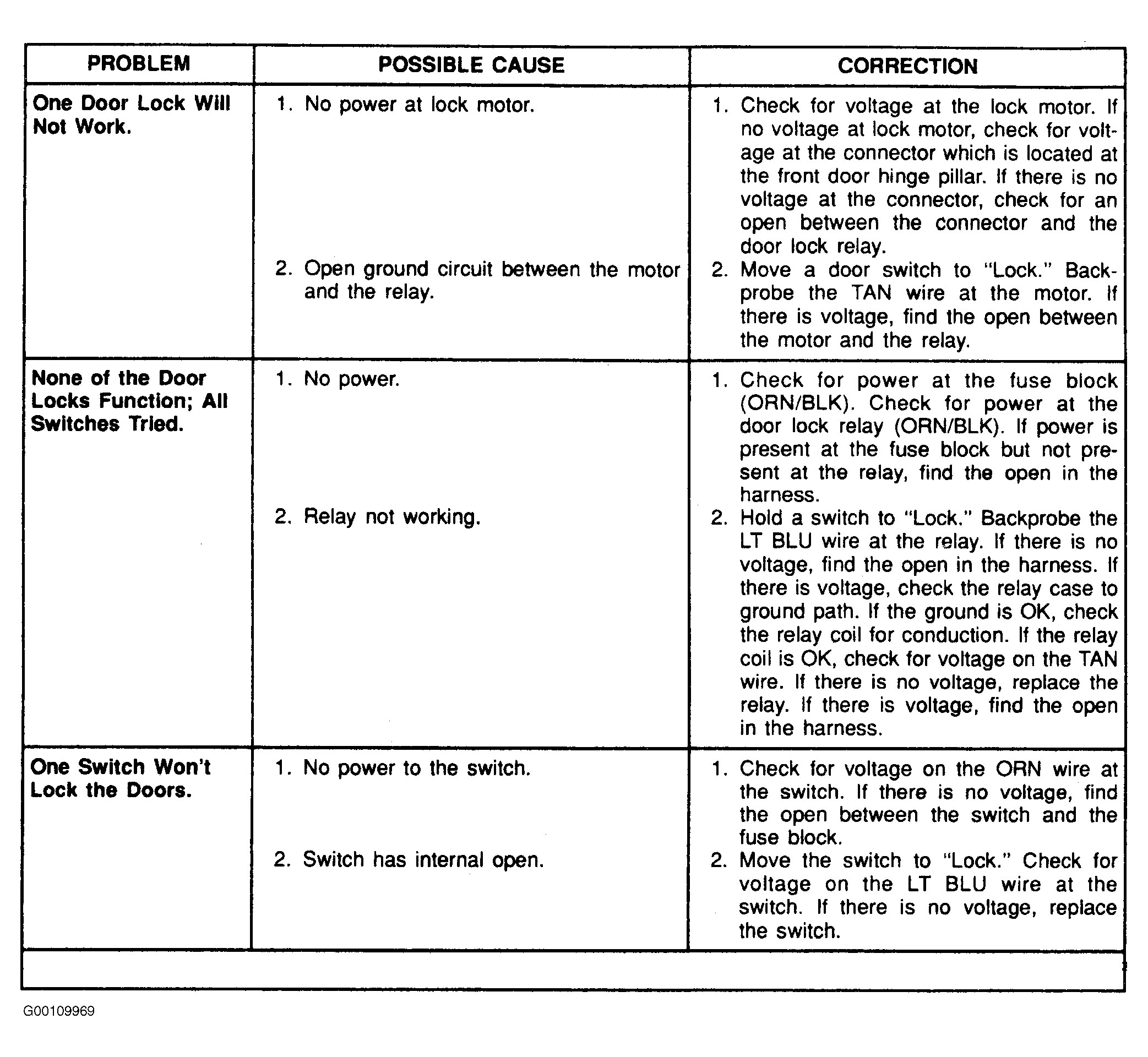

Fig 1: Diagnosis Of Power Door Lock
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
