Trouble Shooting & Testing

NOTE: For more information on electric cooling fan trouble shooting and testing, proceed to SYSTEM/COMPONENT TESTS - GASOLINE or SYSTEM/COMPONENT TESTS - 6.5L DIESEL article in ENGINE PERFORMANCE section

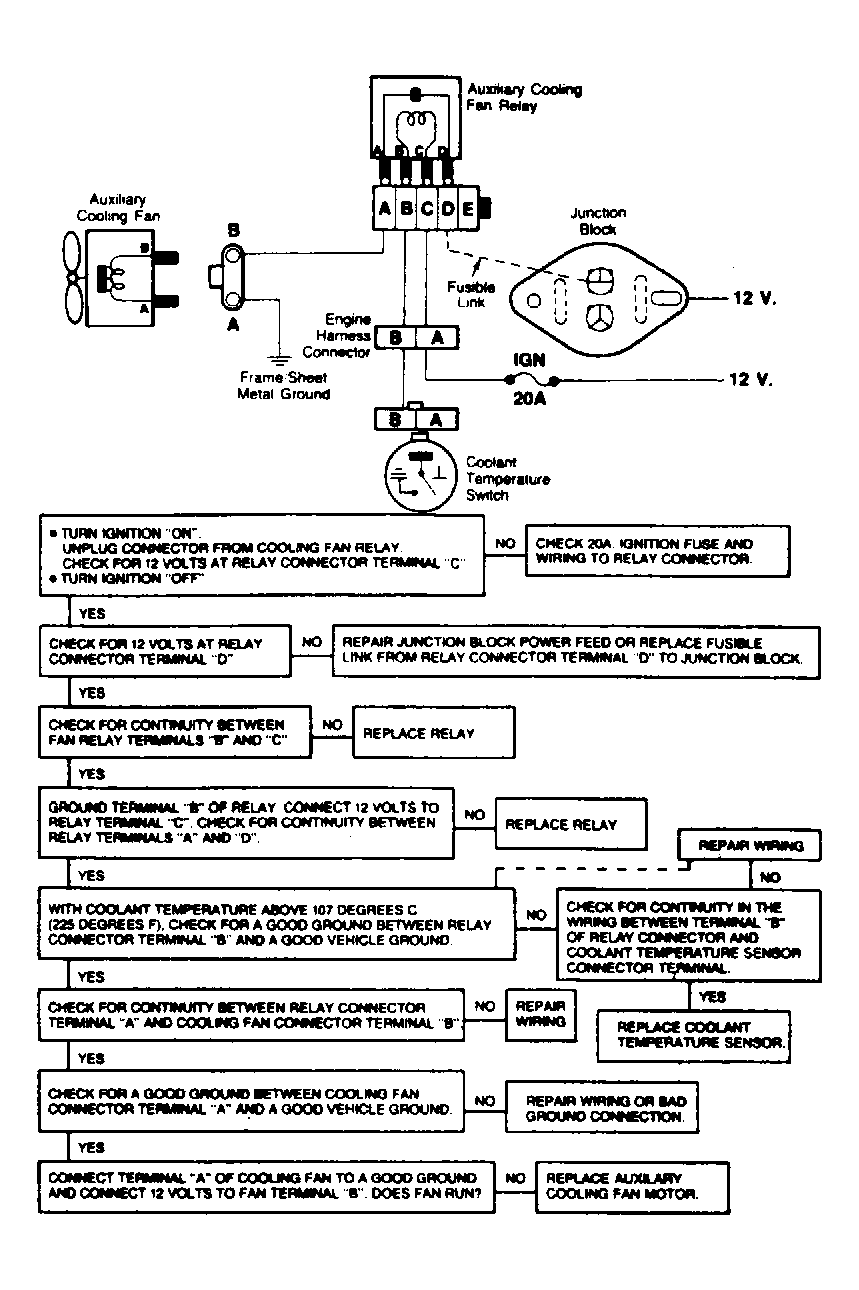

Fig 1: Cooling Fan Circuit Diagram & System Diagnosis

Courtesy of GENERAL MOTORS CORP.
