Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Bus Bar Ground | Behind Left Side Of Instrument Panel, On Steering Column Bracket |
| Fuse Block | Behind Left Side Of Instrument Panel |

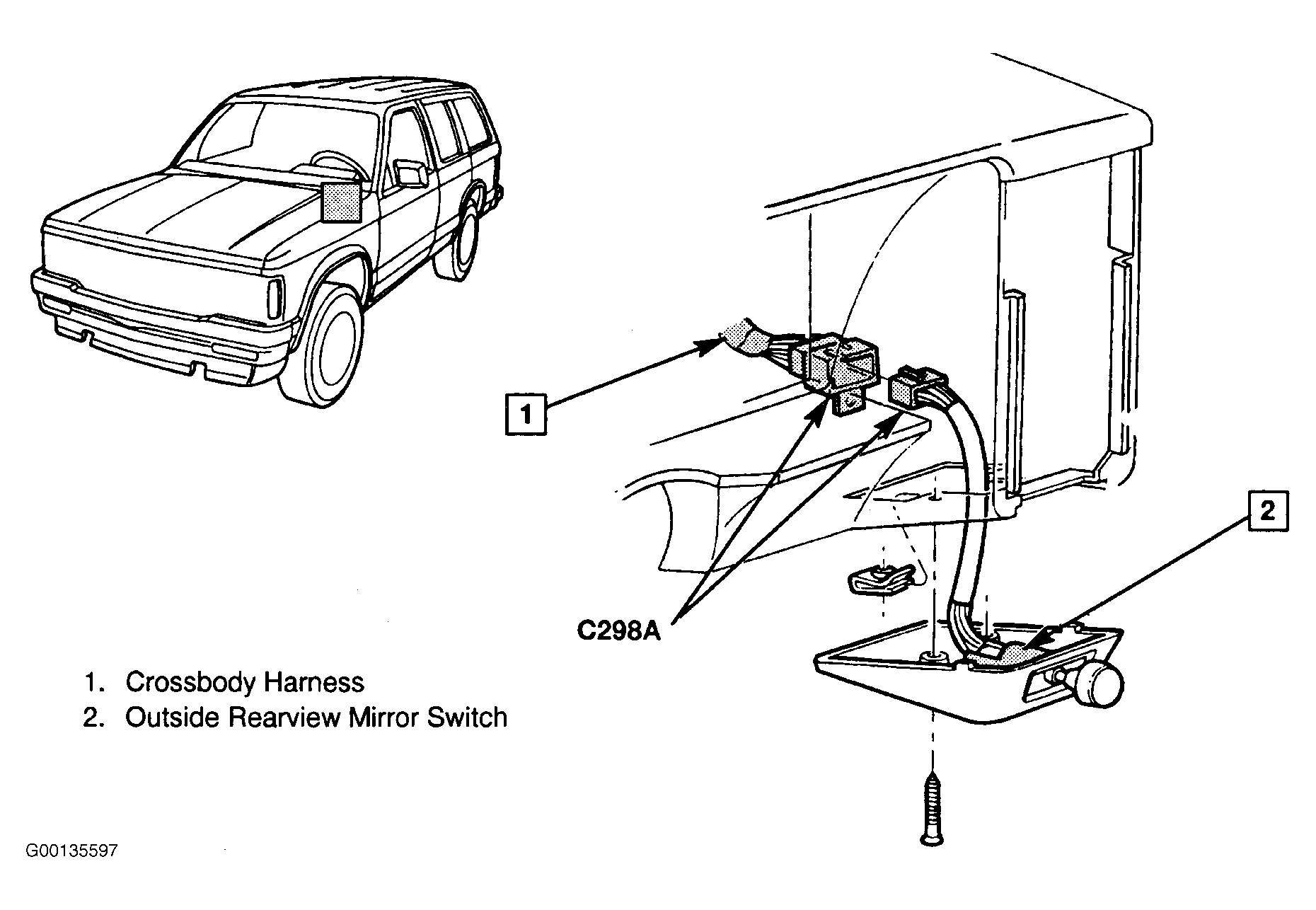

| Outside Rearview Mirror Switch | Below Heater-A/C Controller. See Fig 1 . |

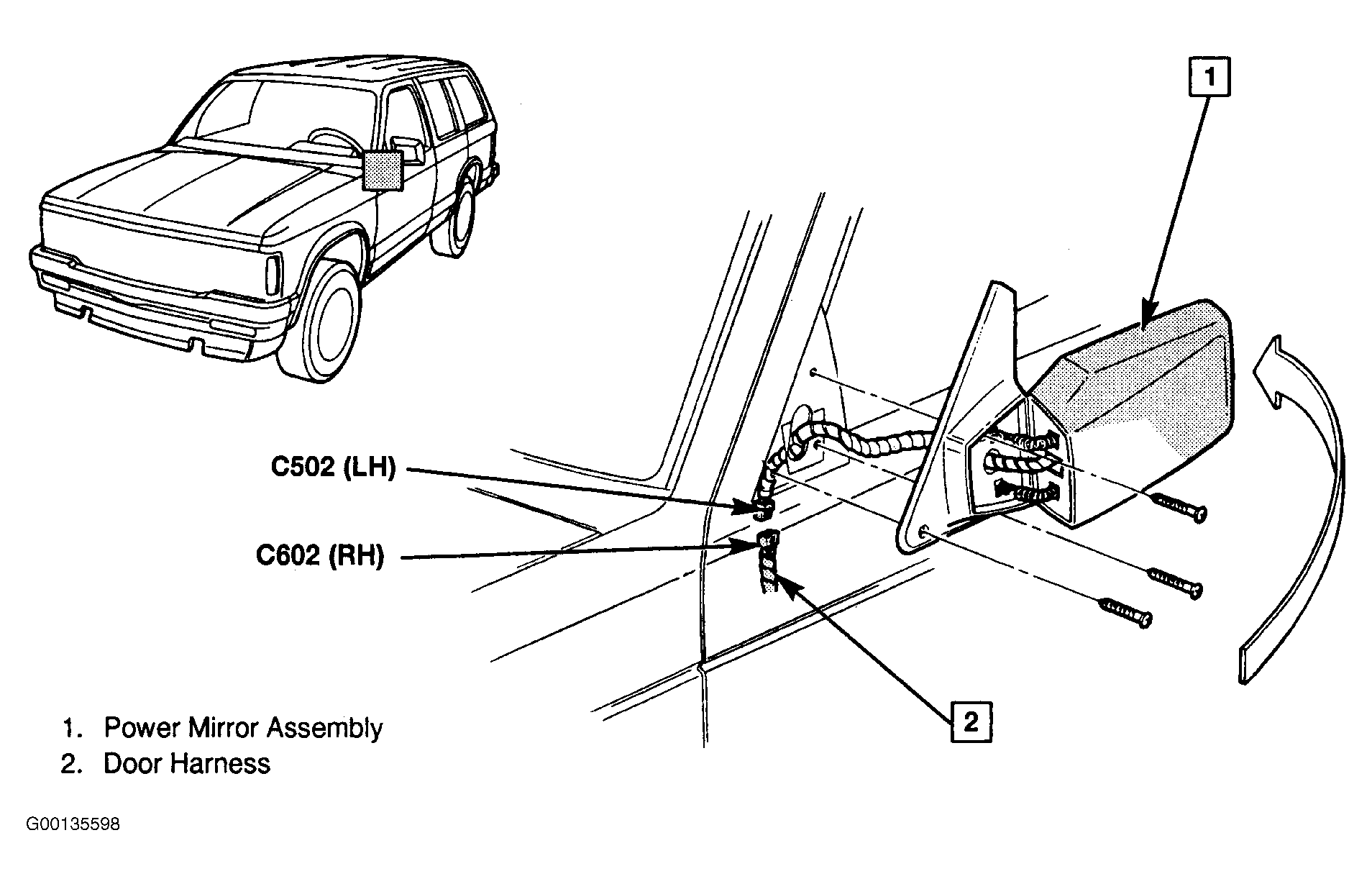

| Power Mirror | In Respective Door |

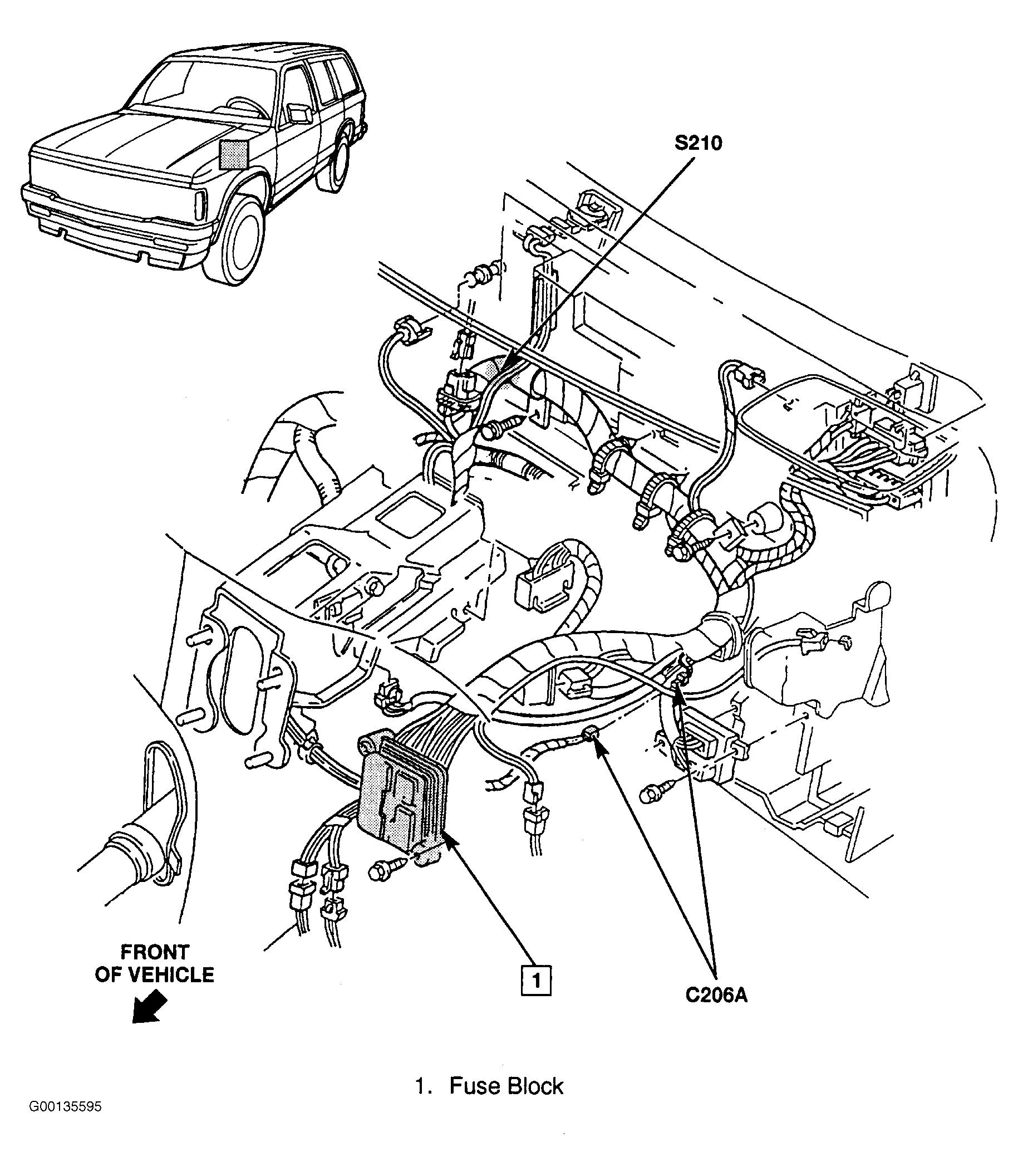

| C206A | Behind Left Side Of Instrument Panel, Above Brake Pedal Support Bracket. See Fig 2 . |
| C295 | Behind Right Side Of Instrument Panel |
| C296 | Behind Left Side Of Instrument Panel |
| C296A | Behind Left Side Of Instrument Panel, At Kick Panel |
| C297 | Behind Right Side Of Instrument Panel, At Kick Panel |
| C298 | Behind Center Of Instrument Panel |
| P300 | Left Cowl Side Panel |
| P301 | Right Cowl Side Panel |

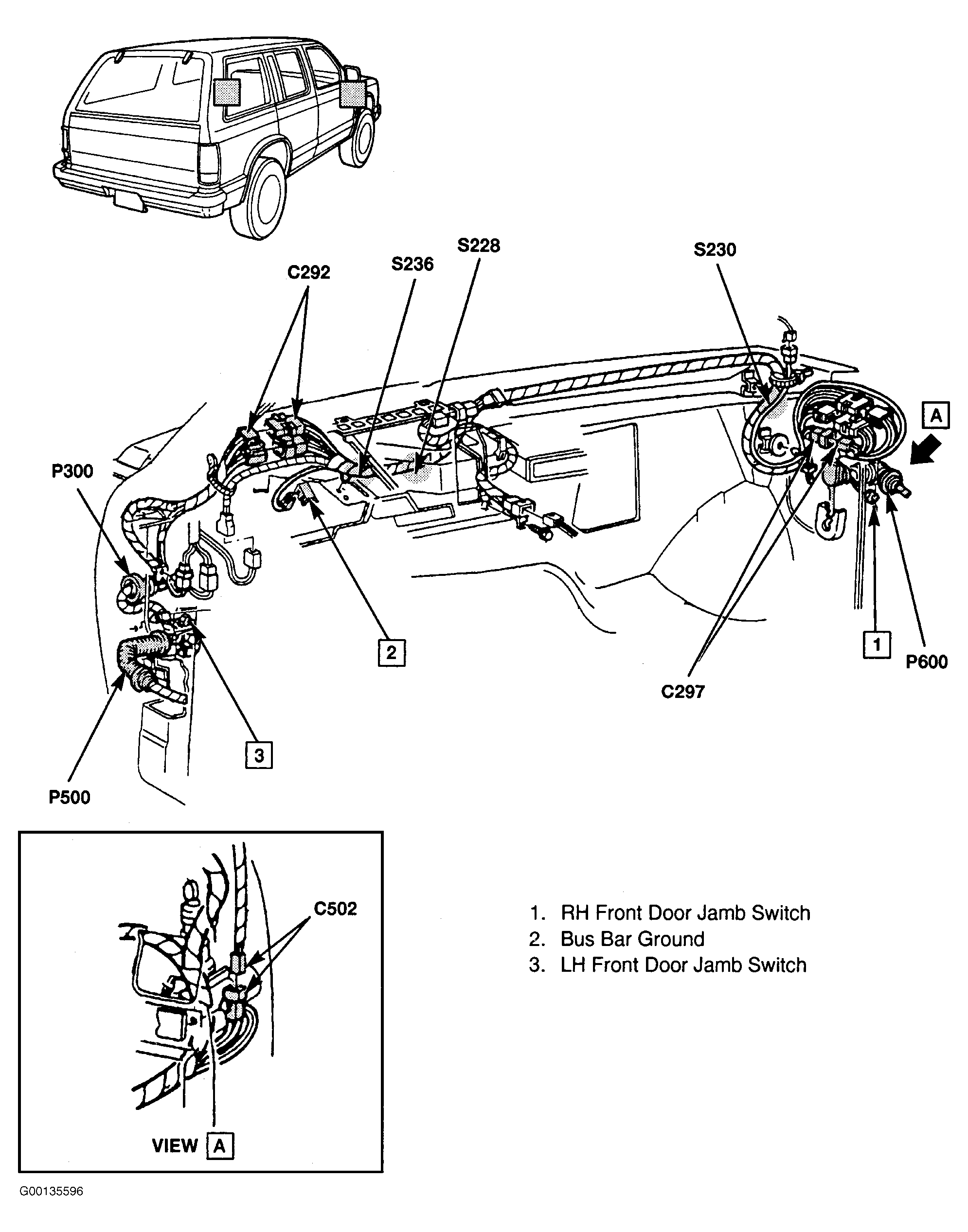

| P500 | Left A-Pillar. See Fig 3 . |
| P600 | Right A-Pillar |
| S210 | Behind Left Side Of Instrument Panel, Near Instrument Panel Cluster. See Fig 2 . |
| S228 | Behind Left Side Of Instrument Panel, Near Bus Bar Ground. See Fig 3 . |
| S230 | Behind Right Side Of Instrument Panel, Above Kick Panel. See Fig 3 . |
| S236 | Behind Left Center Of Instrument Panel, Near Bus Bar Ground. See Fig 3 . |
