Diagnostic Aids

Check all connections, especially those at transmission pass-thru connector. Fault may be an internal transmission problem.

Fig 1: Code 87 Schematic (All Models) High Gear Ratio Error

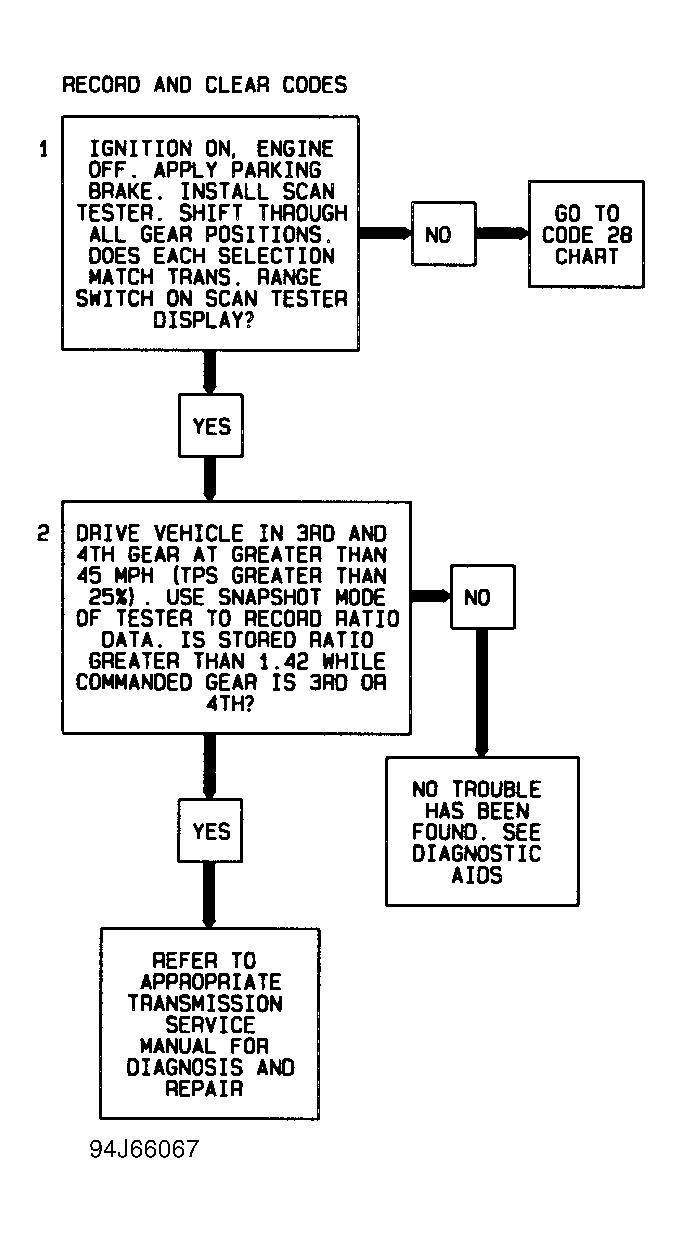

Fig 2: Code 87 Flow Chart (All Models) High Gear Ratio Error
