Section 82 (Air Bag Restraint System)
›
Testing - Diagnostic Charts
›
Test 1A- Testing System Function
Test 1A- Testing System Function
WARNING:
This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

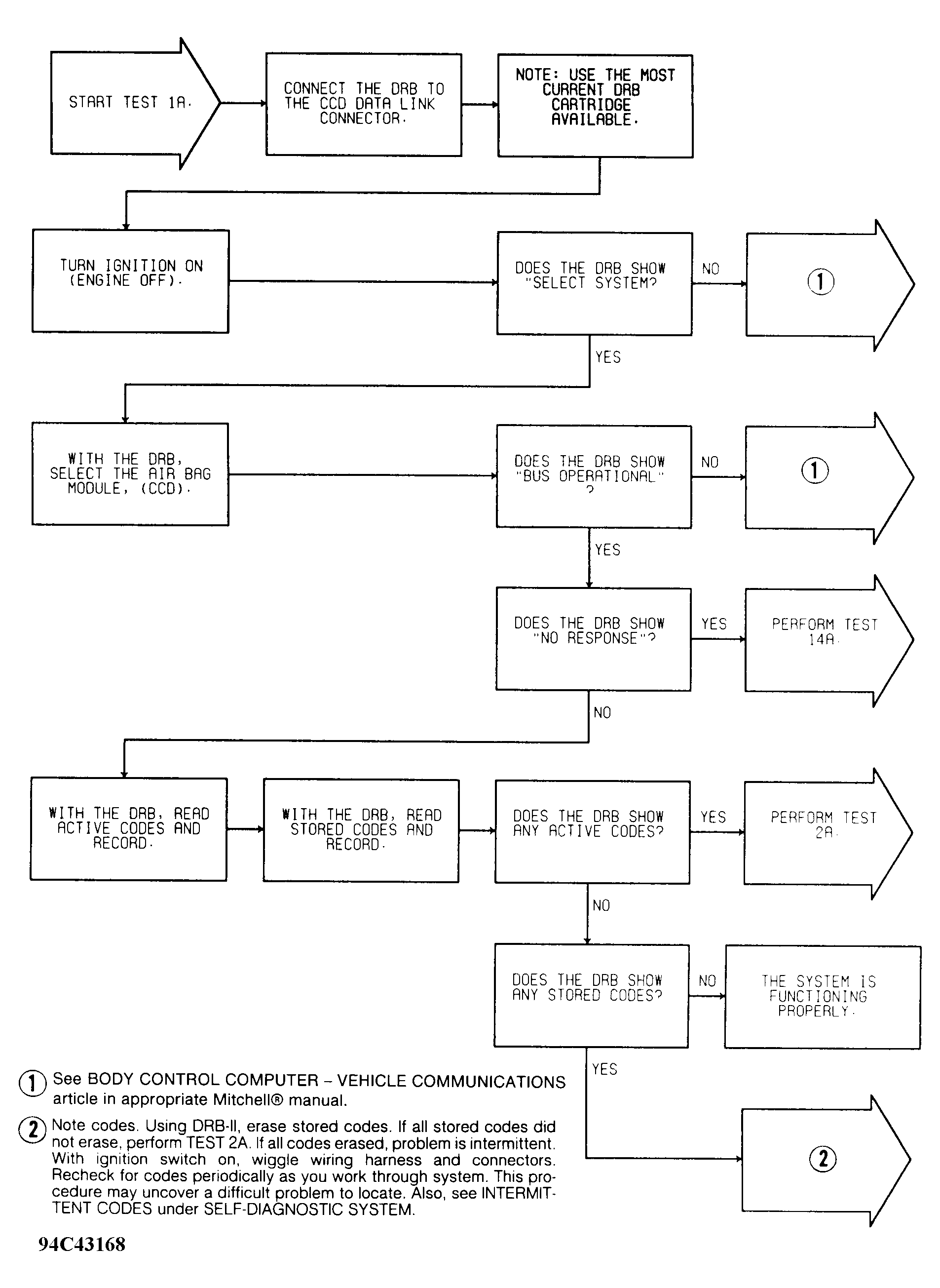

Fig 1: Test 1A - Testing System Function
Courtesy of CHRYSLER CORP.
