UART Data Line Diagnosis

Refer to flowchart. See Fig 1 .

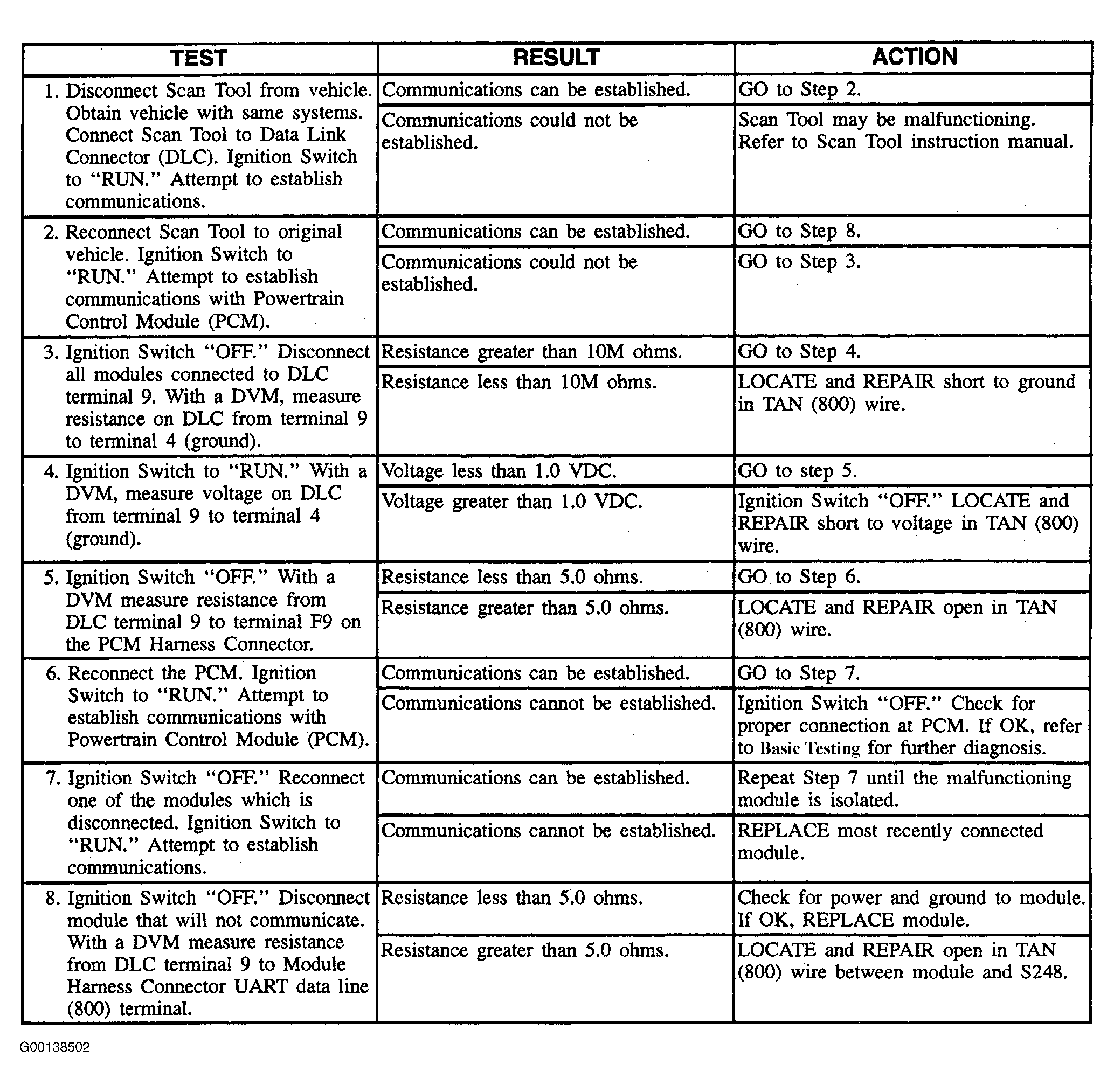

Fig 1: UART Data Line Diagnostic Flowchart
G00138502Courtesy of GENERAL MOTORS CORP.
