Code 36 - Rear Speed Sensor Signal Missing: Notes

Code 36 is caused by a loss of Vehicle Speed Sensor (VSS) signal. Code is set if VCM loses VSS signal while vehicle speed is greater than 8 MPH for at least 5 seconds. Code 36 may be caused by a faulty VSS or fault in related circuits.

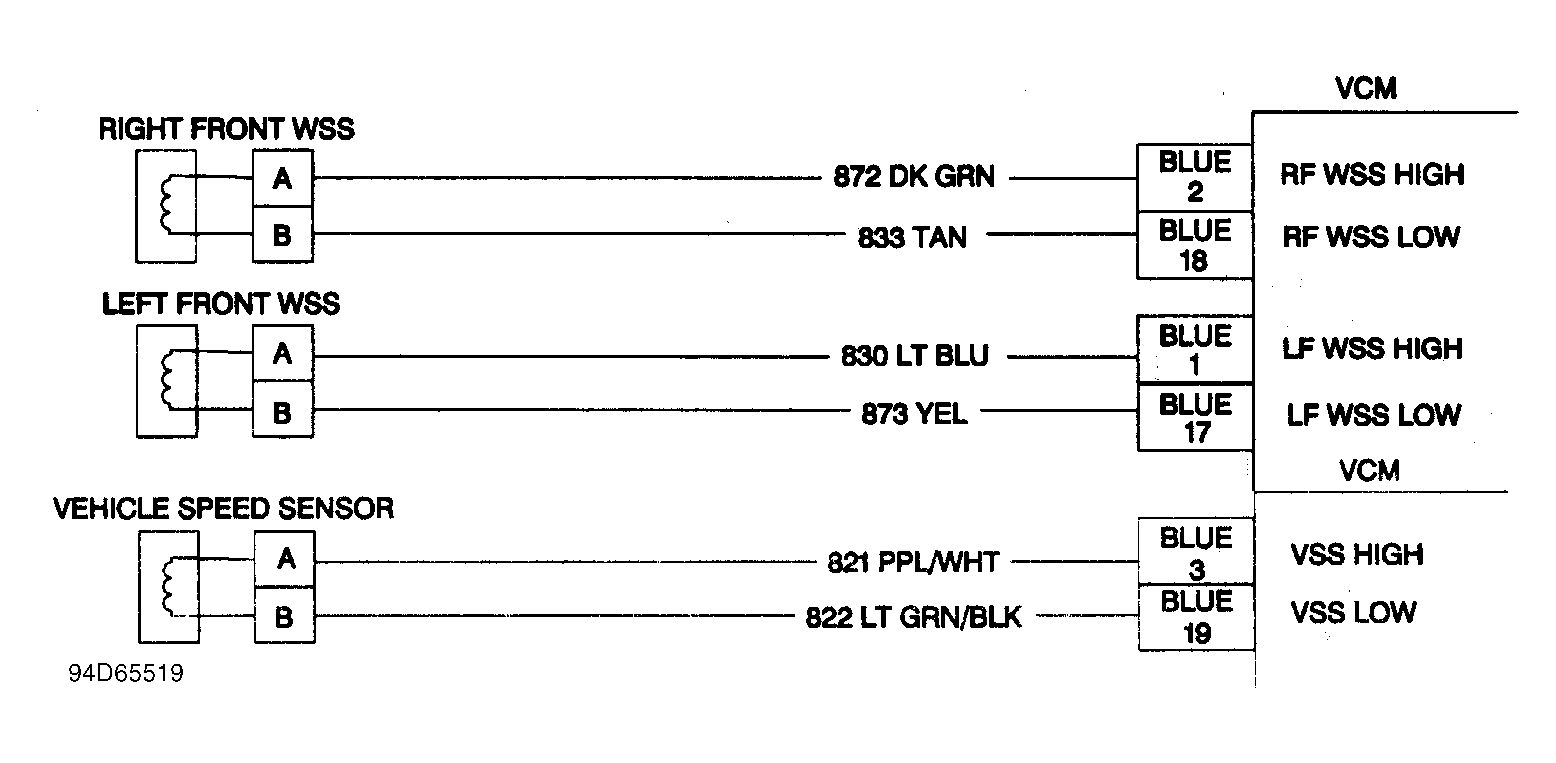

Fig 1: Wheel/Vehicle Speed Sensors Schematics (4.3L M/T - VIN Z)

Courtesy of GENERAL MOTORS CORP.

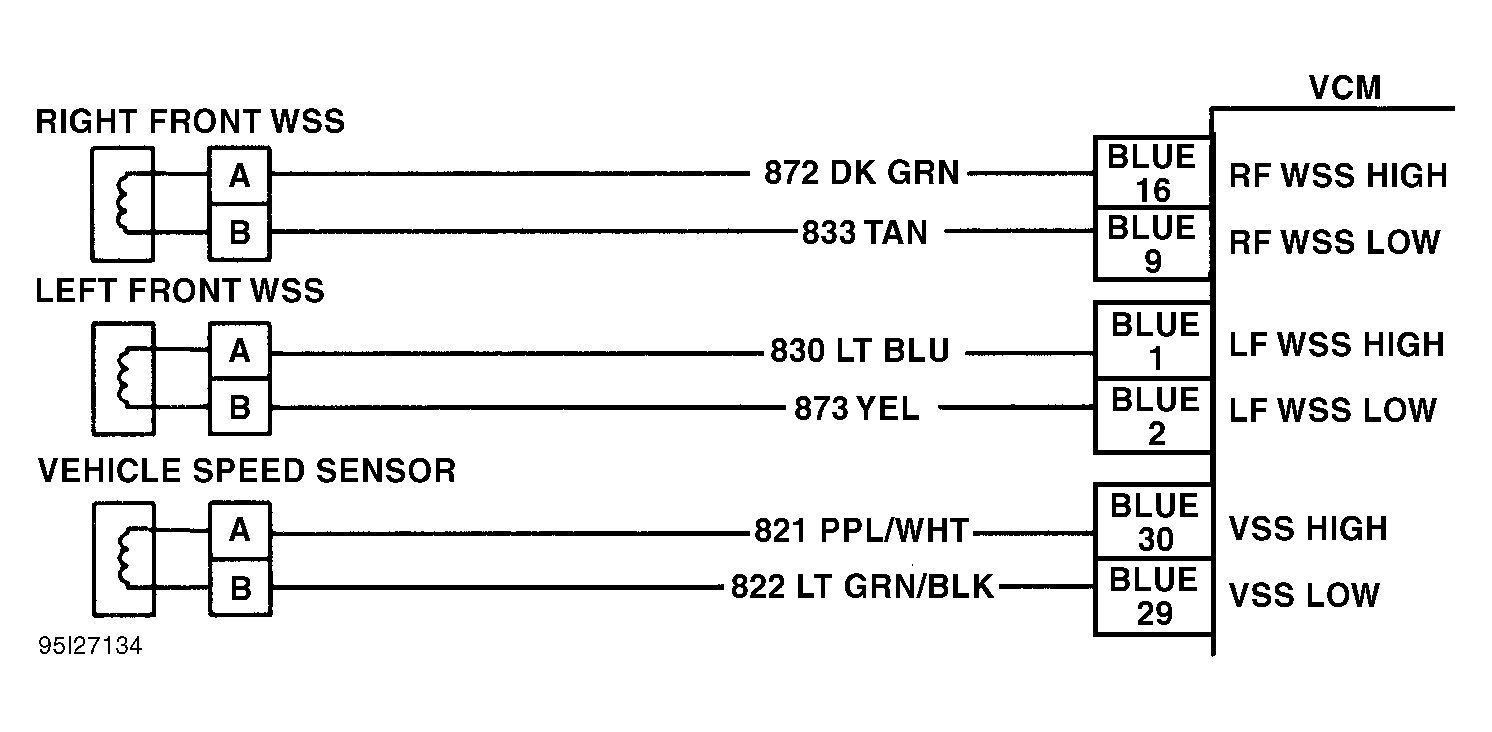

Fig 2: Wheel/Vehicle Speed Sensors Schematics (Except 4.3L M/T - VIN Z)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Code 36 - Rear Speed Sensor (VSS) Signal Missing - Flow Chart

Courtesy of GENERAL MOTORS CORP.
