Component Locations

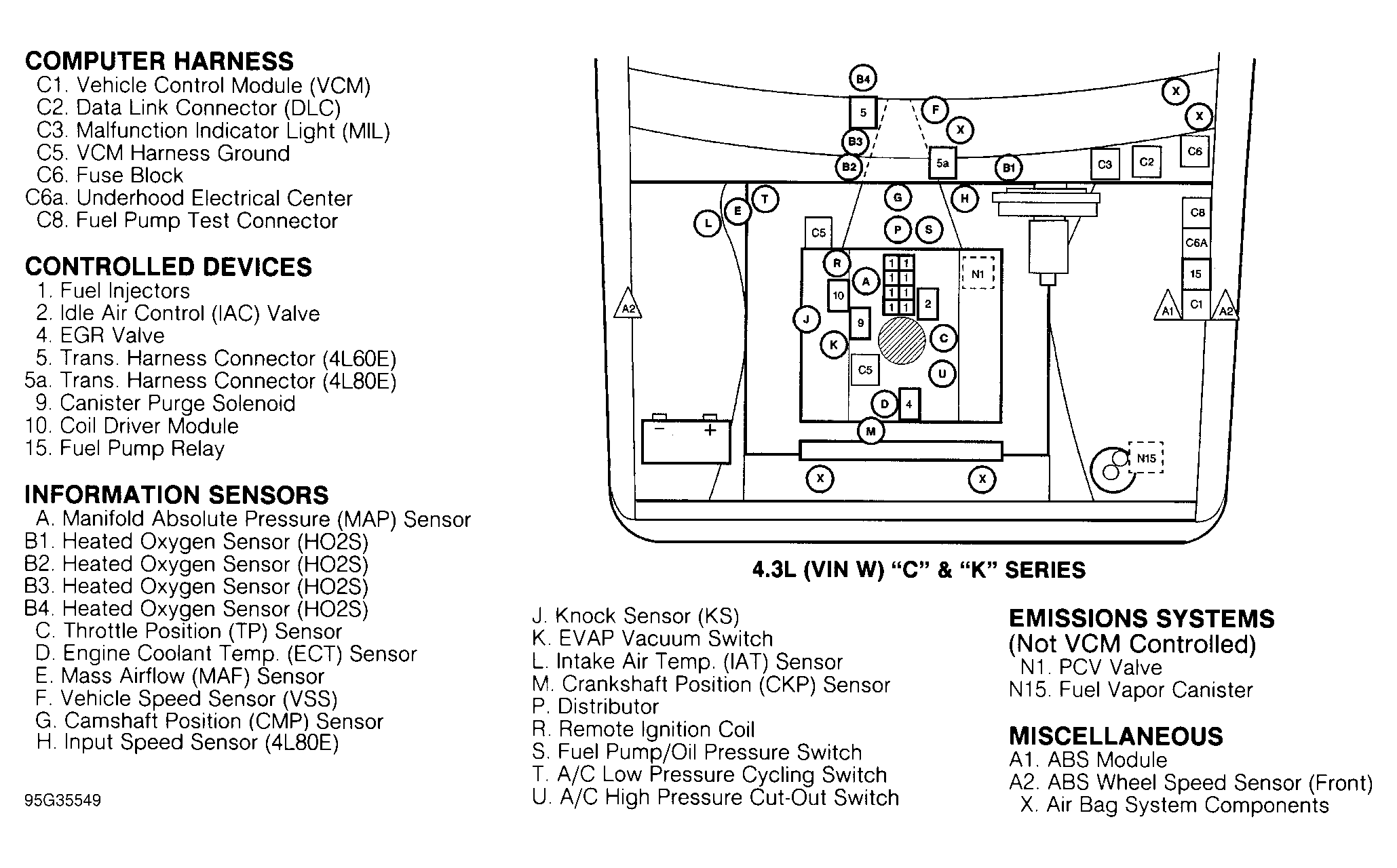

Fig 1: Component Location - 4.3L
G95G35549Courtesy of GENERAL MOTORS CORP.

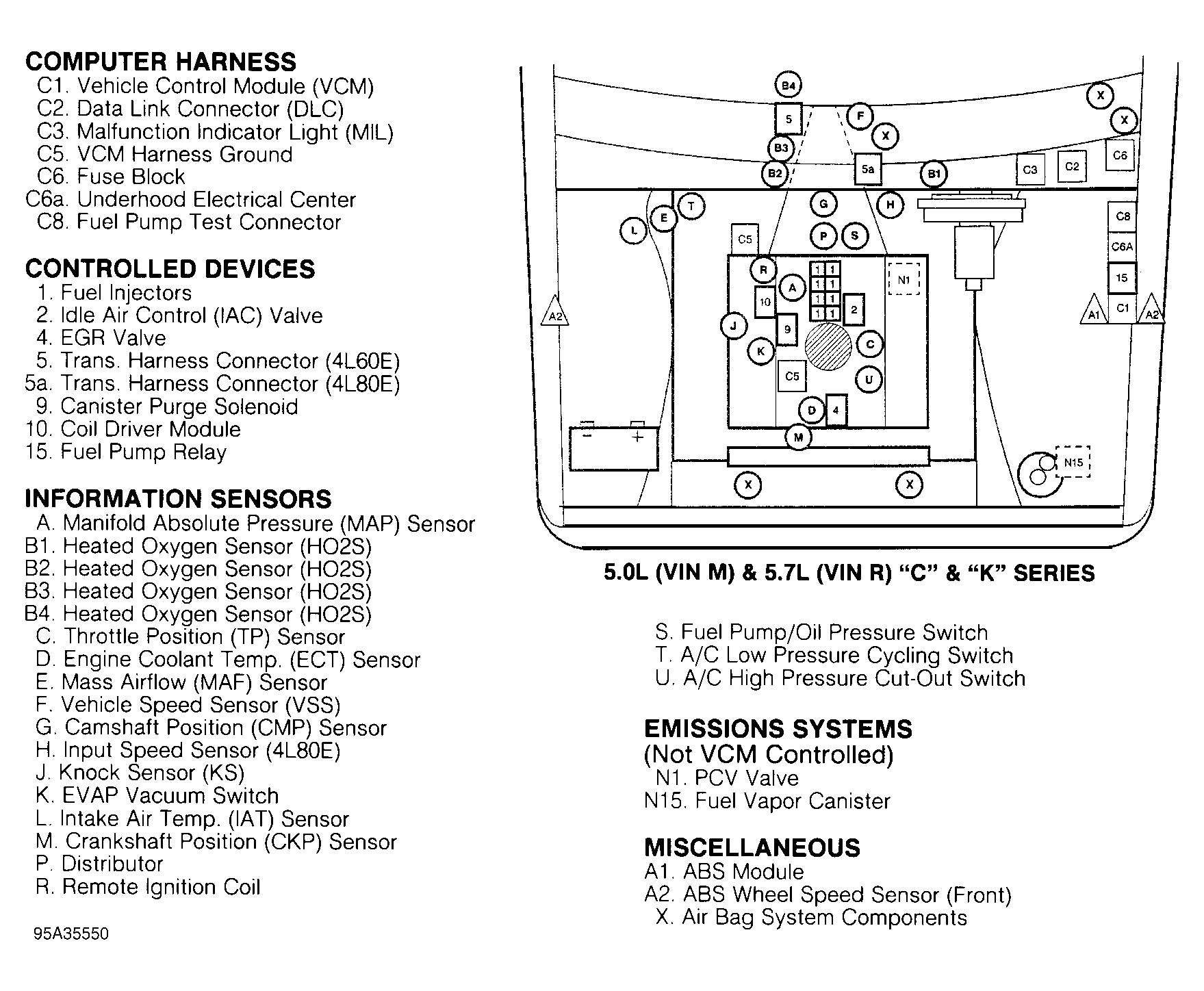

Fig 2: Component Location - 5.0L & 5.7L
G95A35550Courtesy of GENERAL MOTORS CORP.

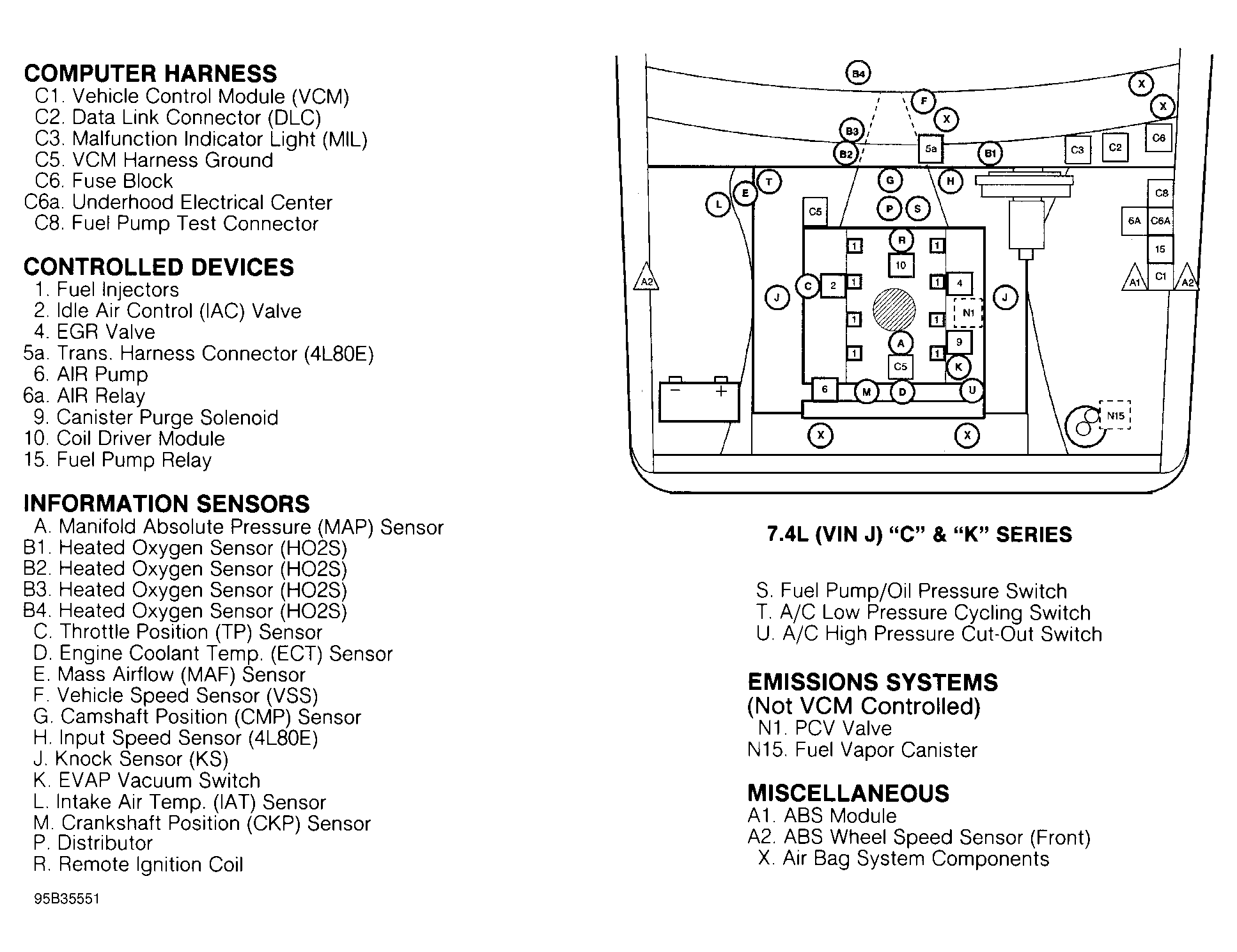

Fig 3: Component Location - 7.4L
G95B35551Courtesy of GENERAL MOTORS CORP.
