Component Locations

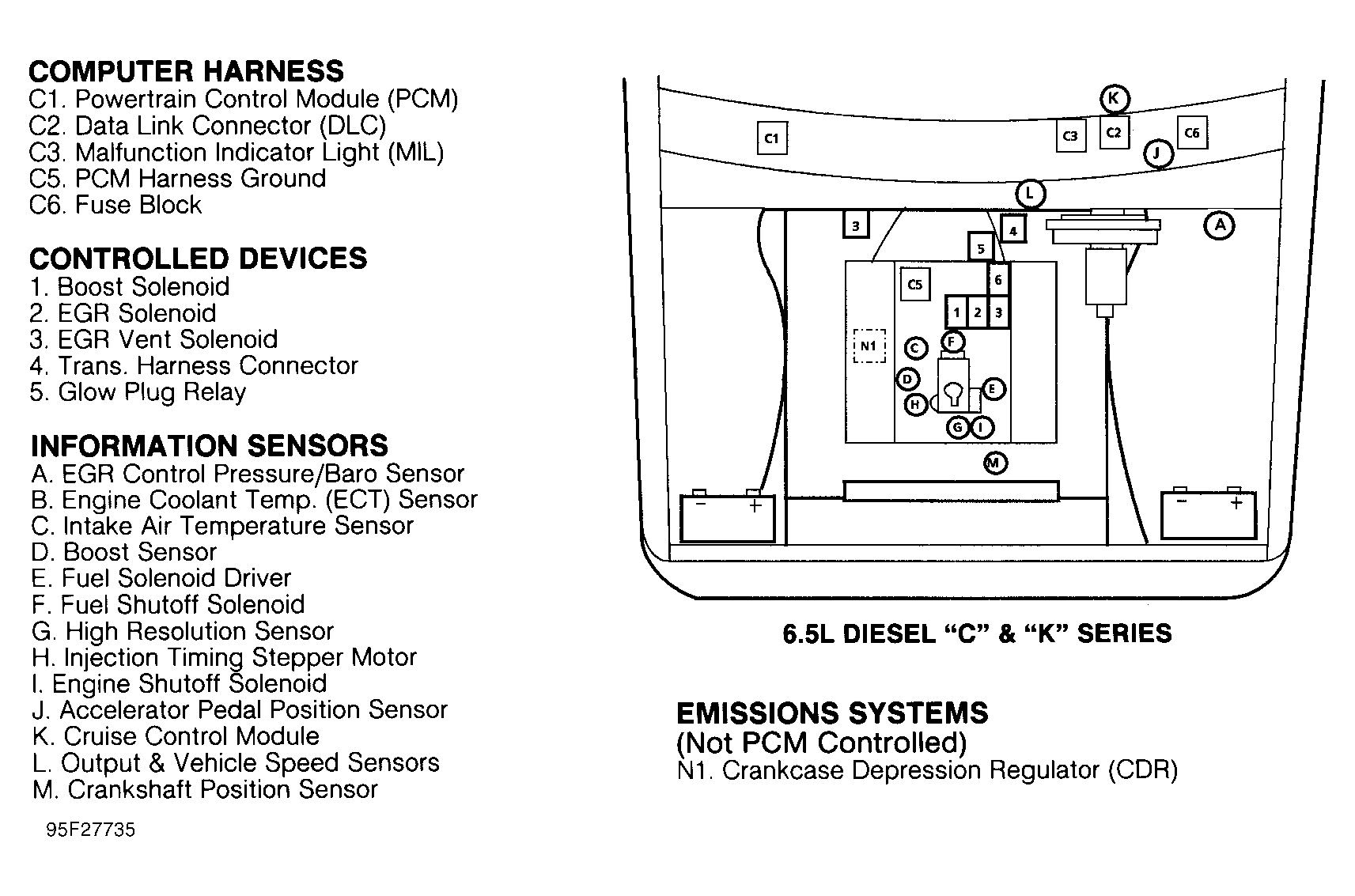

Fig 1: Component Location For 6.5L Diesel "C" & "K" Series
G95F27735Courtesy of GENERAL MOTORS CORP.
Fig 2: Component Location For 6.5L Diesel (VIN P) "G" Series
G94B43498Courtesy of GENERAL MOTORS CORP.
Fig 3: Component Location For 6.5L Diesel (VIN F) "P" Series
G94C43499Courtesy of GENERAL MOTORS CORP.
