Connector Identification

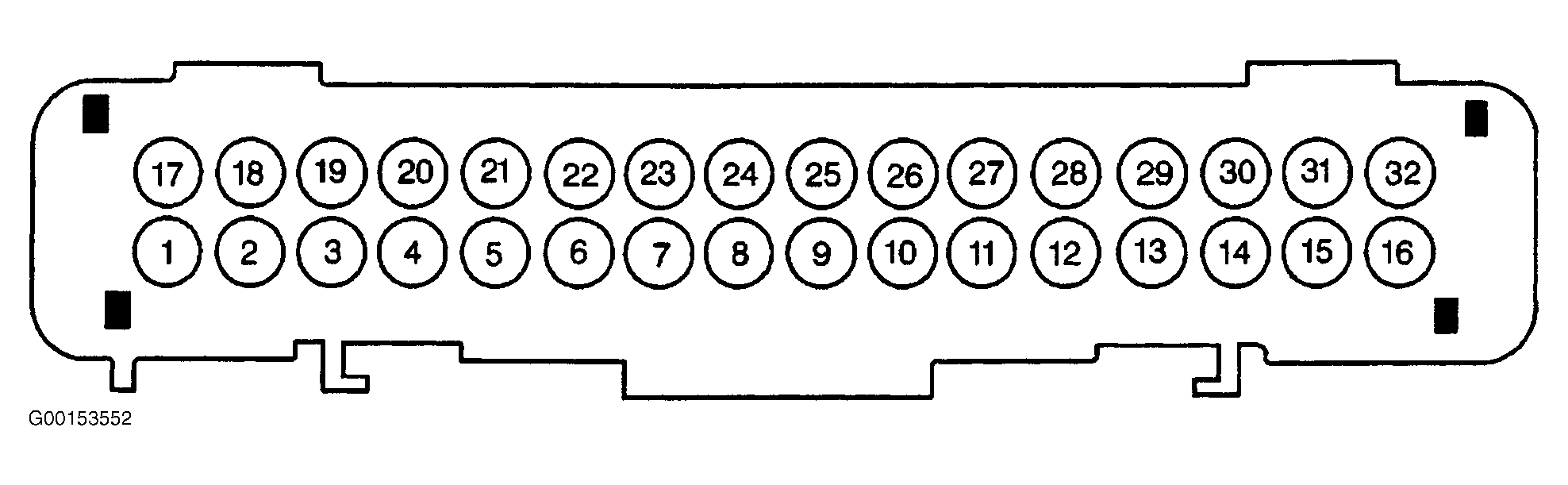

Fig 1: Identifying PCM 32-Pin Harness Connector

Courtesy of GENERAL MOTORS CORP.

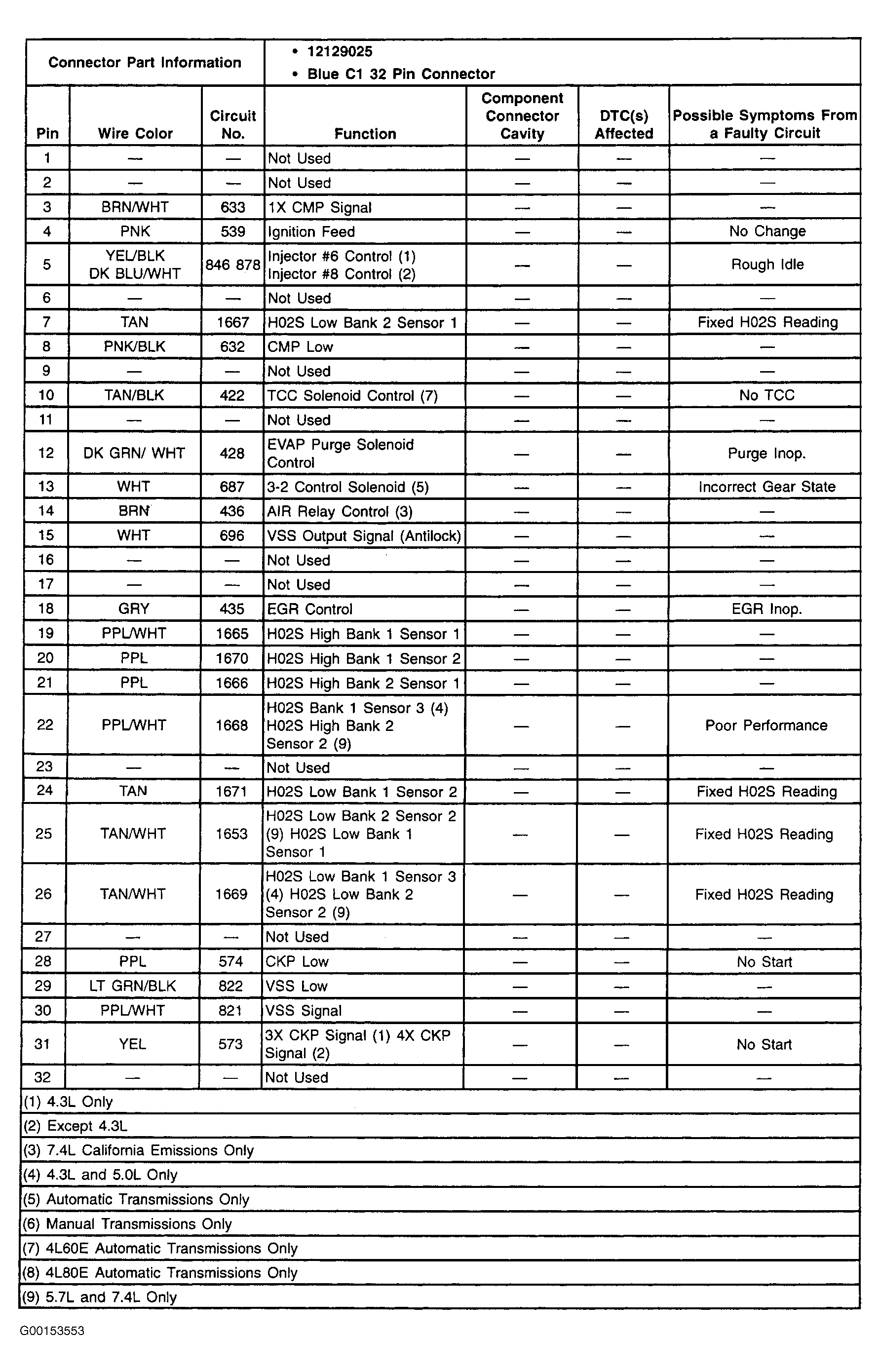

Fig 2: Identifying PCM 32-Pin Blue C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

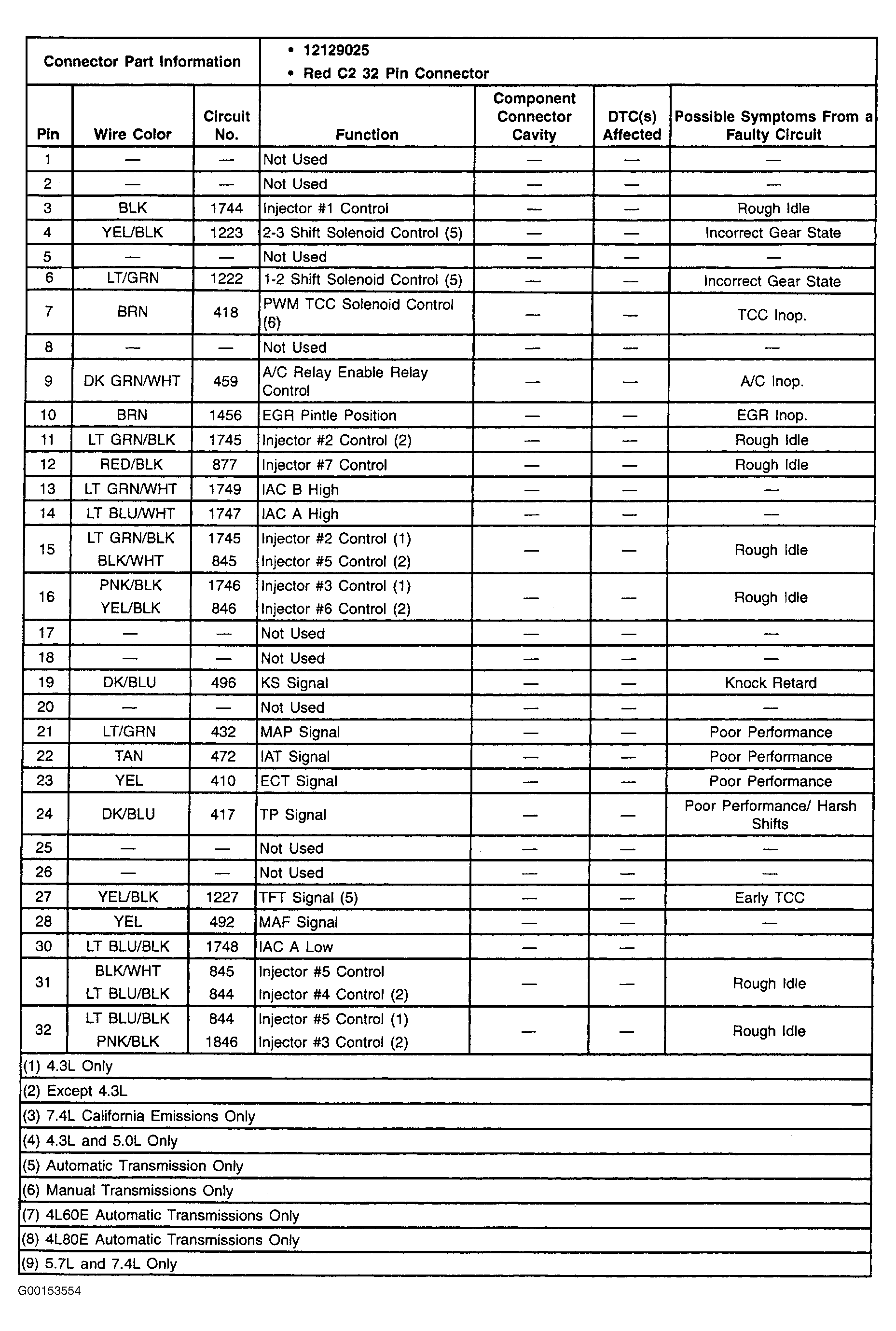

Fig 3: Identifying PCM 32-Pin Red C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

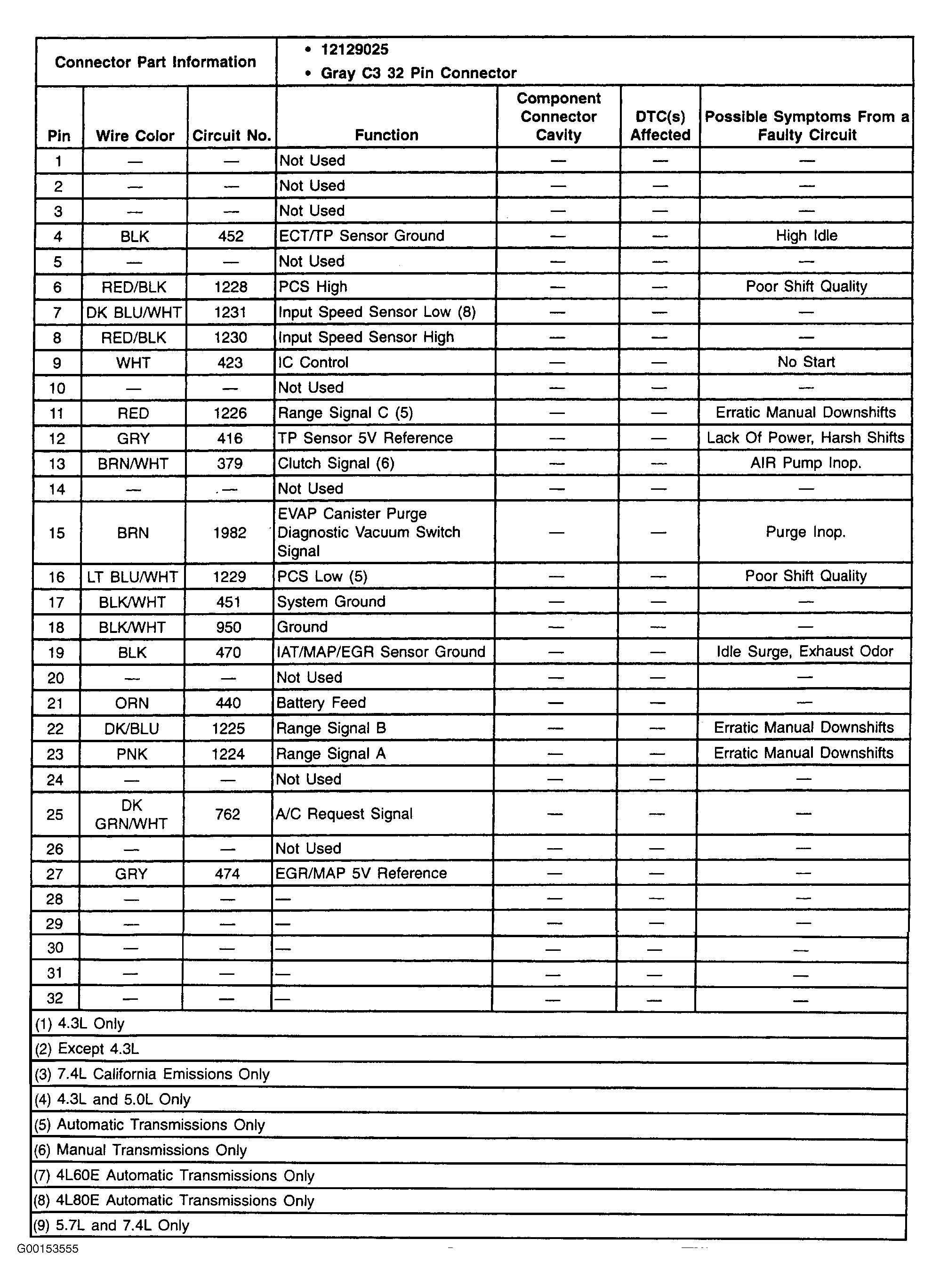

Fig 4: Identifying PCM 32-Pin Gray C3 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

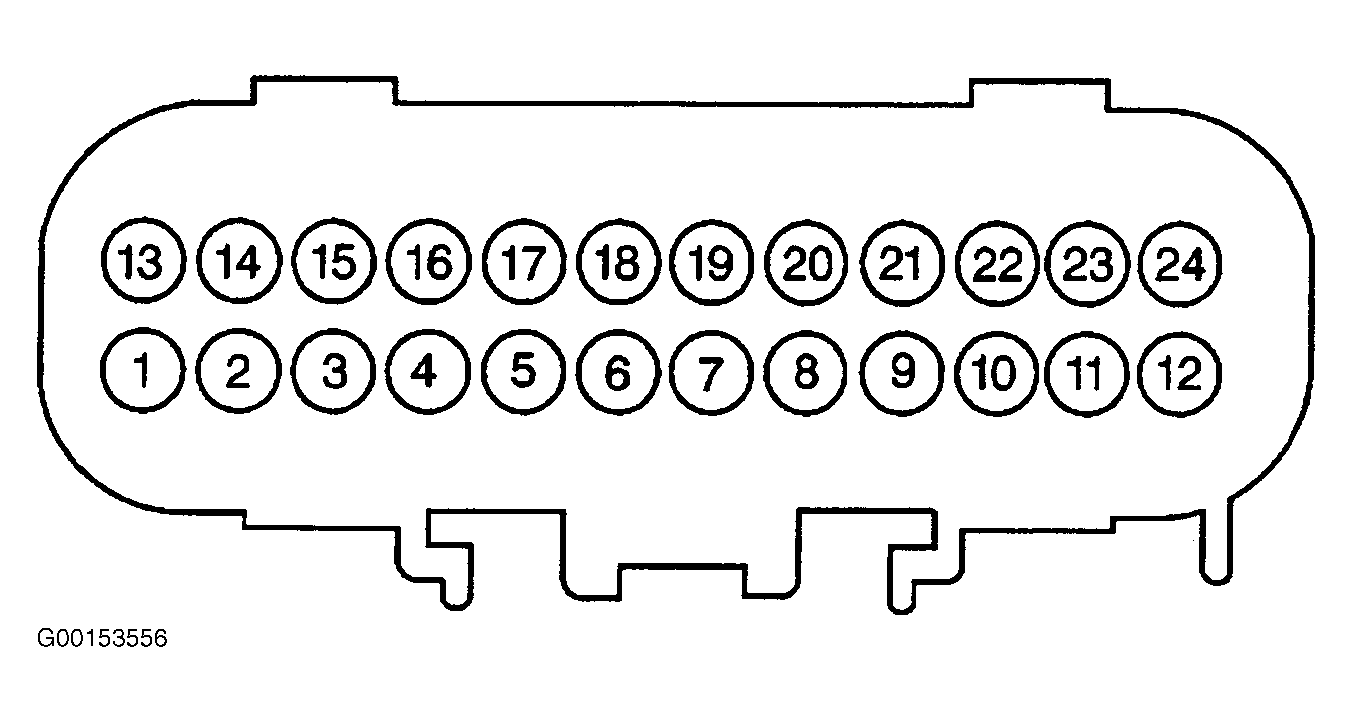

Fig 5: Identifying PCM 24-Pin Harness Connector

Courtesy of GENERAL MOTORS CORP.

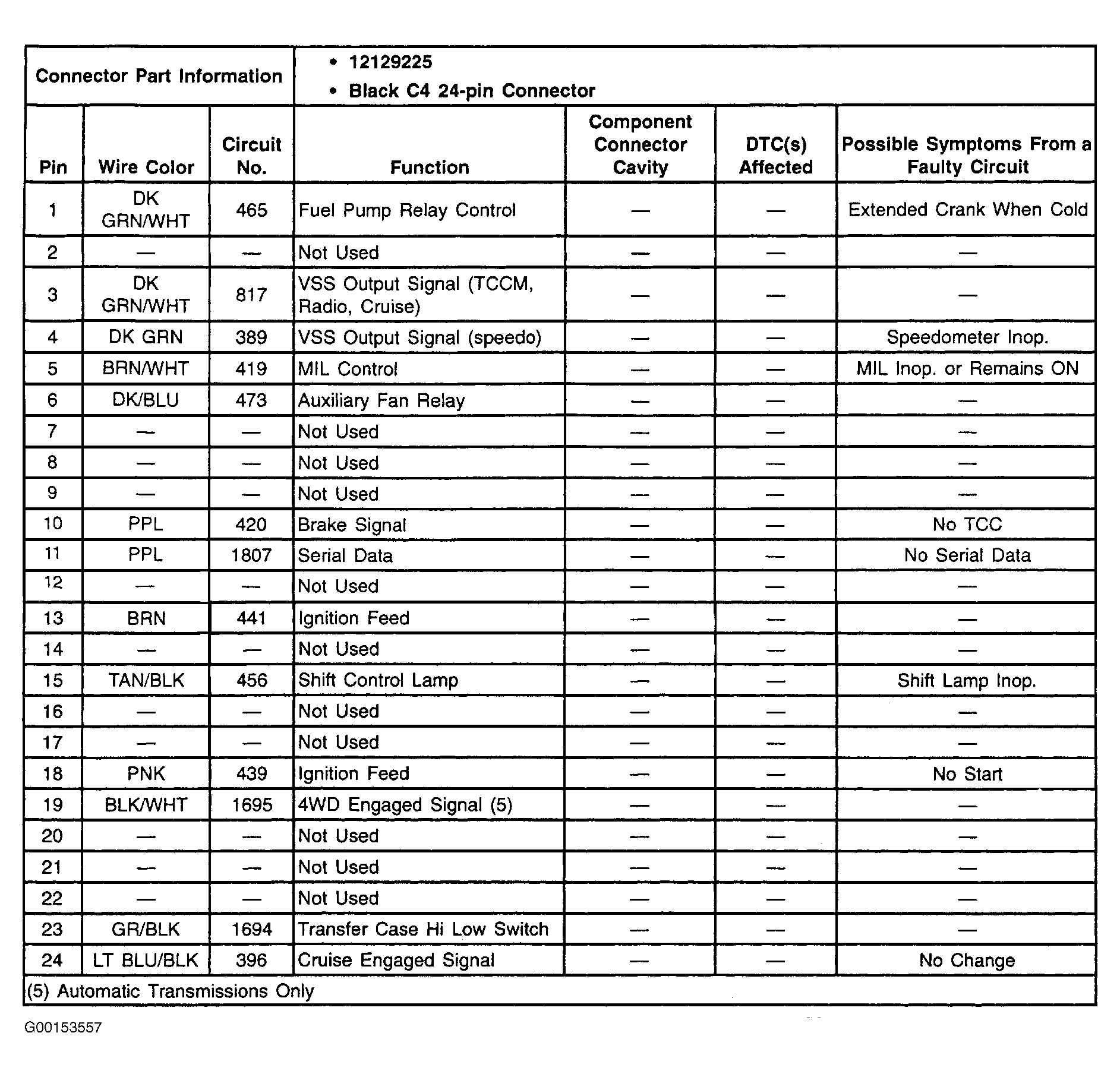

Fig 6: Identifying PCM 24-Pin Black C4 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
