Connector Identification

WARNING: This page is about a different car, the 1995 Dodge Ram Wagon, 1995 Dodge Ram Van, 1995 Dodge Pickup, 1995 Dodge Dakota, and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1-Fig 3
Auto Shutdown (ASD) Relay	Fig 4-Fig 8
Camshaft Position Sensor	Fig 9
Crankshaft Position Sensor	Fig 10
Exhaust Gas Recirculation (EGR) Solenoid	Fig 11
Engine Coolant Temperature (ECT) Sensor	Fig 12
Evaporative Purge Solenoid	Fig 13
Fuel Pump	Fig 14
Fuel Pump Relay	Fig 15-Fig 17
Idle Air Control (IAC) Motor	Fig 18
Intake Air Temperature (IAT) Sensor	Fig 19
Manifold Absolute Pressure (MAP) Sensor	Fig 20
02S	Fig 21
Powertrain Control Module (PCM)	Fig 27
Torque Converter Clutch (TCC) Relay	Fig 22
Torque Converter Clutch (TCC) Solenoid	Fig 24
Throttle Position (TP) Sensor	Fig 23
Torque Converter Clutch/Overdrive Solenoid	Fig 25
Transmission Temperature Sensor	Fig 26

A/C CLUTCH RELAY CONNECTOR TERMINAL ID (AB BODY)

Terminal	Wire Color	Function
A	Dark Blue	Fused Ign. Sw. Output
B	Red/Light Green	Fused Battery Voltage
C	Dark Blue/Orange	Relay Control
D	Dark Blue/Black	Relay Output

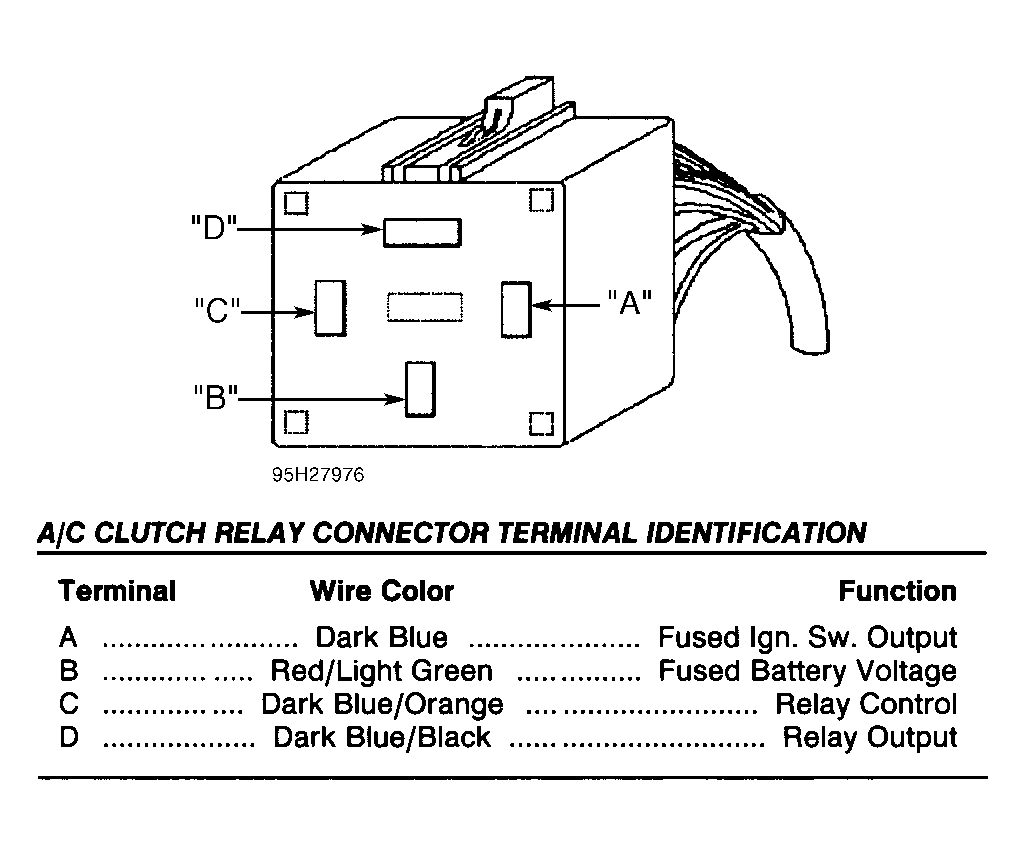

Fig 1: A/C Clutch Relay Connector Terminal ID (AB Body)

Courtesy of CHRYSLER LLC

A/C CLUTCH RELAY CONNECTOR TERMINAL ID (AN BODY)

Terminal	Wire Color	Function
A	Dark Blue	Fused Ign. Sw. Output
B	Gray	Fused Battery Voltage
C	Dark Blue/Orange	Relay Control
D	Dark Blue/Black	Relay Output

Fig 2: Identifying A/C Clutch Relay Connector Terminals (AN Body)

Courtesy of CHRYSLER LLC

A/C CLUTCH RELAY CONNECTOR TERMINAL ID (BR BODY)

Terminal	Wire Color	Function
A	Light Green/Black	Fused Ign. Sw. Output
B	Violet	Fused Battery Voltage
C	Dark Blue/Orange	Relay Control
D	Dark Blue/Black	Relay Output

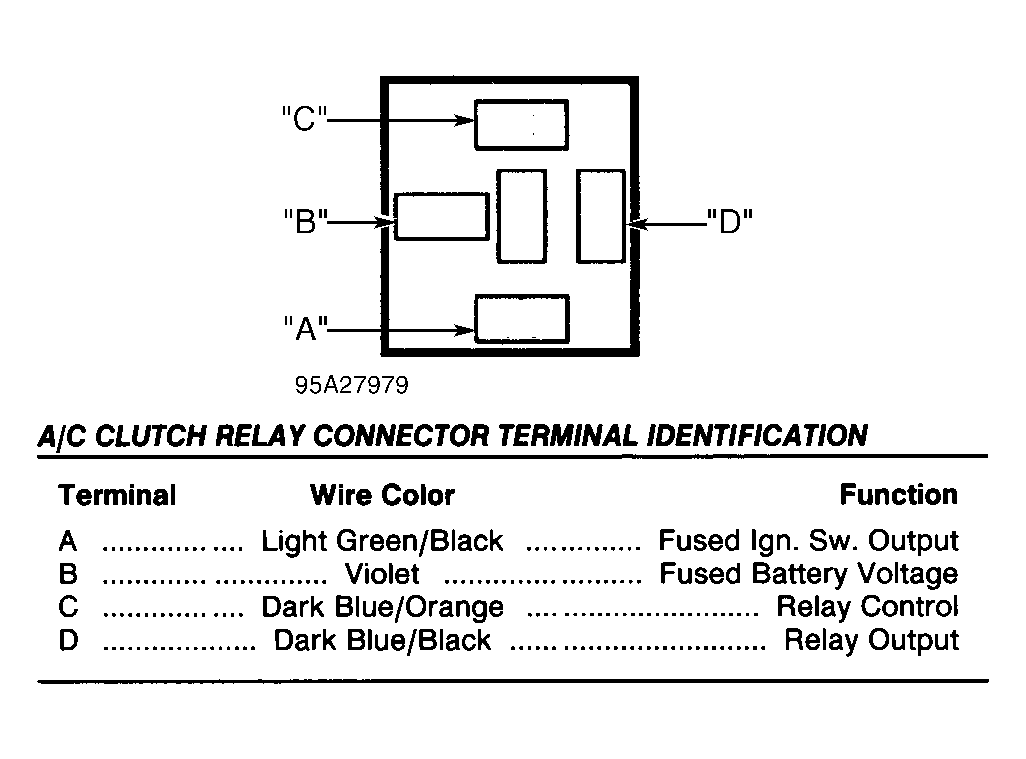

Fig 3: Identifying A/C Clutch Relay Connector Terminals (BR Body)

Courtesy of CHRYSLER LLC

ASD RELAY CONNECTOR TERMINAL ID (AB BODY)

Terminal

Wire Color

Function

⁽¹⁾ Dark Blue/White

Fused Ign. Sw. Output

⁽²⁾ Red/White

Fused Battery Voltage

Dark Blue/Yellow

Relay Control

Dark Green/Orange

Relay Output

⁽¹⁾	Dark Blue on AB body.

⁽²⁾	Red on AB body.

Fig 4: ASD Relay Connector Terminal ID - 1 Of 2 (AB Body)

Courtesy of CHRYSLER LLC

Fig 5: ASD Relay Connector Terminal ID - 2 Of 2 (AB Body)

Courtesy of CHRYSLER LLC

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION (AN BODY)

Terminal	Wire Color	Function
A	Dark Blue	Fused Ign. Sw. Output
B.	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	Relay Control
D	Dark Green/Orange	Relay Output

Fig 6: ASD Relay Connector Terminal ID - 1 Of 2 (AN Body)

Courtesy of CHRYSLER LLC

Fig 7: ASD Relay Connector Terminal ID - 2 Of 2 (AN Body)

Courtesy of CHRYSLER LLC

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION (BR BODY)

Terminal	Wire Color	Function
A	Light Green/Black	Fused Ign. Sw. Output
B	Gray/White	Fused Battery Voltage
C	Dark Blue/Yellow	Relay Control
D	Dark Green/Orange	Relay Output

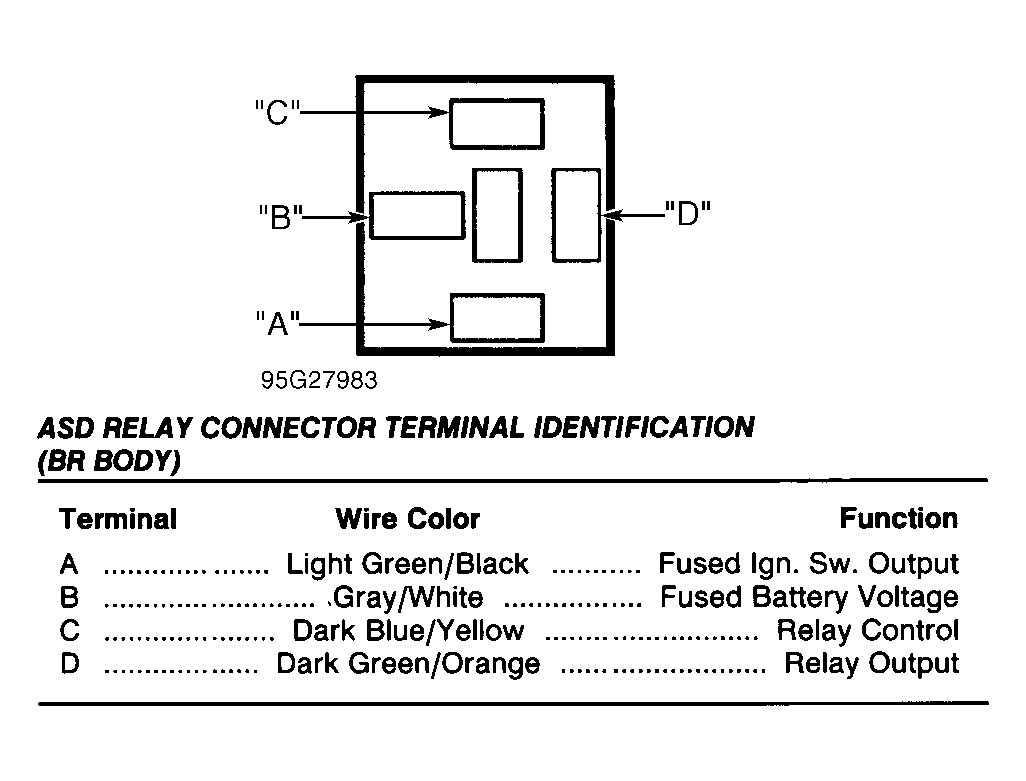

Fig 8: Identifying ASD Relay Connector Terminals (BR Body)

Courtesy of CHRYSLER LLC

CAMSHAFT POSITION SENSOR CONNECTOR TERM ID (ALL MODELS)

Terminal	Wire Color	Function
1	Tan/Yellow	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 9: Camshaft Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Black	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 10: Crankshaft Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

EGR SOLENOID CONNECTOR TERMINAL ID (ALL MODELS)

Terminal

Wire Color

Function

⁽¹⁾ Dark Blue

Fused Ign. Sw. Output

Gray/Yellow

Control

⁽¹⁾	Light Green/Black on BR body.

Fig 11: Identifying EGR Solenoid Connector Terminals (All Models)

Courtesy of CHRYSLER LLC

ECT SENSOR CONNECTOR TERMINAL ID (ALL MODELS)

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 12: ECT Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

EVAPORATIVE PURGE SOLENOID CONNECTOR TERM ID (ALL MODELS)

Terminal

Wire Color

Function

⁽¹⁾Dark Blue

Fused Ignition Switch Output

Pink/Black

Solenoid Control

⁽¹⁾	- Light Green/Black on BR body.

Fig 13: Evaporative Purge Solenoid Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

FUEL PUMP CONNECTOR TERMINAL ID (ALL MODELS)

Terminal

Wire Color

Function

Dark Green/Black

Fuel Pump Relay Output

Dark Blue

Sending Unit Feed

-----

Not Used

⁽¹⁾ Black/Tan

Sending Unit Ground

Black

Fuel Pump Ground

⁽¹⁾	Black/White on BR body.

Fig 14: Fuel Pump Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

FUEL PUMP RELAY CONNECTOR TERMINAL ID (AB & AN BODIES)

Terminal

Wire Color

Function

Dark Blue

Fused Ign. Sw. Output

⁽¹⁾ Red/White

Fused Battery Voltage

Dark Blue/Yellow

ASD Relay Control

Dark Green/Black

Fuel Pump Relay Output

⁽¹⁾	Red on AB body.

Fig 15: Fuel Pump Relay Connector Terminal ID - 1 Of 2 (AB & AN Bodies)

Courtesy of CHRYSLER LLC

Fig 16: Fuel Pump Relay Connector Terminal ID - 2 Of 2 (AB & AN Bodies)

Courtesy of CHRYSLER LLC

FUEL PUMP RELAY CONNECTOR TERMINAL ID (BR BODY)

Terminal	Wire Color	Function
A	Light Green/Black	Ignition 12-Volt Feed
B	Dark Green/Black	Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Red/White	Fuel Pump Relay Output

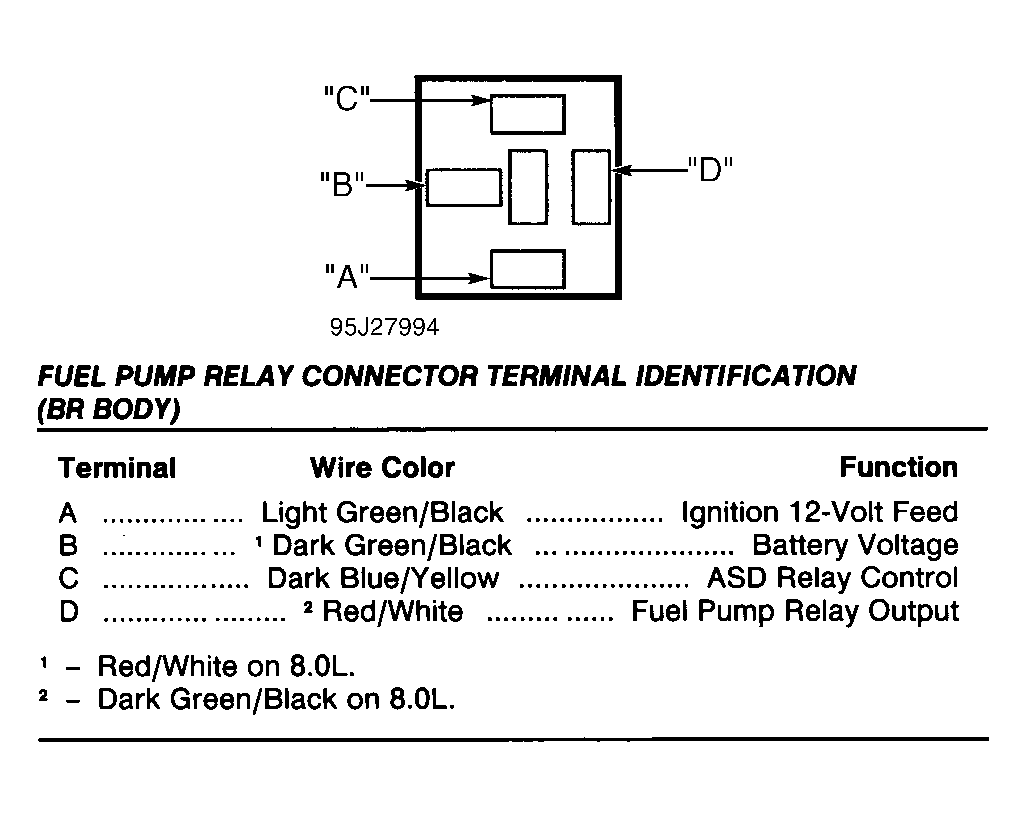

Fig 17: Identifying Fuel Pump Relay Connector Terminals (BR Body)

Courtesy of CHRYSLER LLC

IAC MOTOR CONNECTOR TERMINAL ID (ALL MODELS)

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 18: IAC Motor Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

IAT SENSOR CONNECTOR TERMINAL ID (ALL MODELS)

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground

Fig 19: IAT Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

MAP SENSOR CONNECTOR TERMINAL ID (ALL MODELS)

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

Fig 20: MAP Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

O2S CONNECTOR TERMINAL ID (SINGLE O2S) (ALL MODELS)

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	O2S Signal
3	Black	Heater Ground
4	Dark Green/Orange	ASD Relay Output
4	Orange/Dark Blue	Fuel Pump Relay Output

Fig 21: Identifying O2S Connector Terminals (All Models)

Courtesy of CHRYSLER LLC

TCC RELAY CONNECTOR TERMINAL ID (ALL MODELS)

Terminal	Wire Color	Function
A	Dark Blue	Fused Ign. Sw. Output
B	Dark Blue	Fused Battery Voltage
C	Orange/Black	Relay Control
D	Dark Blue/White	Relay Output
E	Black	Ground

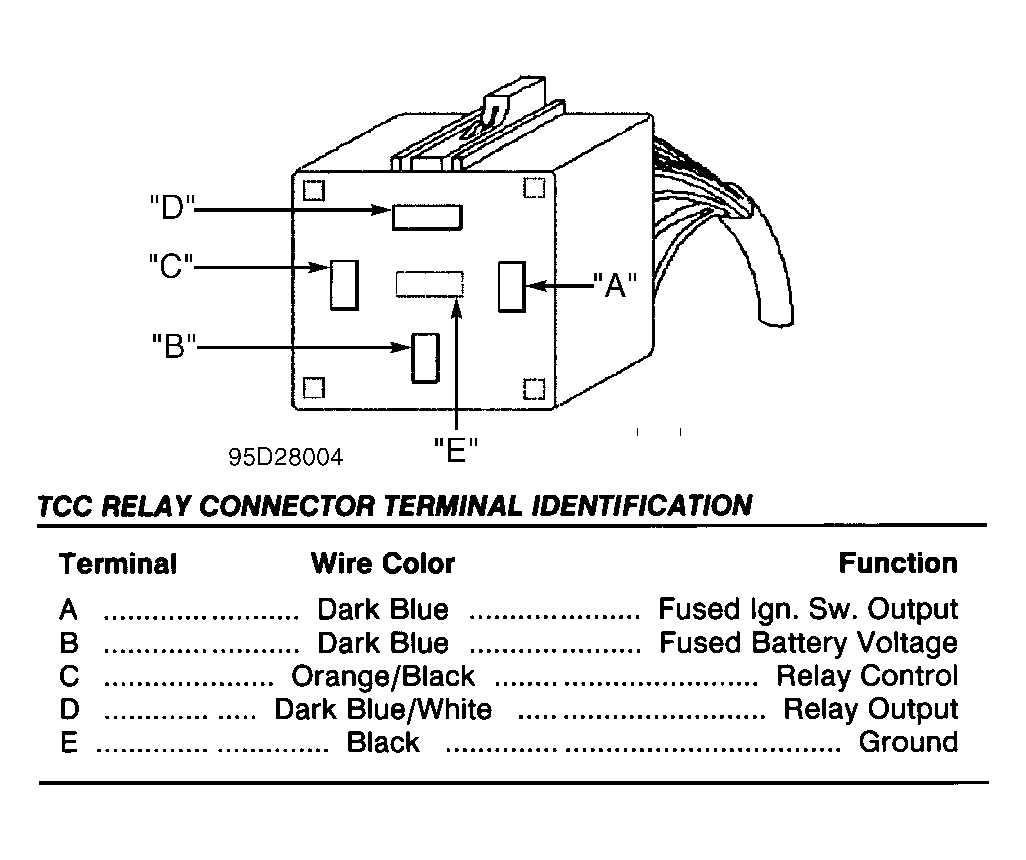

Fig 22: TCC Relay Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

TPS CONNECTOR TERMINAL IDENTIFICATION (ALL MODELS)

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 23: TP Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

TCC/OVERDRIVE SOLENOID CONNECTOR TERMINAL ID (AB BODY)

Terminal	Wire Color	Function
1	Orange/White	OD Solenoid Control
2	Dark Blue	Fused Ign. Sw. Output
3	Orange/Black	TCC Solenoid Signal

Fig 24: TCC/Overdrive Solenoid Connector Terminal ID (AB Body)

Courtesy of CHRYSLER LLC

TCC/OVERDRIVE SOLENOID CONNECTOR TERMINAL ID (AN BODY)

Terminal	Wire Color	Function
1	Orange/Light Green	OD Solenoid Control
2	Dark Blue	Fused Ign. Sw. Output
3	Orange/Black	TCC Solenoid Signal

Fig 25: TCC/Overdrive Solenoid Connector Terminal ID (AN Body)

Courtesy of CHRYSLER LLC

TCC/OVERDRIVE SOLENOID CONNECTOR TERMINAL ID (BR BODY)

Terminal	Wire Color	Function
1	Brown	OD Solenoid Control
2	Light Green/Black	Fused Ign. Sw. Output
3	Orange/Black	TCC Solenoid Signal

Fig 26: TCC/Overdrive Solenoid Connector Terminal ID (BR Body)

Courtesy of CHRYSLER LLC

TRANSMISSION TEMP SENSOR CONNECTOR TERM ID (ALL MODELS)

Terminal	Wire Color	Function
1	Violet	Sensor Signal
2	Black/Light Blue	Ground

Fig 27: Transmission Temp. Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC

Fig 28: PCM Connector Terminal ID (All Models)

Courtesy of CHRYSLER LLC
