SPS/EEPROM Programming Chart (53-65-05)

Publication date: 1995-09-19
Reference number: 53-65-05

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 53-65-05, Date of Issue: 09/19/95

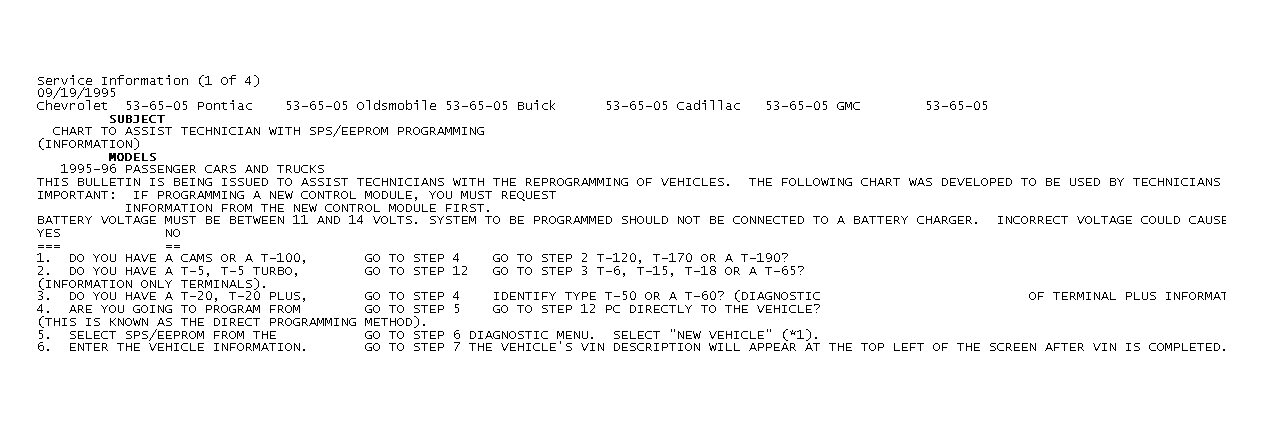

Fig 1: Service Information (1 Of 4)

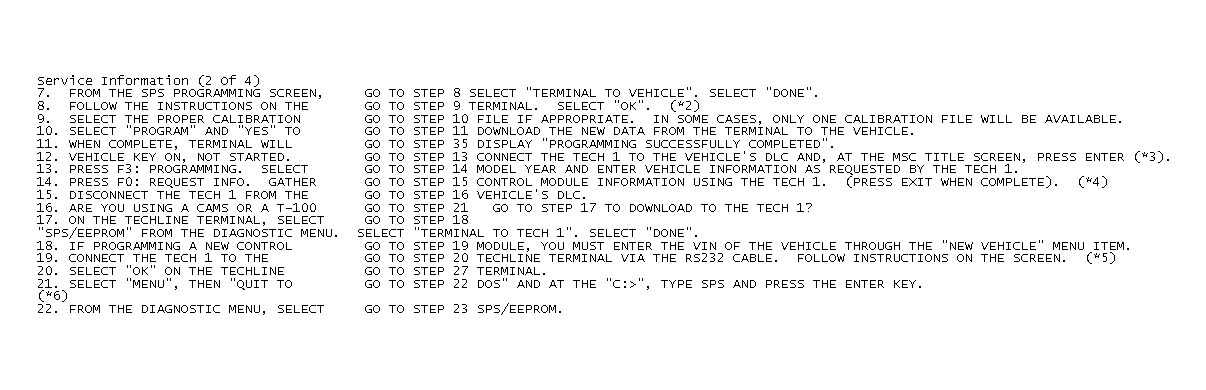

Fig 2: Service Information (2 Of 4)

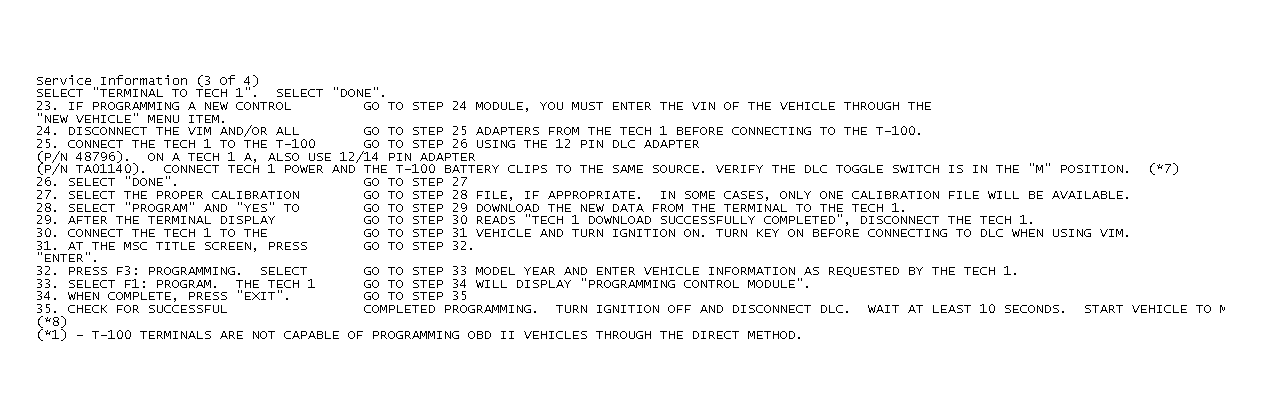

Fig 3: Service Information (3 Of 4)

Fig 4: Service Information (4 Of 4)
