VCM Connectors: C2

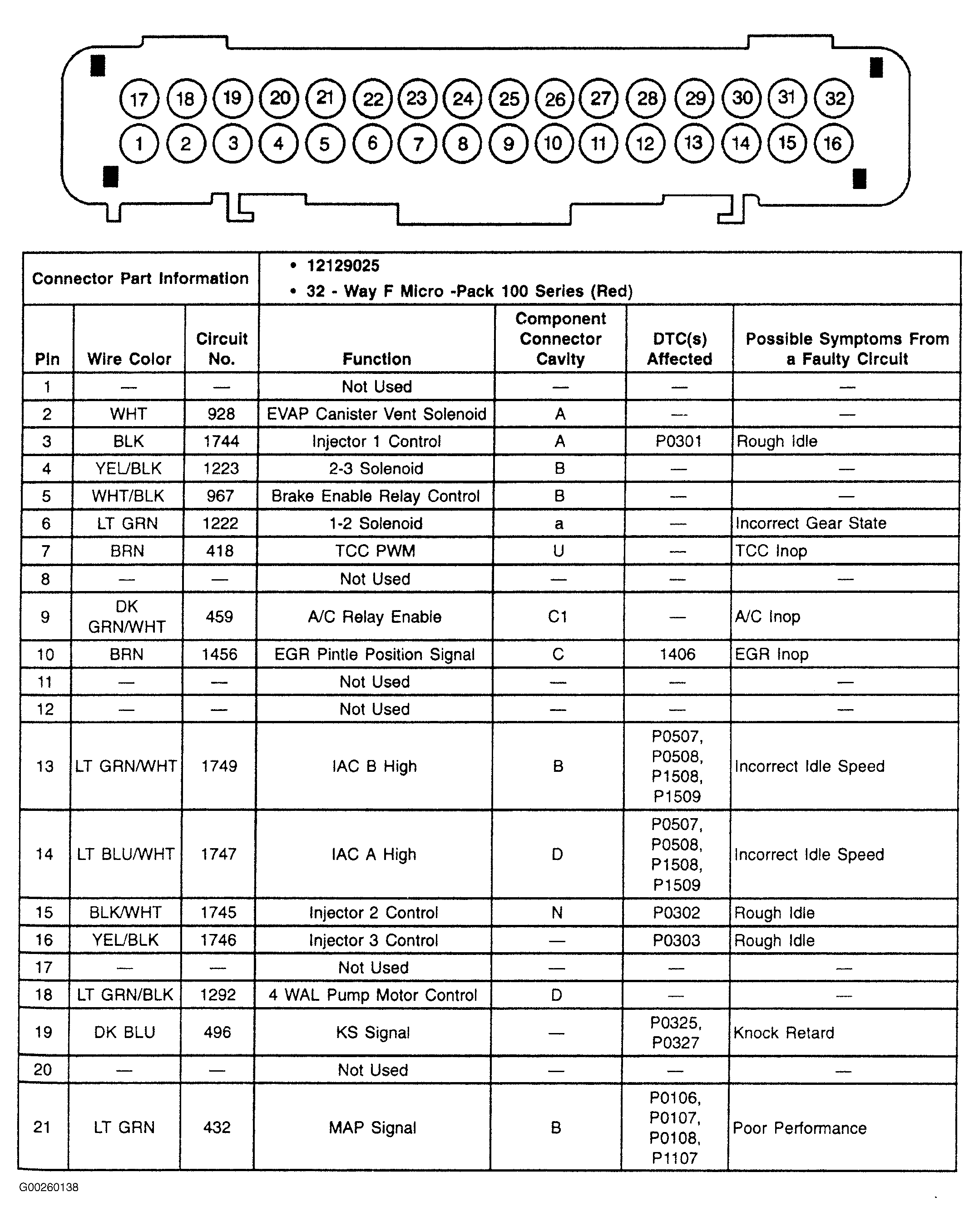

Fig 1: Identifying VCM 32-Pin Connector C2 (Red - 1 Of 2)
G00260138Courtesy of GENERAL MOTORS CORP.

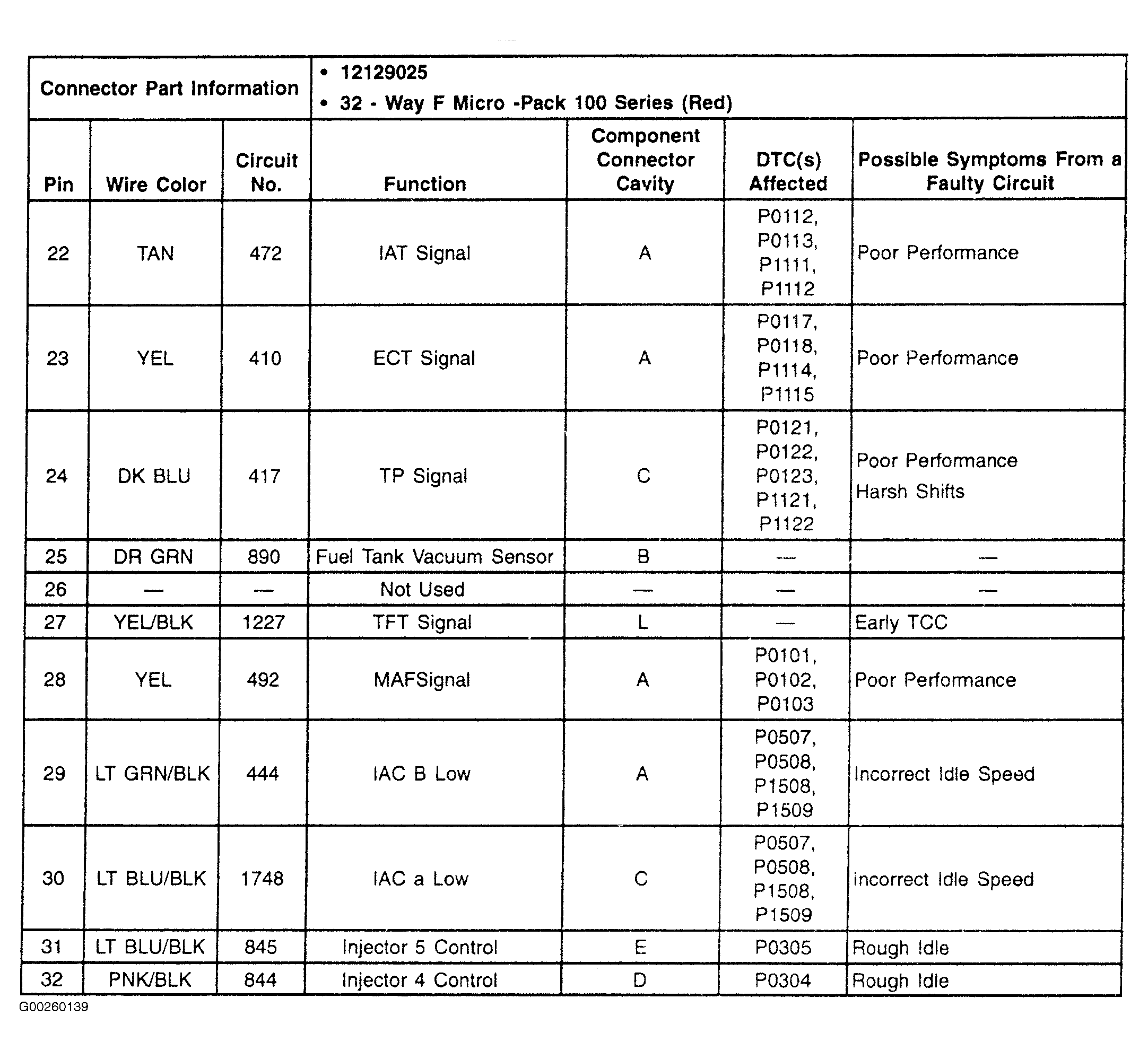

Fig 2: Identifying VCM 32-Pin Connector C2 (Red - 2 Of 2)
G00260139Courtesy of GENERAL MOTORS CORP.
