Connector Terminal Identification - C/K Series
›
Cruise Control Module
Cruise Control Module

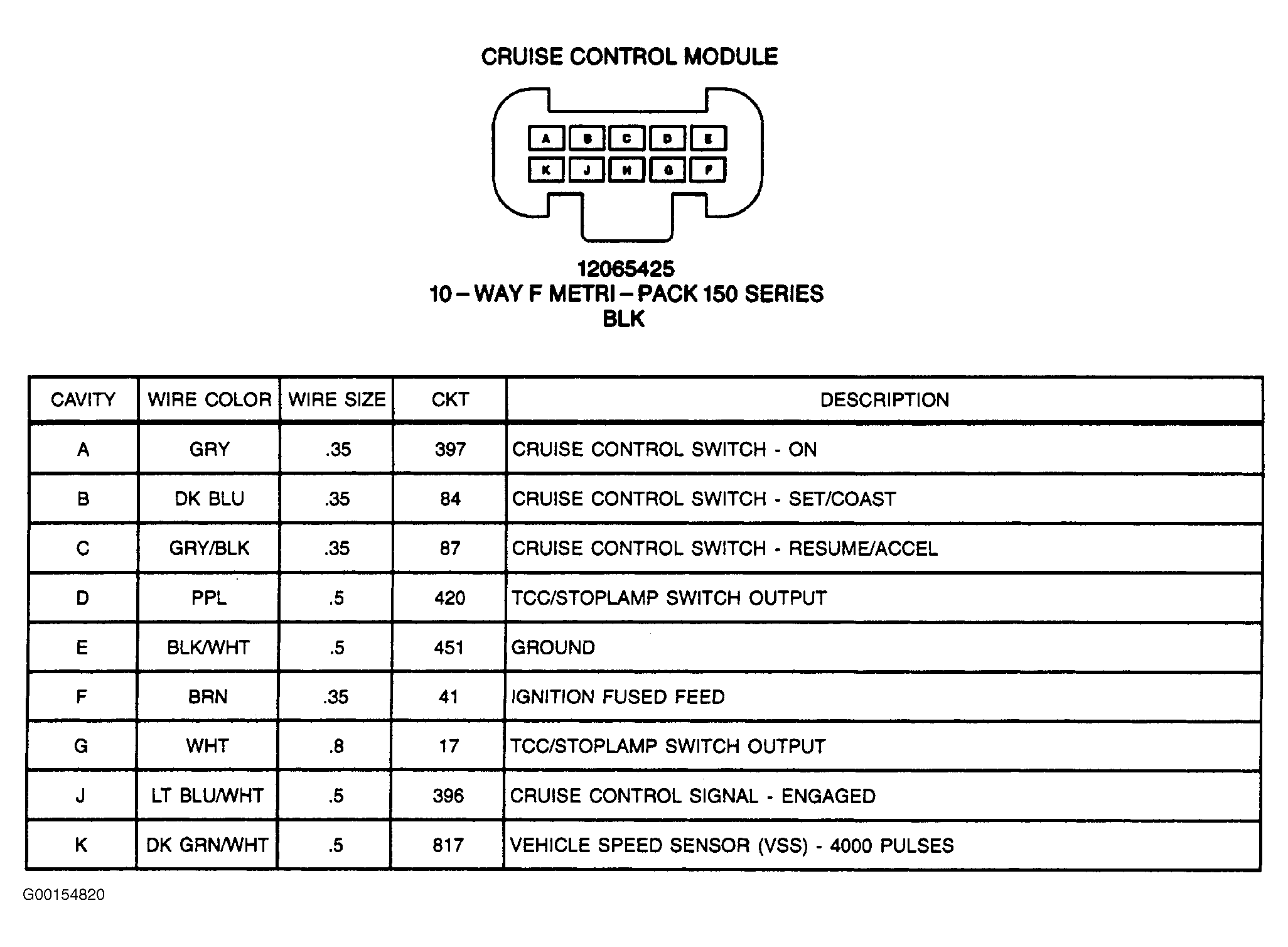

Fig 1: Cruise Control Module - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
