Connector Terminal Identification - C/K Series
›
Headlamp Dimmer Switch
Headlamp Dimmer Switch

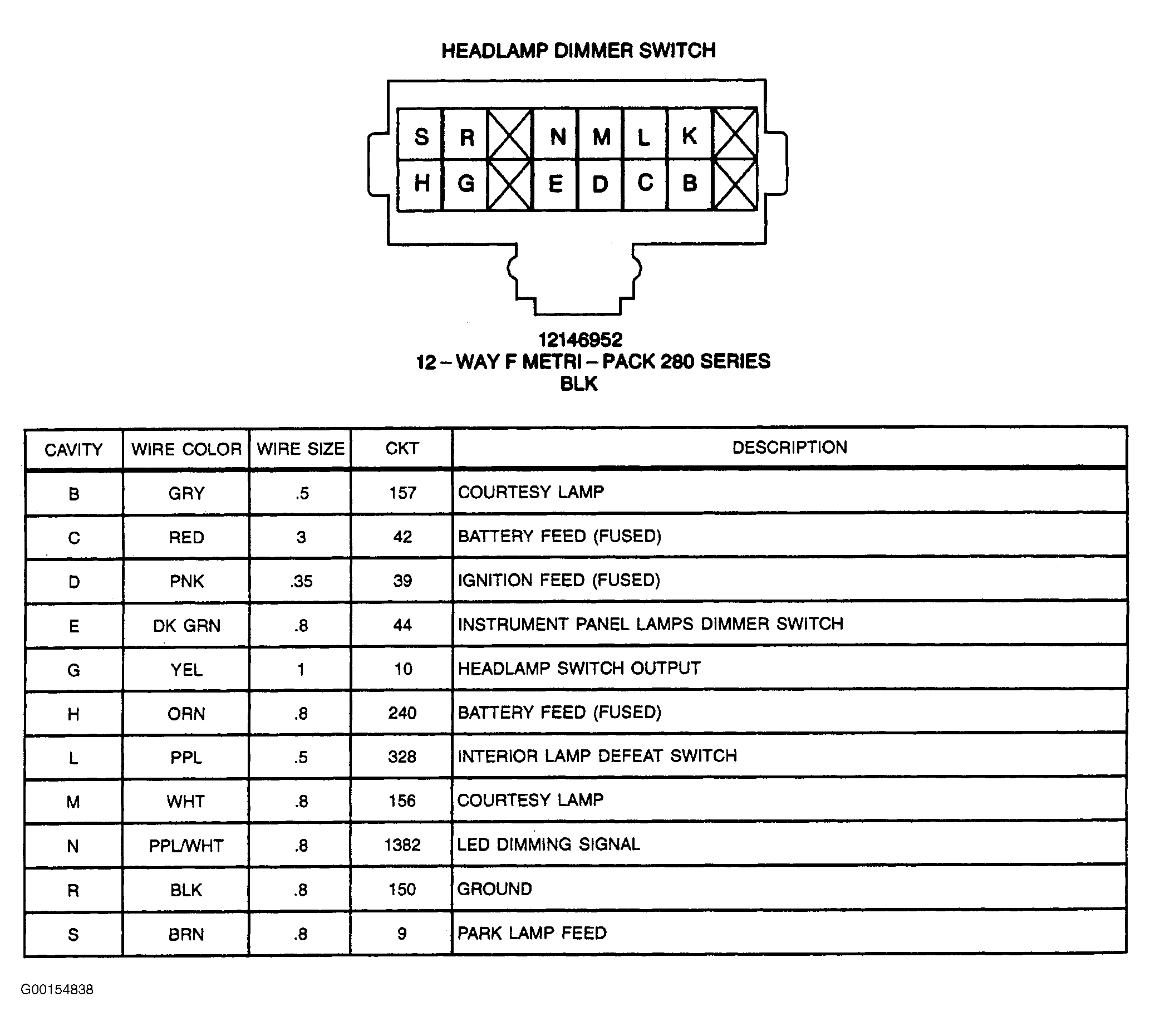

Fig 1: Headlamp Dimmer Switch - 12-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
