Heater & A/C Control Switch C3

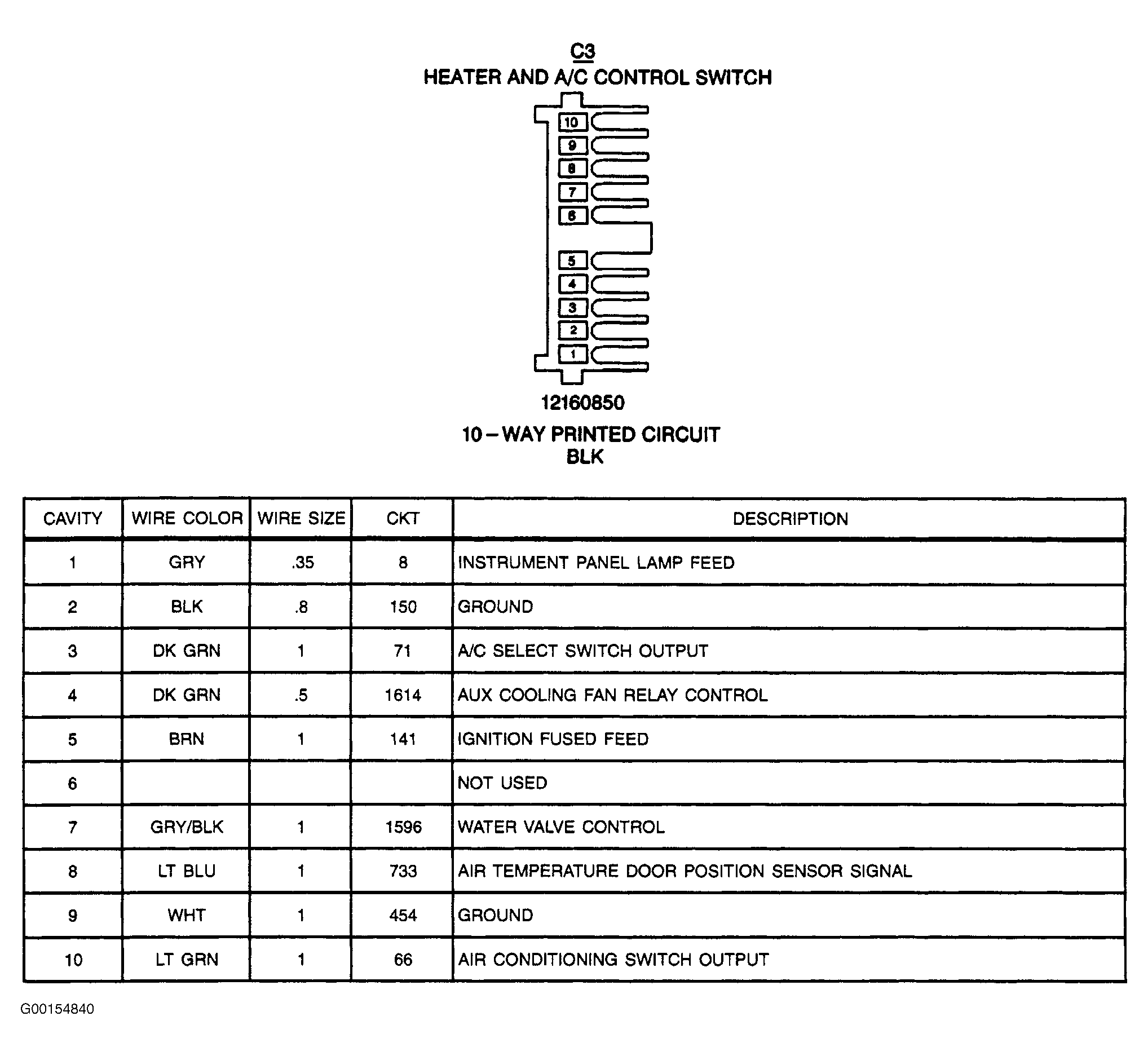

Fig 1: Heater & A/C Control Switch C3 - 10-Pin Connector, Black
G00154840Courtesy of GENERAL MOTORS CORP.
