Connector Terminal Identification - C/K Series
›
Heater Blower Switch C2
Heater Blower Switch C2

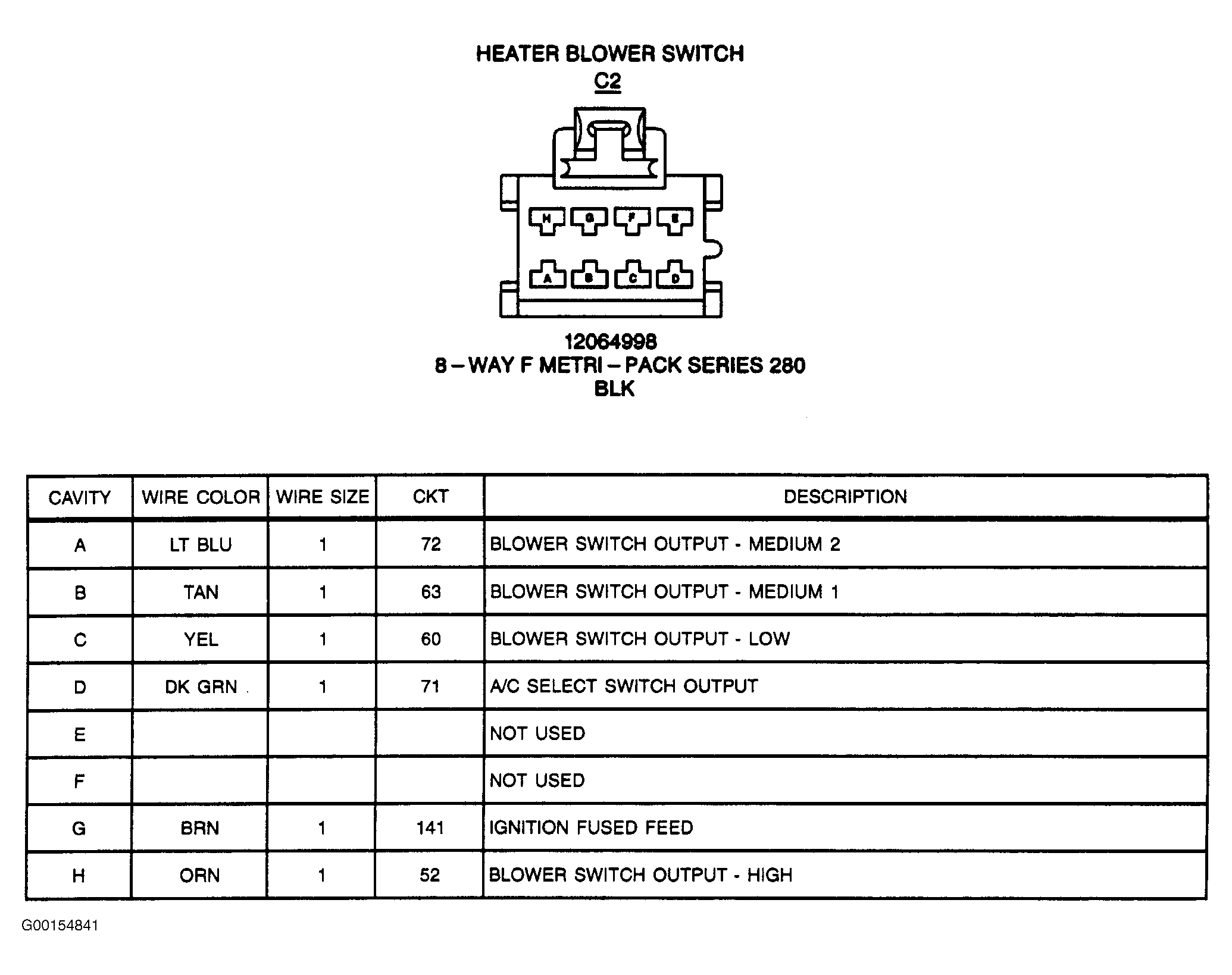

Fig 1: Heater Blower Switch C2 - 8-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
