Instrument Cluster

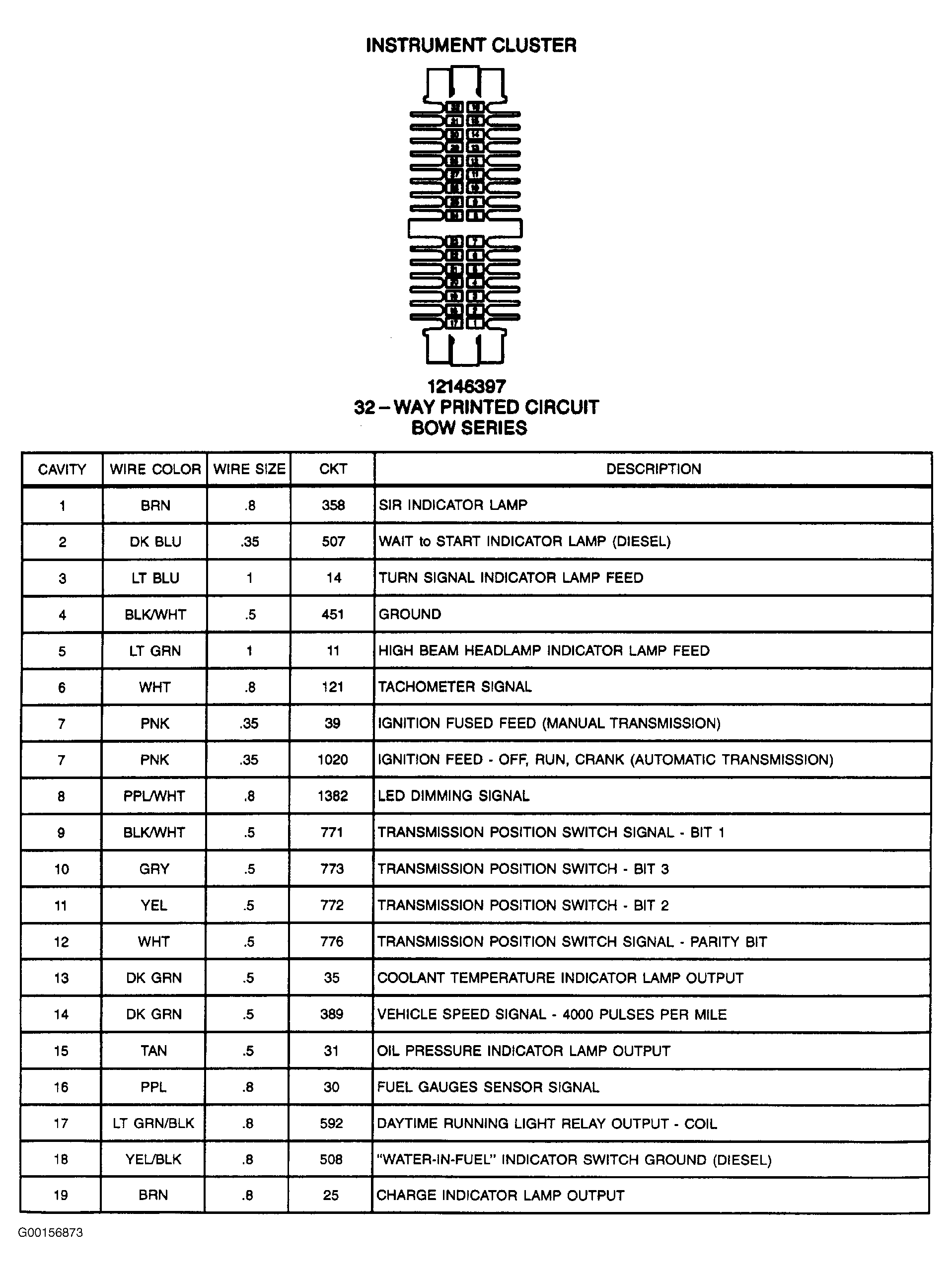

Fig 1: Instrument Cluster - 32-Pin Connector (1 Of 2)
G00156873Courtesy of GENERAL MOTORS CORP.

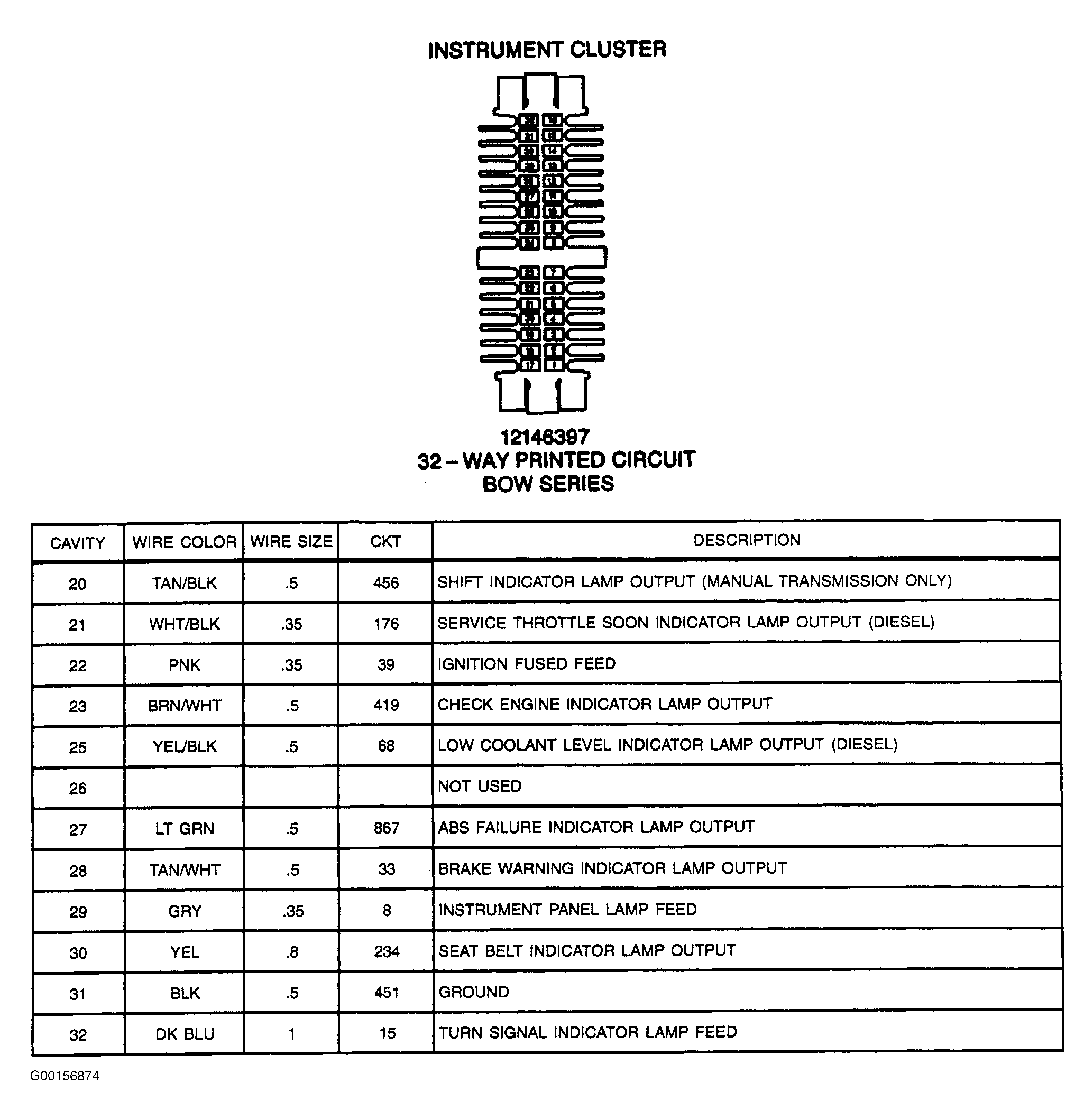

Fig 2: Instrument Cluster - 32-Pin Connector (2 Of 2)
G00156874Courtesy of GENERAL MOTORS CORP.
