Connector Terminal Identification - C/K Series
›
Radio C1
Radio C1

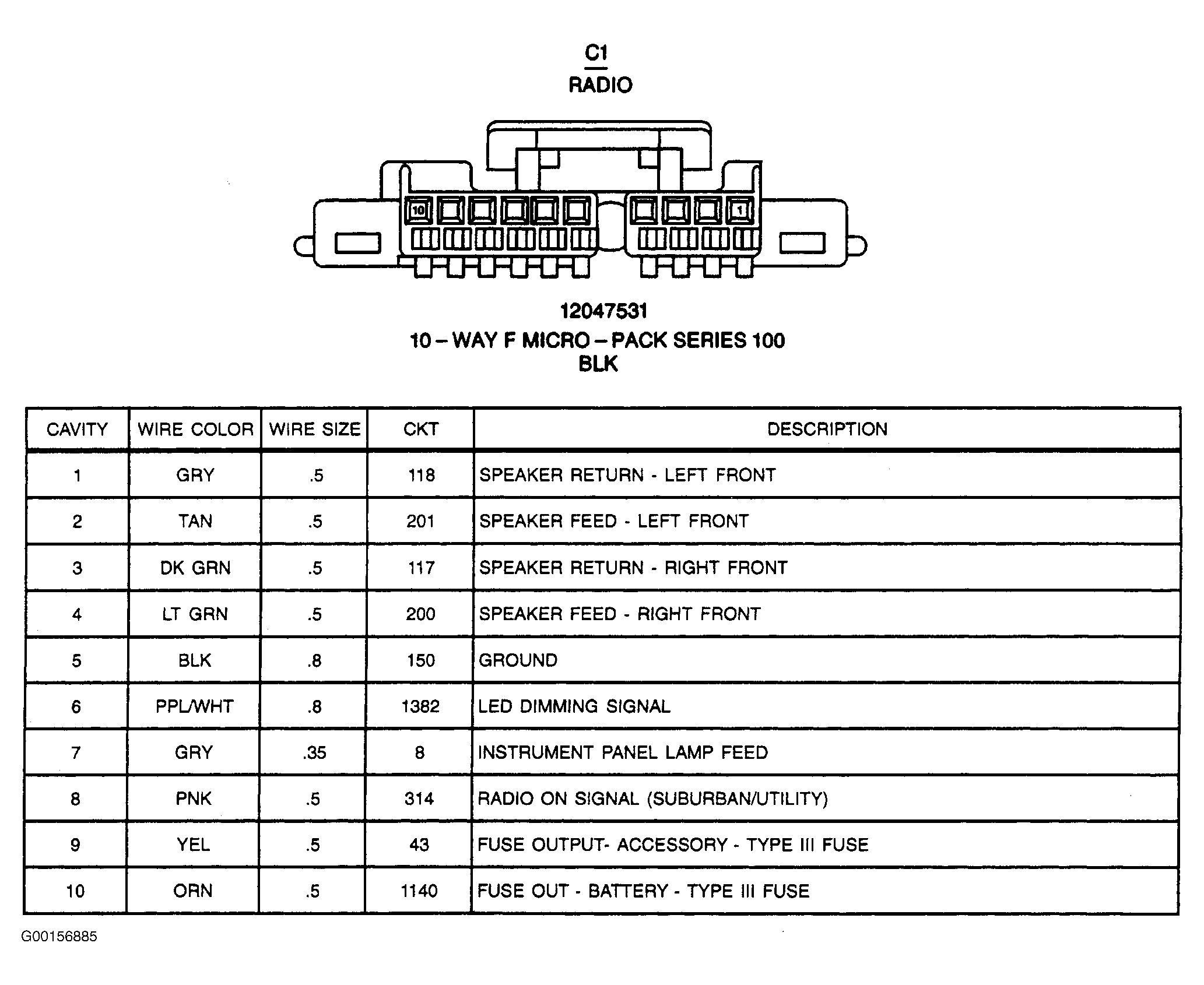

Fig 1: Radio C1 - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
