Transfer Case Control Module

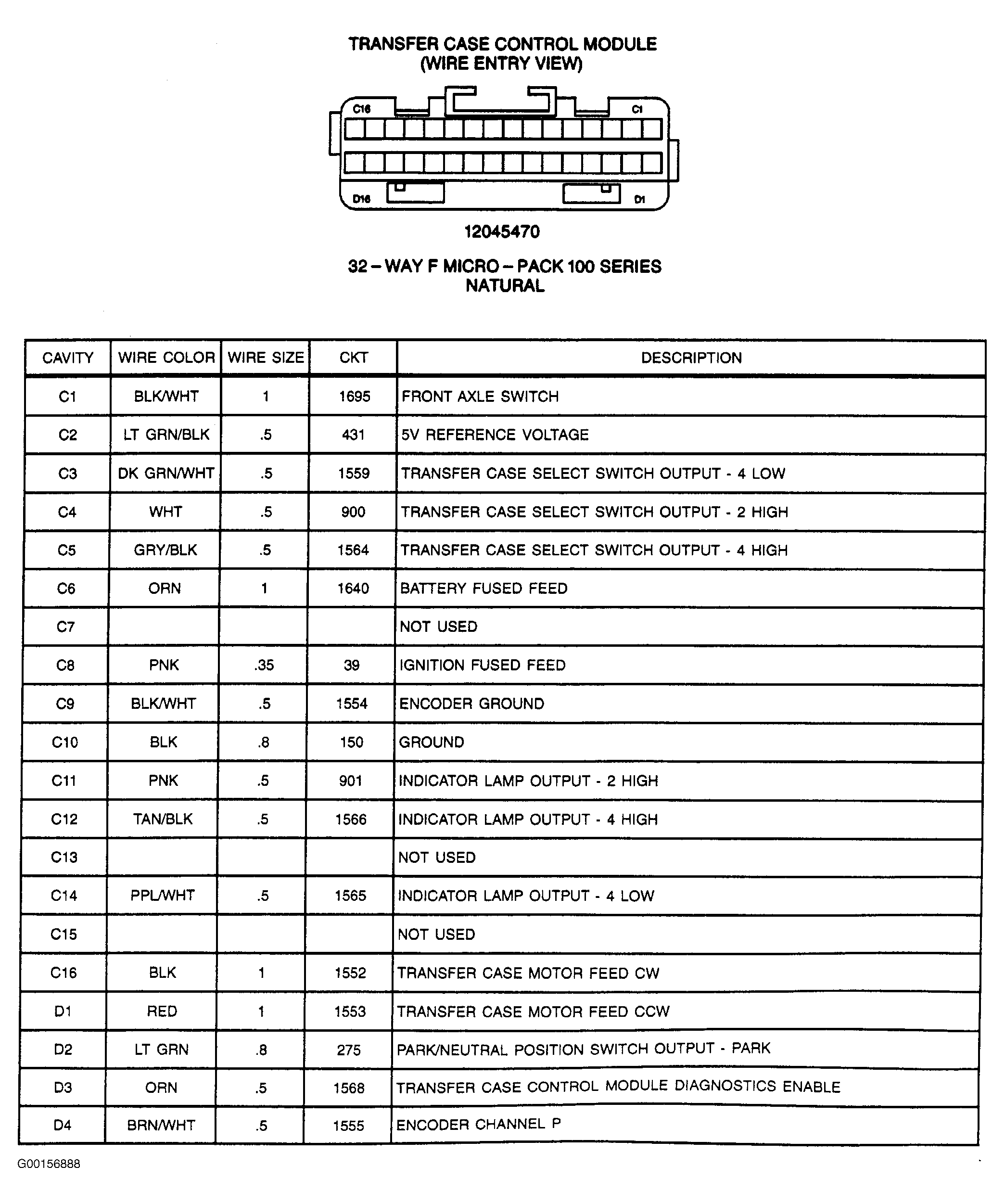

Fig 1: Transfer Case Control Module - 32-Pin Connector, Natural (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

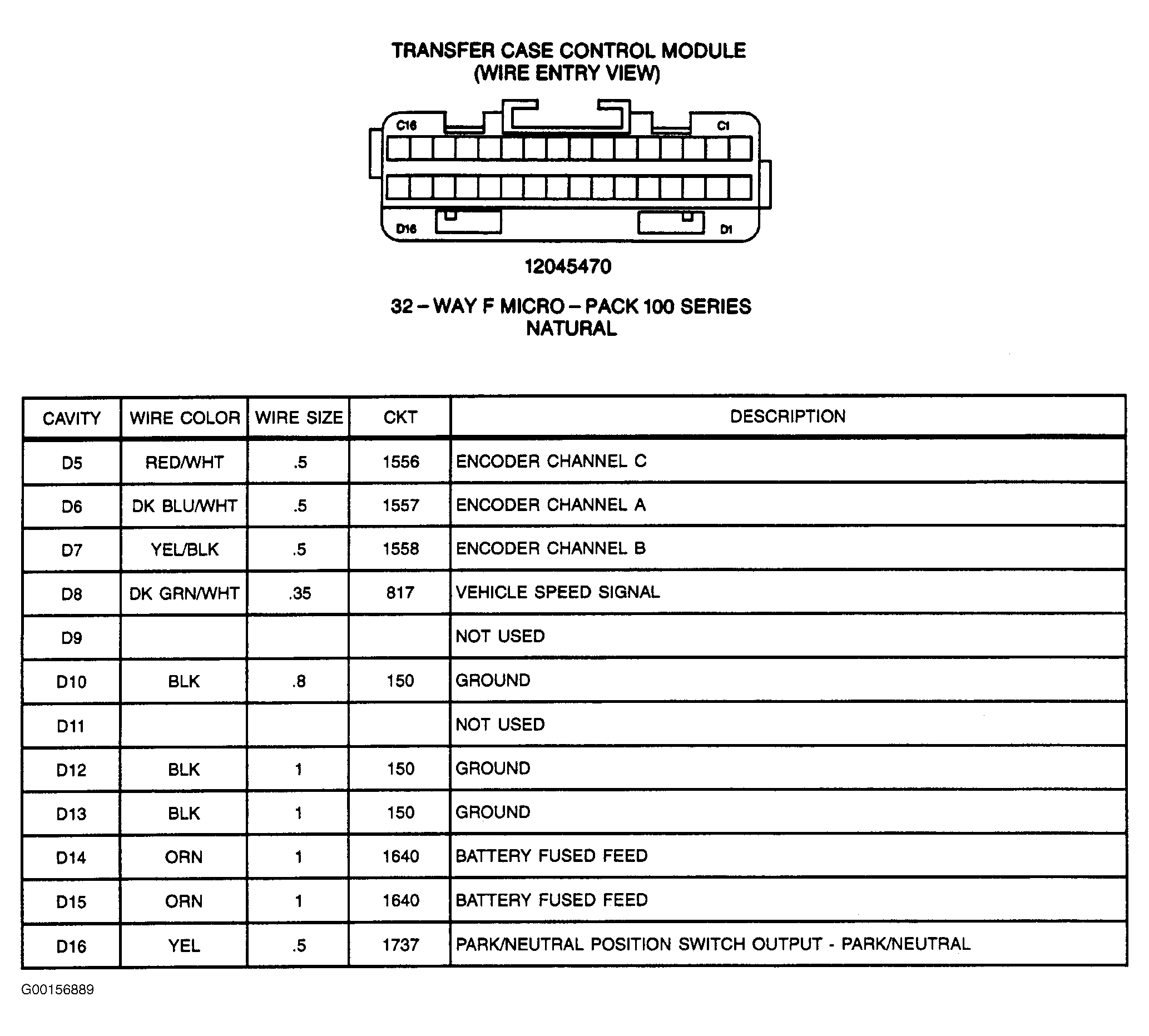

Fig 2: Transfer Case Control Module - 32-Pin Connector, Natural (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
