Connectors C100 To C400: C101

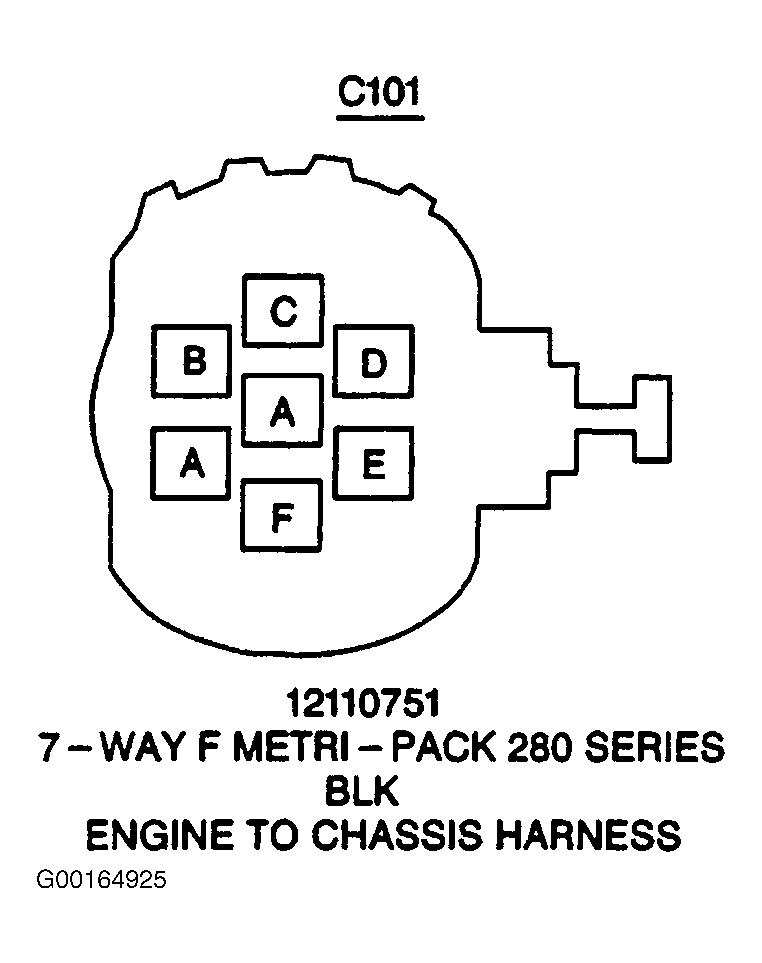

Fig 1: C101 - 7-Pin Connector, Black
G00164925Courtesy of GENERAL MOTORS CORP.
