Connectors C100 To C400: C109

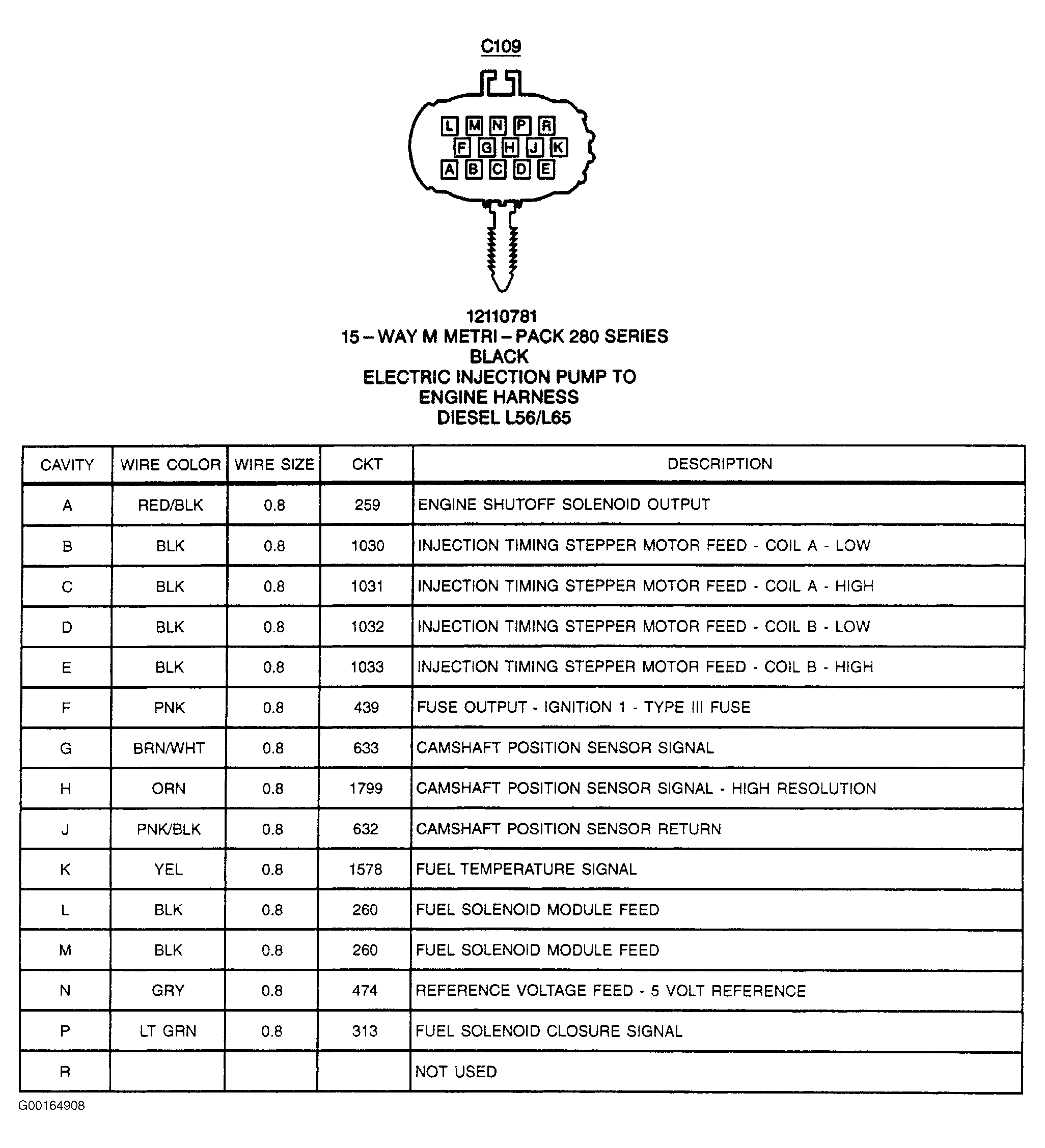

Fig 1: C109 - 15-Pin Connector, Black
G00164908Courtesy of GENERAL MOTORS CORP.
