Connectors C100 To C400: C203

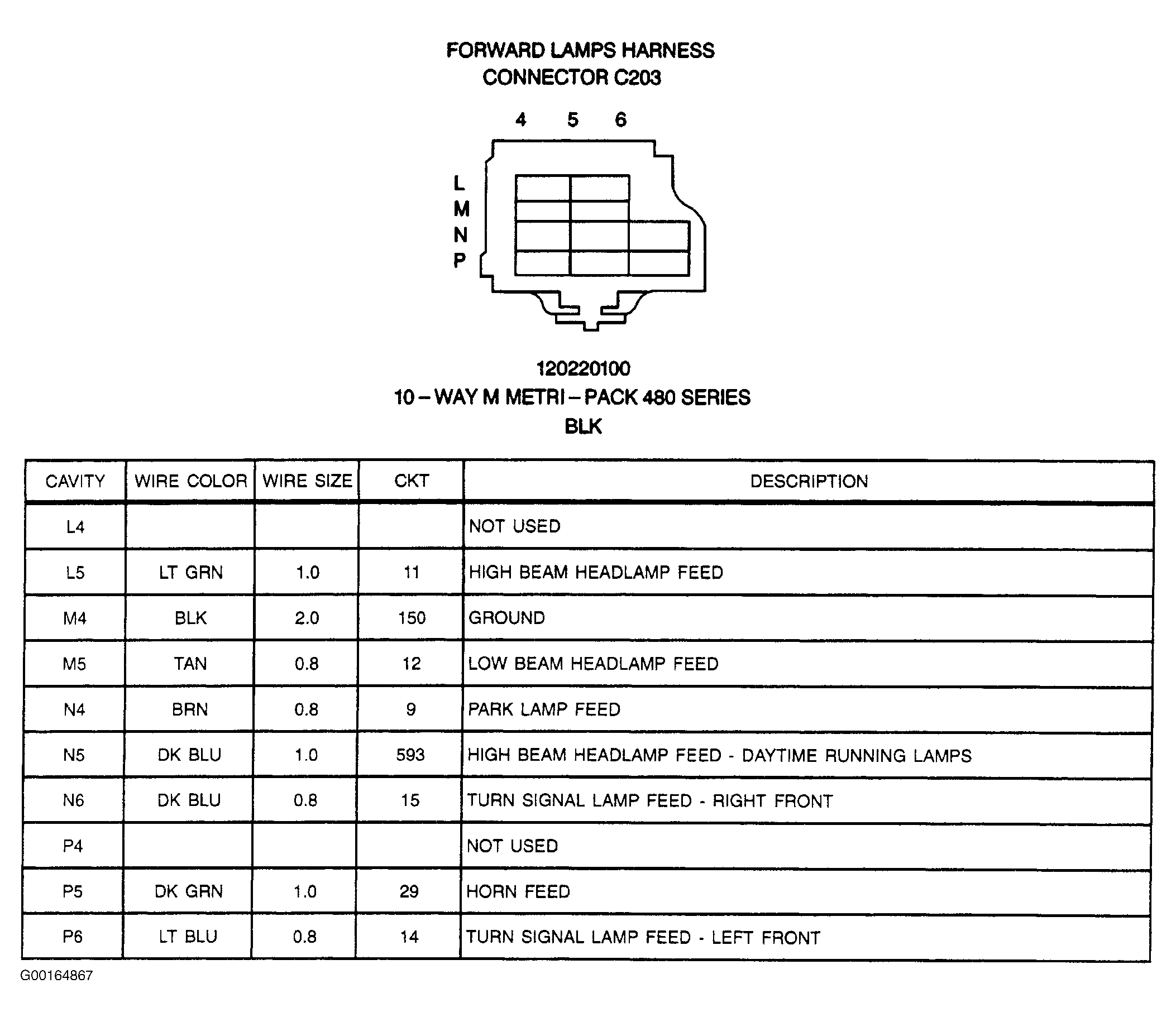

Fig 1: C203 - 10-Pin Connector, Black
G00164867Courtesy of GENERAL MOTORS CORP.
